Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $73.64 | $72.13 | $69.88 | $66.87 | Contact US |
CM4 Mini IO Expansion Board (R3) with Case and CAT4 4G Mini Gigabit Ethernet 1000Mbps for Raspberry Pi 3B+

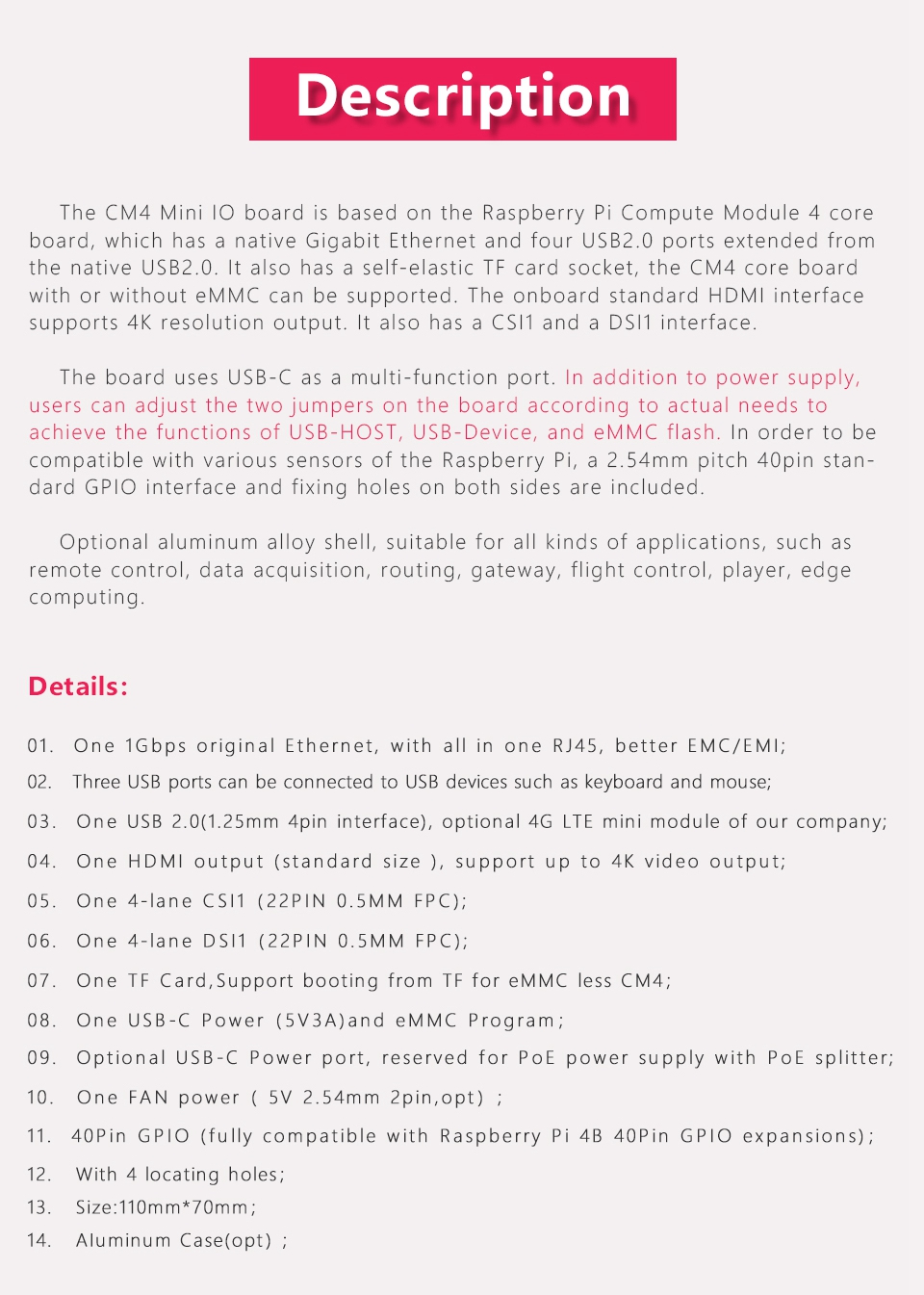

Description:

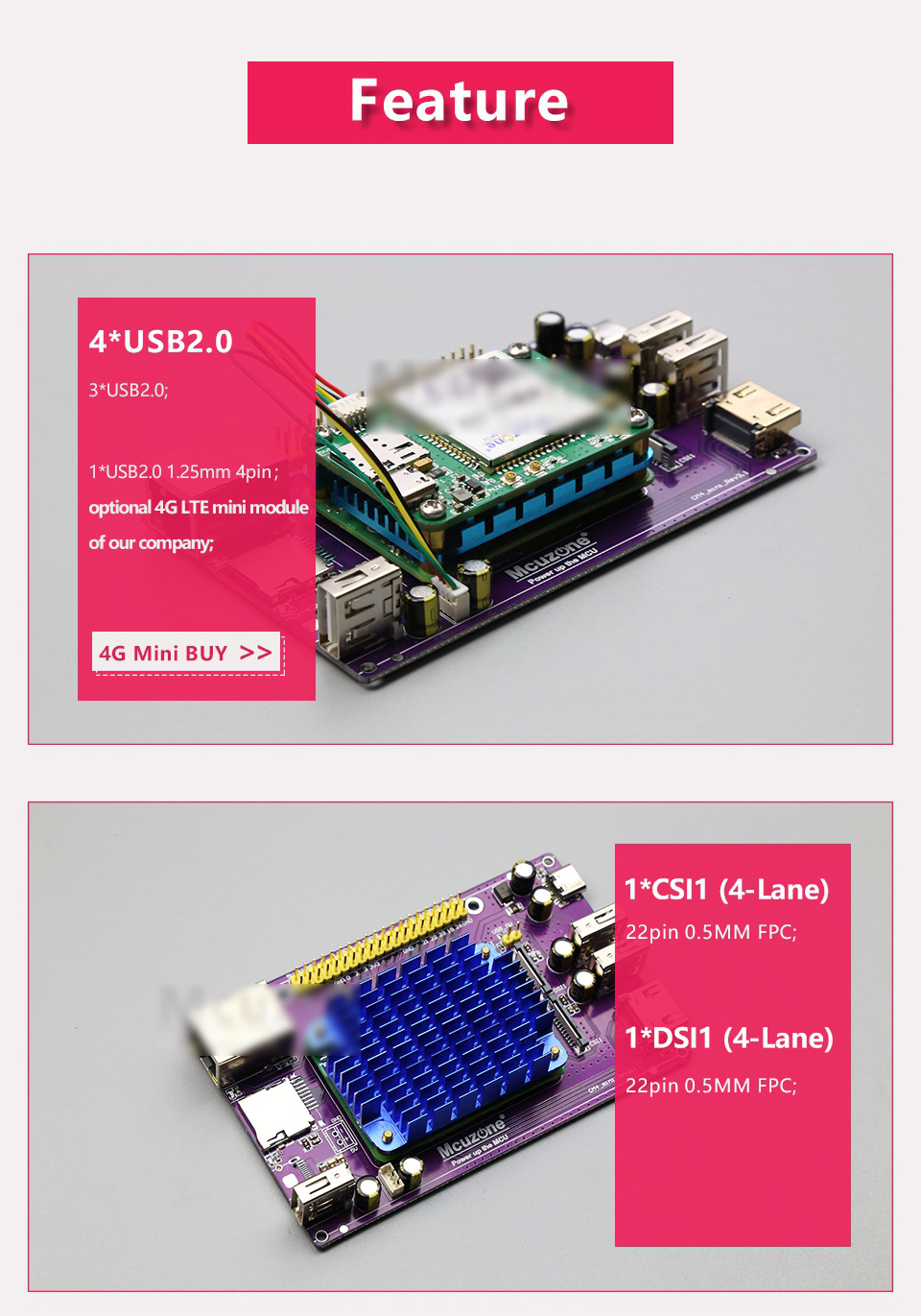

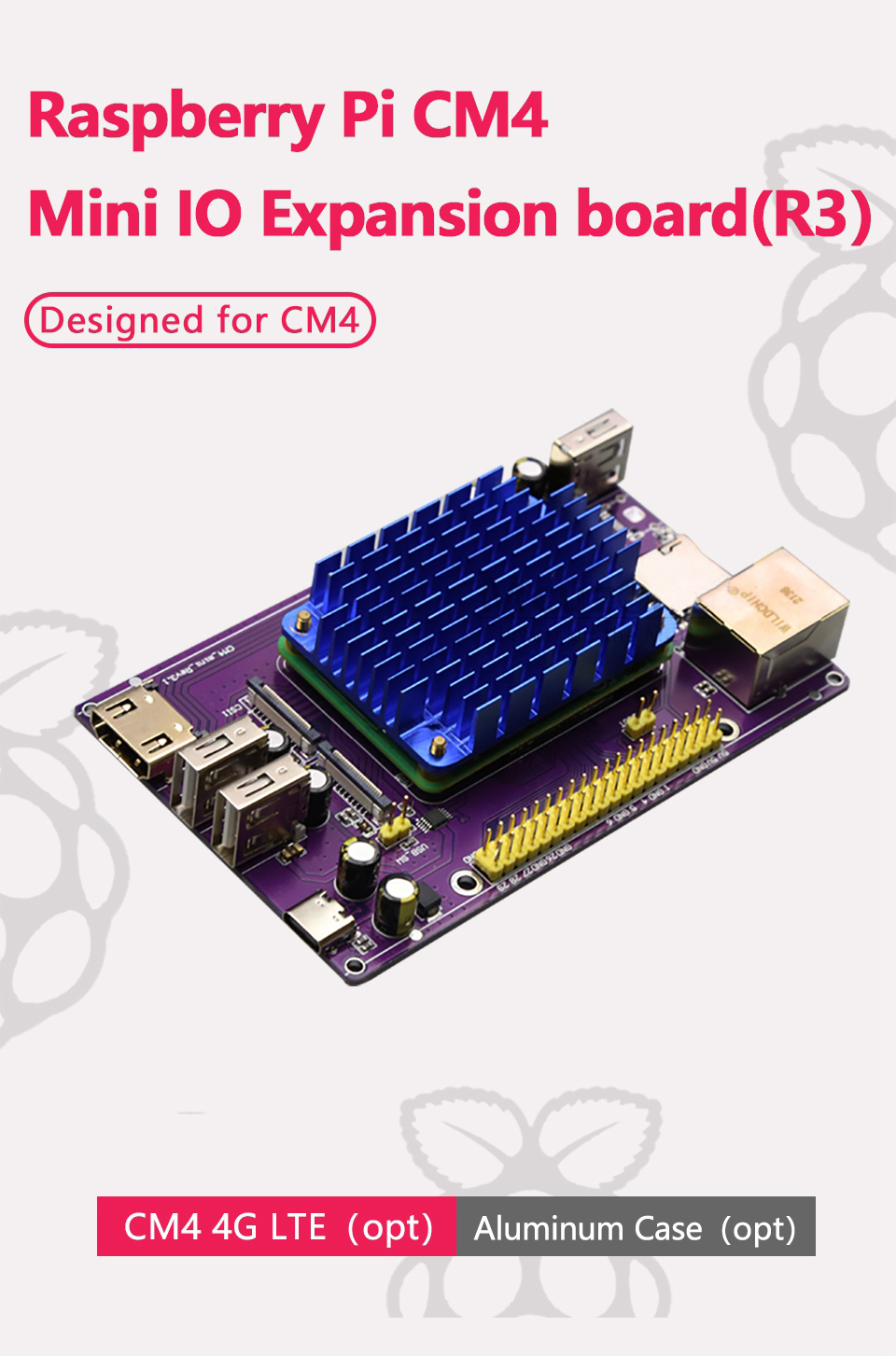

- The CM4 Mini IO board is based on the Raspberry Pi Compute Module 4 core board, which has a native Gigabit Ethernet and four USB2.0 ports extended from the native USB2.0. It also has a self-elastic TF card socket, the CM4 core board with or without eMMC can be supported. The onboard standard HDMI interface supports 4K resolution output. It also has a CSI1 and DSI1 interface.

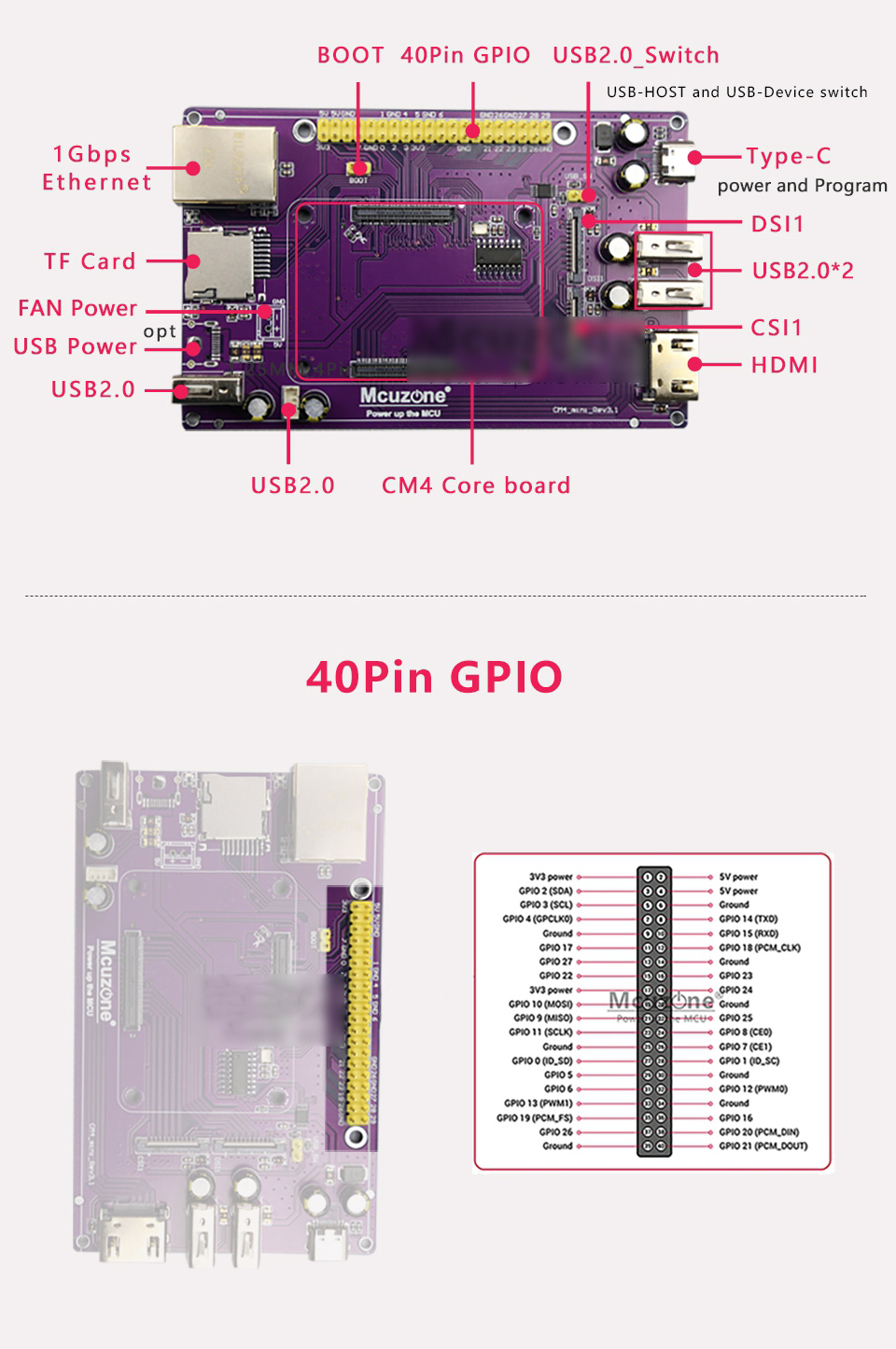

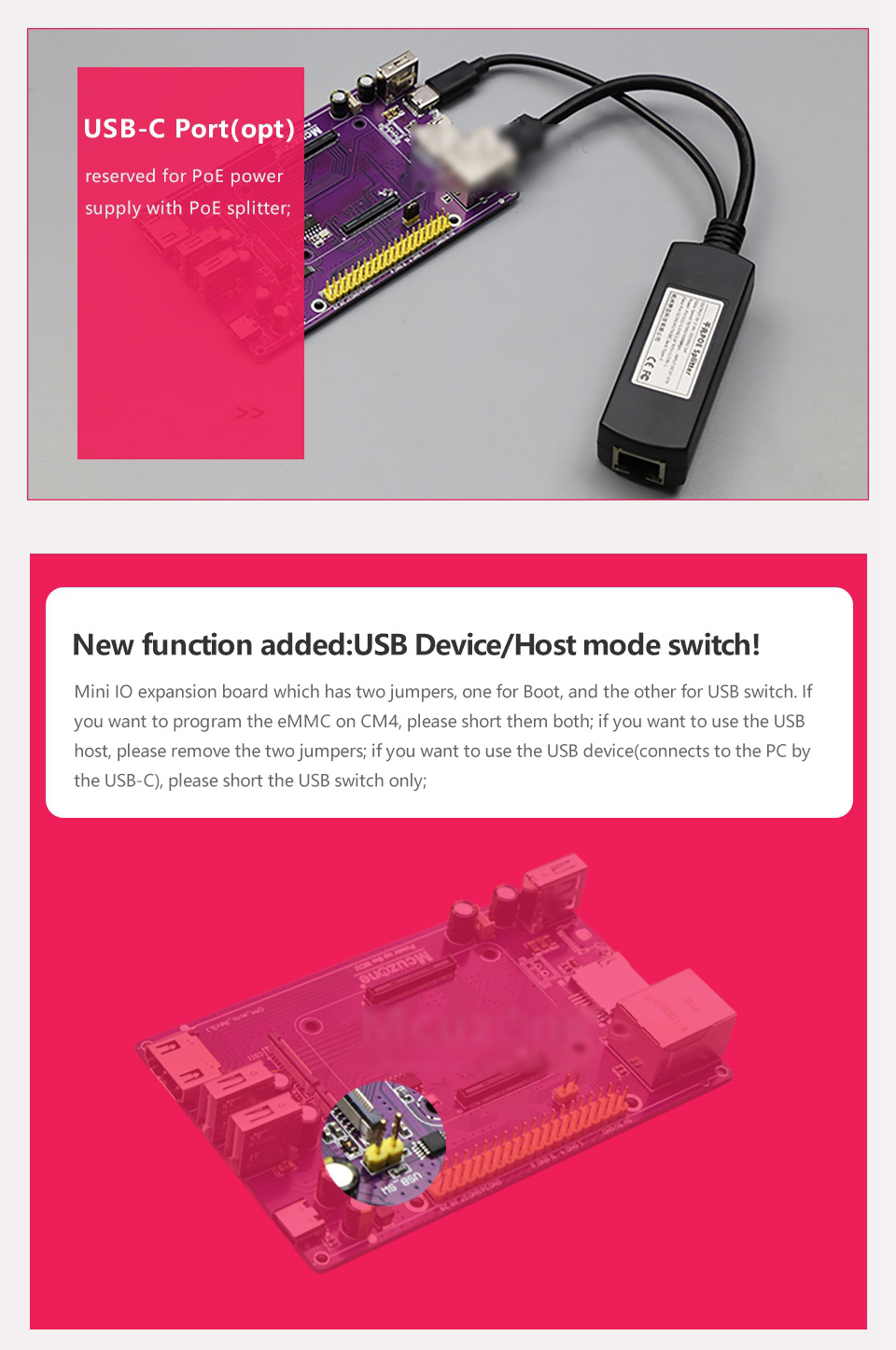

- The board uses USB-C as a multi-function port. In addition to power supply, users can adjust the two jumpers on the board according to actual needs to achieve the functions of USB-HOST, USB-Device, and eMMC flash. In order to be compatible with various sensors of the Raspberry Pi, a 2.54mm pitch 40pin standard GPIO interface and fixing holes on both sides are included.

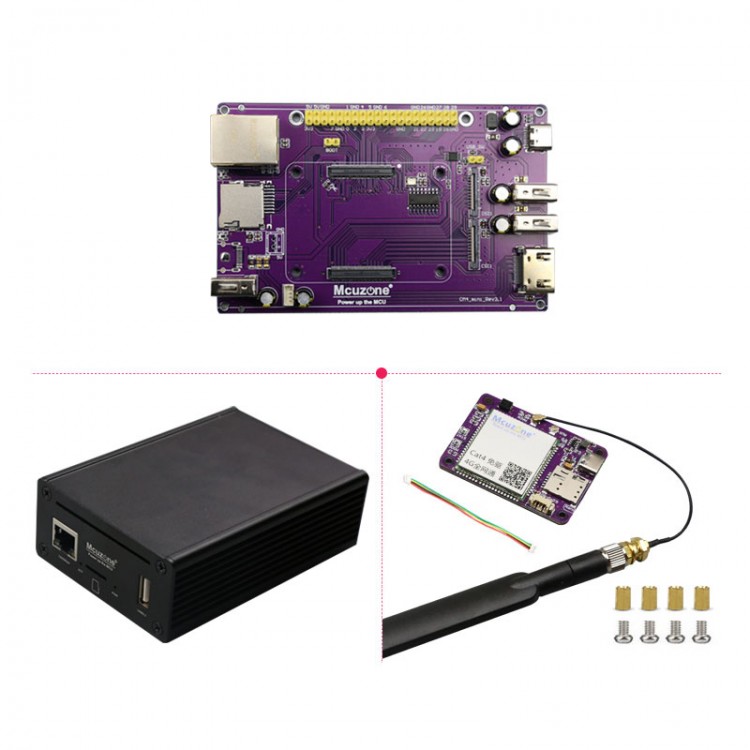

Package Included:
- 1 x Expansion Board

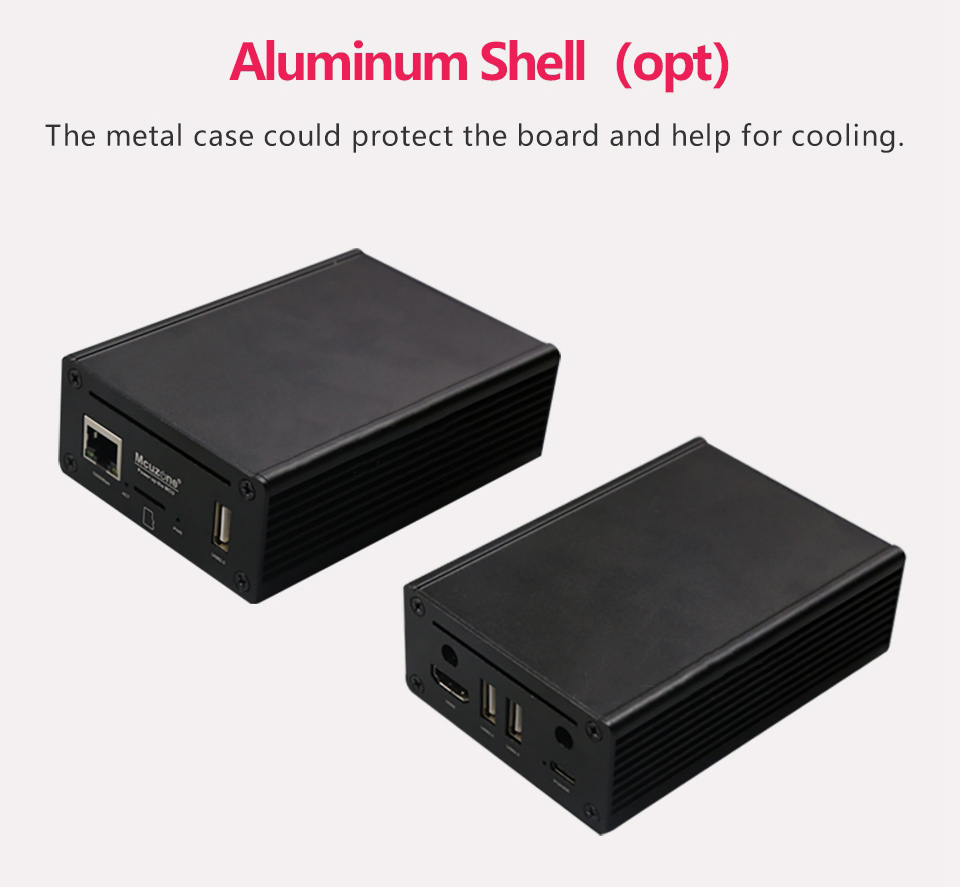

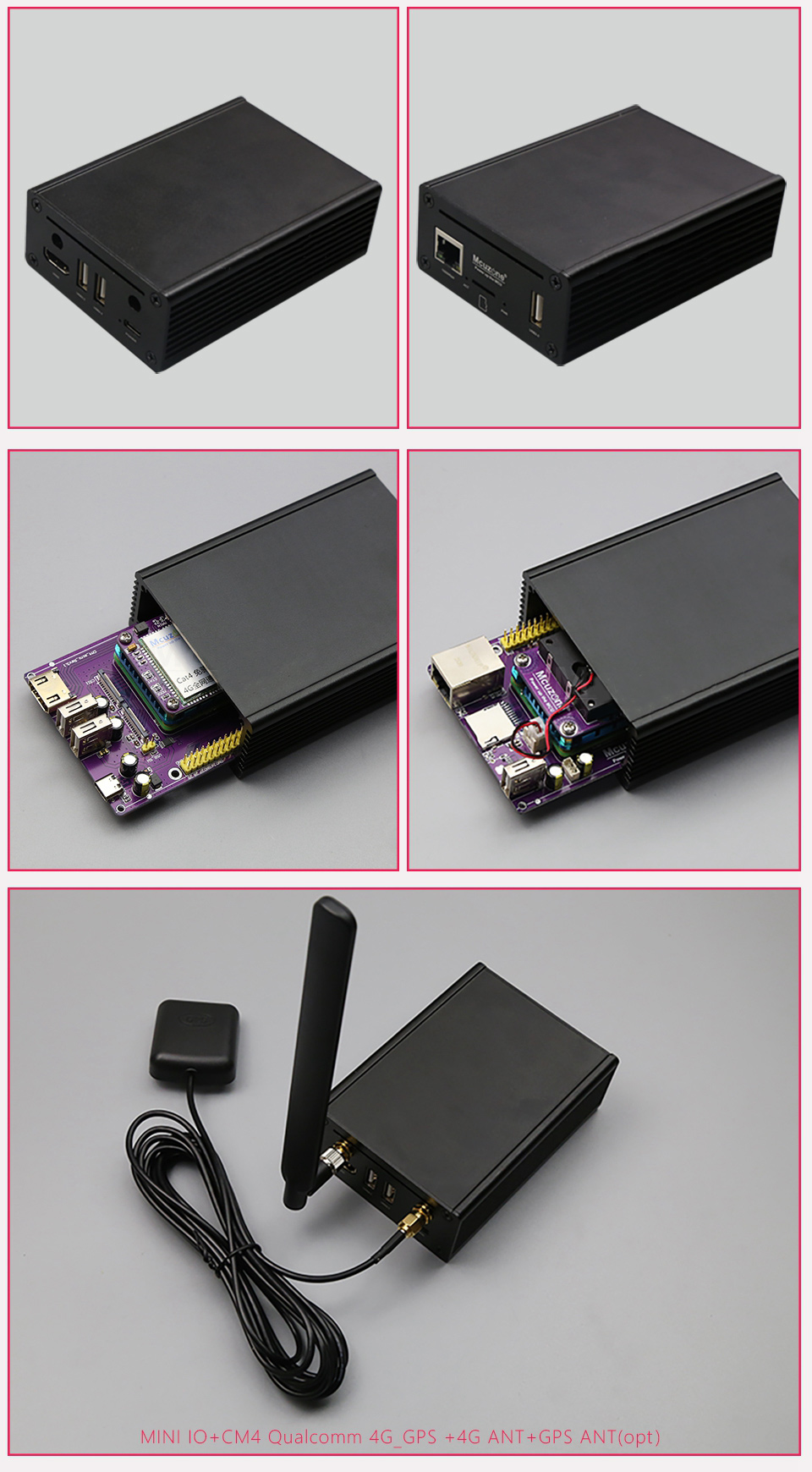

- 1 x Case
- 1 x CM4_4G Mini Kit (CAT4 Drive Free)
- 1 x Antenna
