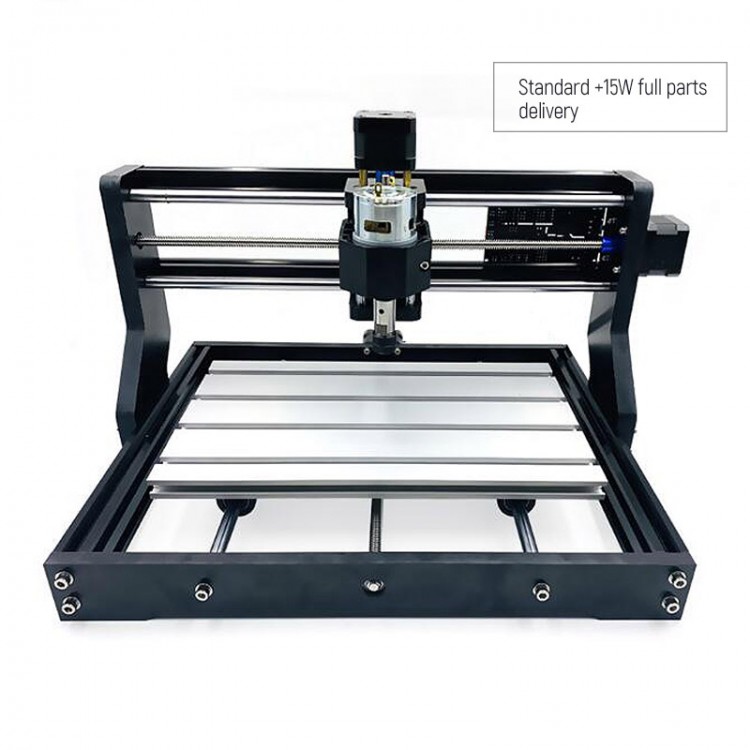

CNC 3018 PRO Laser Engraver Wood Router Machine DIY Engraving Machine GRBL Control w/ 15W Laser
Specification:
Control software: GRBL control
Frame size: 420 x 355 x 280mm
Working range: 380 x 180 x 40mm
Screw rod: T8 screw rod, lead 4mm, double copper nut backlash
Stepper motor: 42 stepper motor 1.3A 0.25N.M.
Spindle: 775 spindle motor (12-36V) 24V 10000r/min
Chuck: ER11 3.175mm (available with 0-7mm)
Body material: aluminum + bakelite plate
Power supply: 24V 5A, (110V-220V)
System requirements: Windows XP, Win7, Win8, Win10, (32/64 are feasible) Linux
Interface: USB
Processing instructions: CNC: G-CODE, TAB, NC, NCC file/laser G-CODE, JPG, Dxf file
Carving materials: plastic, wood, acrylic, PVC, pcb and other soft materials
Material shape: standard shape materials; but cylinders, curved surfaces, non-standard shape materials cannot be engraved
Package List:
-1 x CNC 3018 PRO
-10 x Cutters
-4 Set of Plates
-1 x ER11
-1 x 15W Laser
Note: The product is unassembled and needs to be assembled by yourself.
