Product Description:
- Water-Cooled ER11 collet chuck spindle mootr and inverter VFD.
- ER11 collet chuck water-cooled.Toggle switch.
- 1.5KW water-cooled high speed high precision motor spindle and matching inverter numerical engraving/grinding/milling.P4 gread bearings(international standard)
- Self-leveling rotary laser.Steam generator for bath SPA.
- Adopt Japanese Imported Bearing

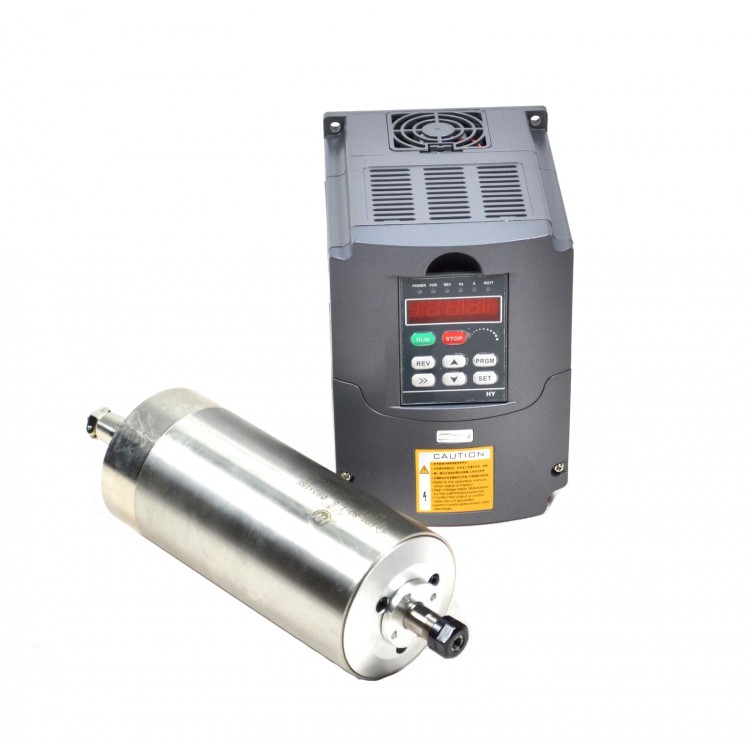

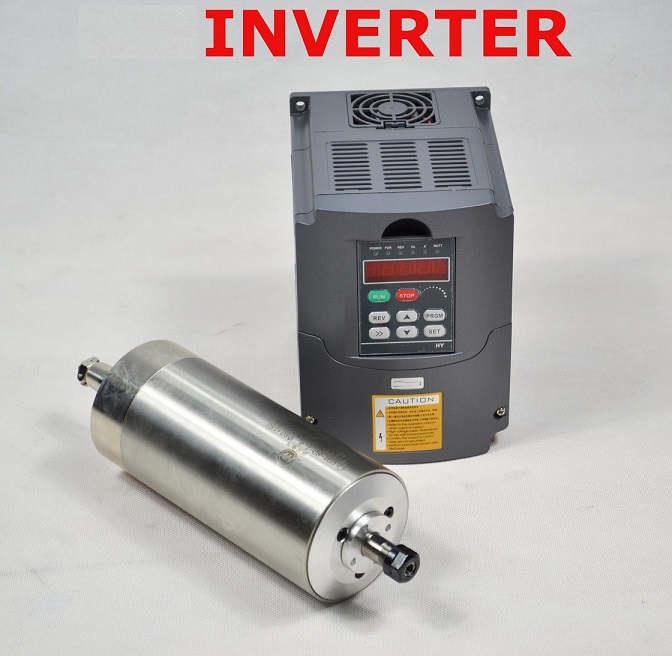

- 1.5KW Water Cooled Spindle motor ER11 + HY 1.5KW Inverter VFD Drive 220V CNC Kit
- Pass ISO9001 AND CE quality certification

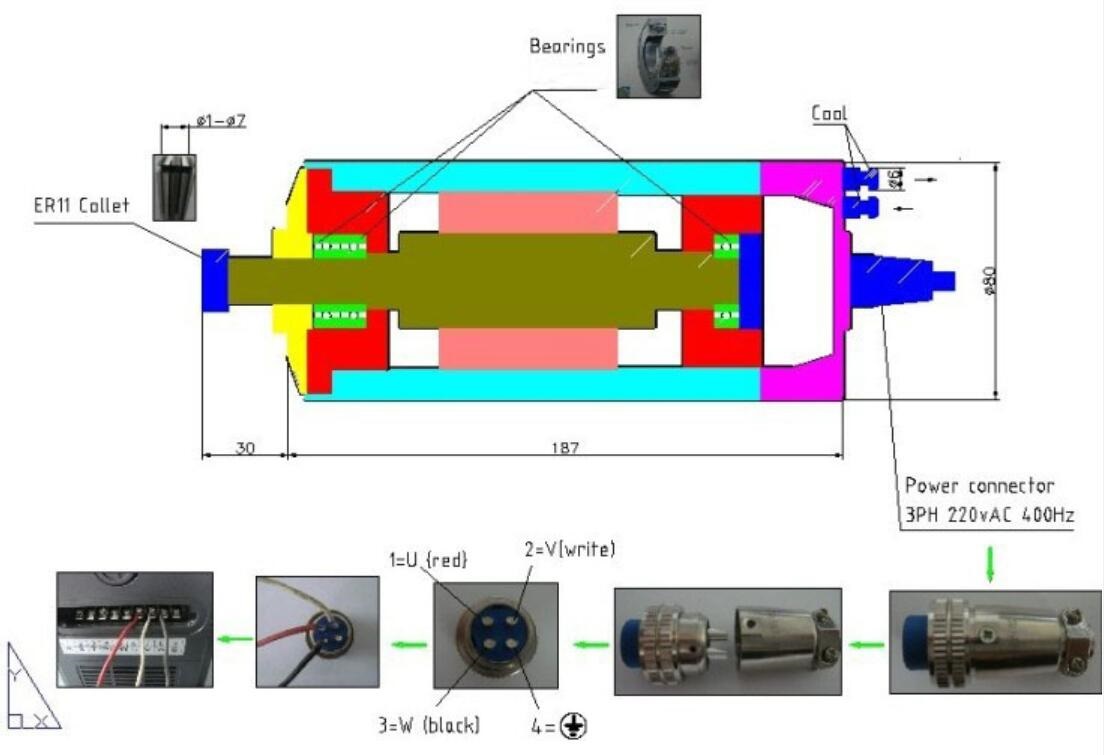

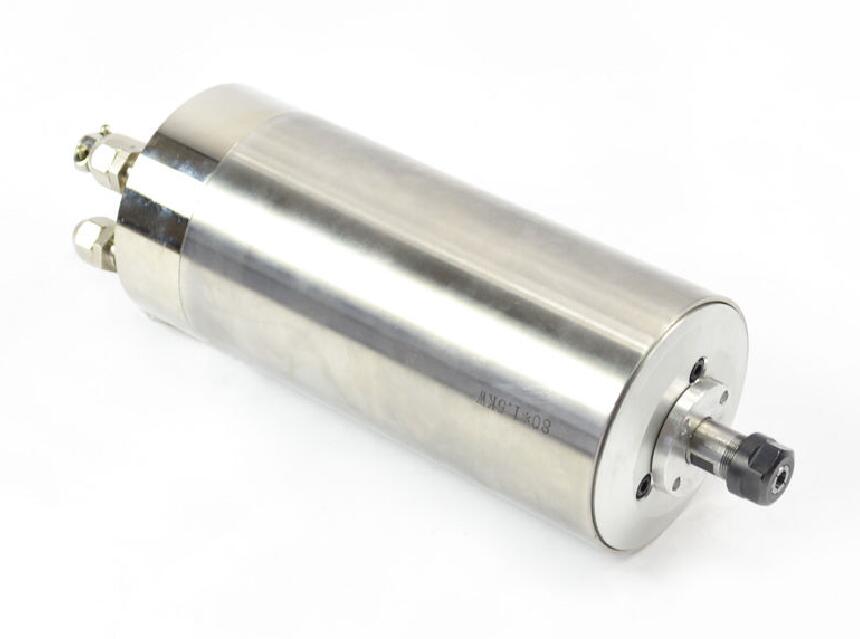

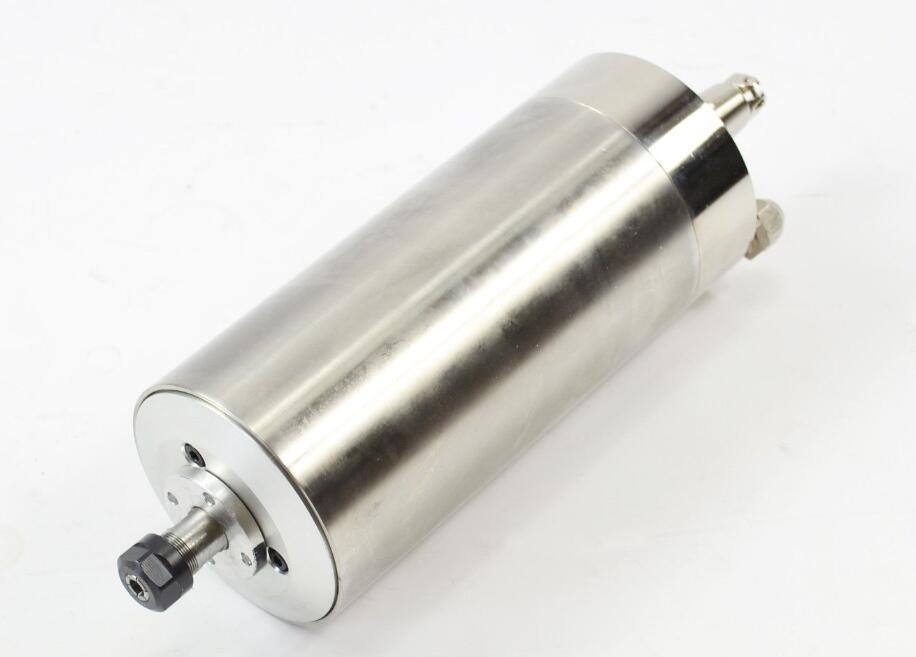

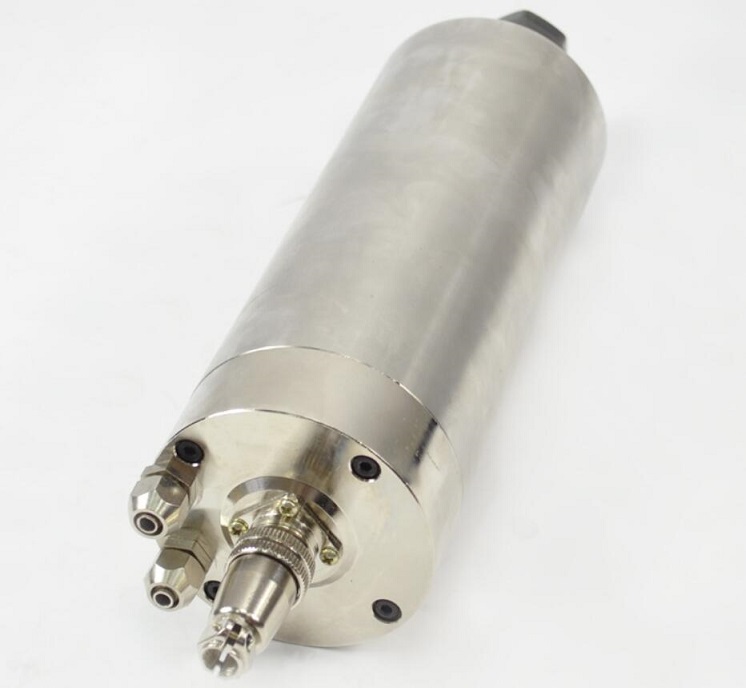

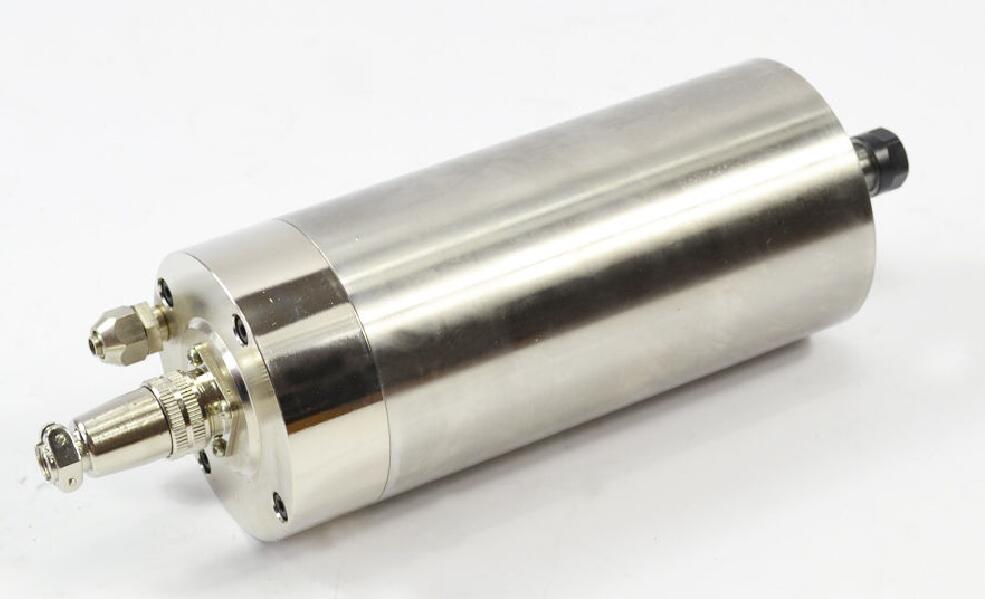

Technical Parameter of 1.5KW Water-cooled Spindle motor:
- Size:80*180mm(Middle body diameter 80*180mm)
- Power:1.5KW
- Voltage:220V
- Frequency:0-400HZ
- Speed:0-24000RPM
- ER11 collet chuck water-cooled
- Runout off:Less than 0.005mm
- Grease lubrication

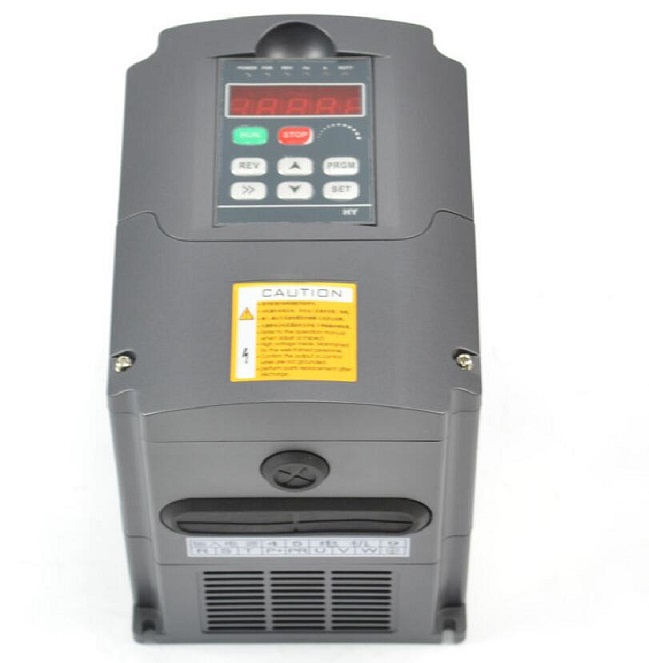

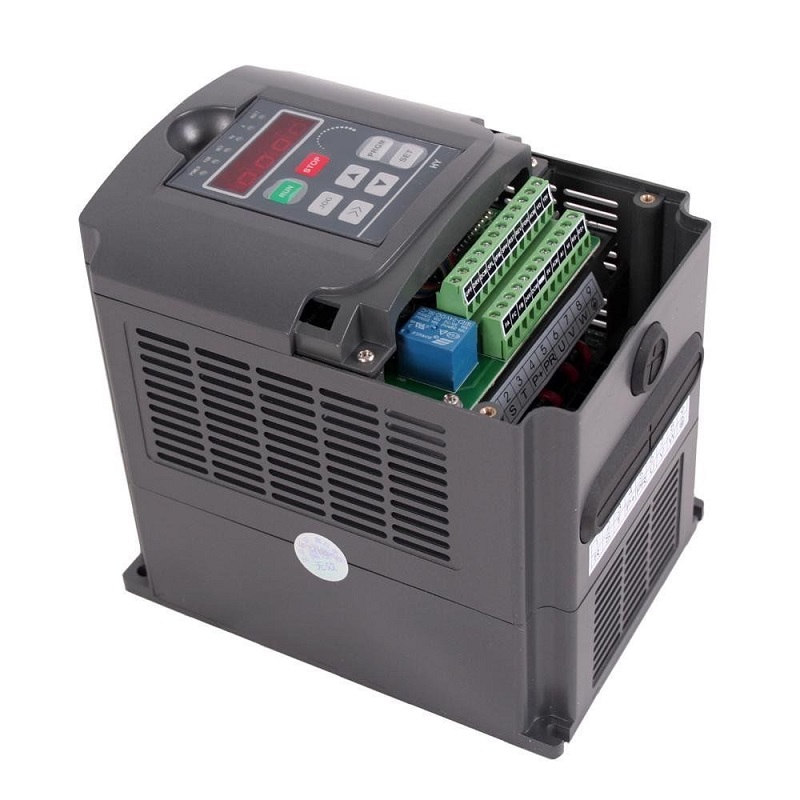

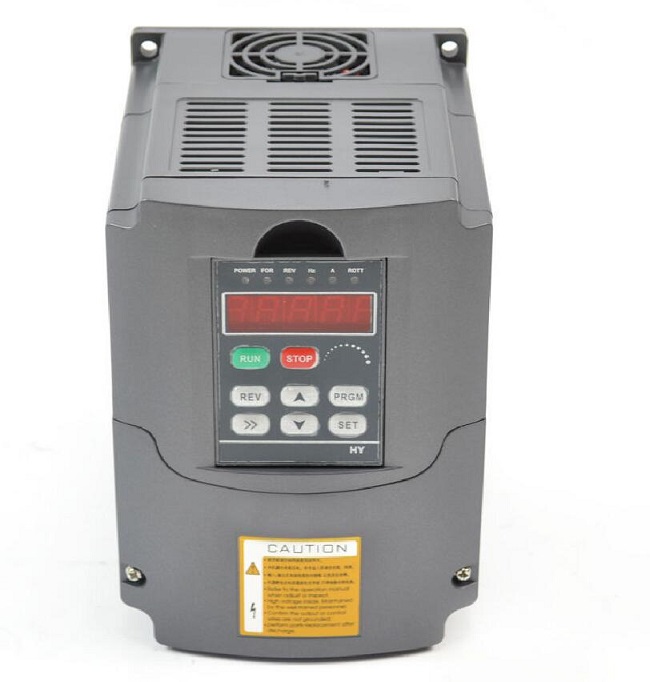

Technical Parameters for 1.5KW Matching with Variable Frequency Drive Inverter:
- Input voltage:220V+/15%(we also stock1.5KW,3KW,4KW,5.5KW,7.5KW inverter,pls contact with us if you need)
- Output voltage:208-240V(Analogous to Input voltage)
- Input Frequency:48-63HZ
- Output Frequency:0-400HZ
- Input Phase:Suit for 1 phase input and 3 Phase input.
- Output:3 Phase
Package included:
- 1 x 1.5KW Water-cooled spindle motor ER11 (220V/AC,400Hz,24000rpm,80mm)
- 1 x 1.5KW 220V/AC Inverter VFD
- 1 x English user manual
