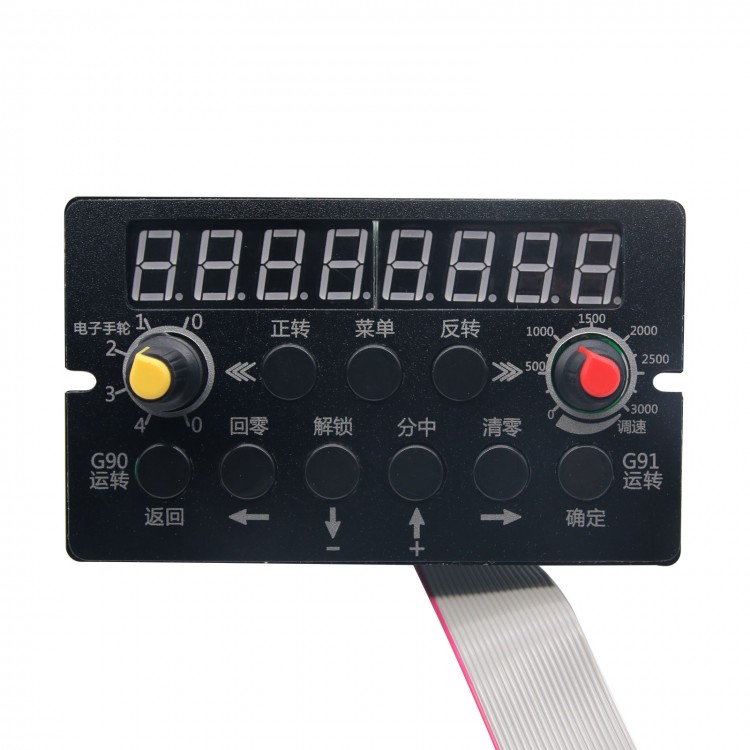

CNC Control Panel CNC Machine Parts for Full Closed-loop Stepper Motor Controller
Description:
- This independent control panel can display the coordinate. With the help of this vehicle, you can adjust the parameters of your closed-loop stepper motor controller and test motors.
- The CNC control panel comes with 0.5m cable
Display Screen:
- 8-Digit Tube Screen: The coordinate position of the current axis is dynamically displayed during normal operation. The coordinate value is accurate to the last 3 digits of the decimal digit. The displayed value ranges from -9999.999 to +9999.999. The displayed value is the pulse received from the encoder. The impulse is used as a basis for measurement, rather than a pulse received from the host computer.
- When entering the menu settings, it will display the menu information and items values.
- When the motor is faulty or wired or set incorrectly, the alarm code information “Er-1~6” will be displayed.
Note: If it is your first time to buy a closed-loop stepper controller, you can get a control panel. After adjusting the parameter of the controller, plug out the cable. And it can be reused again and again. This control panel also matches with our full closed-loop stepper controller.
Package Included:
- 1 x Control Panel
