CNC Engraving 0.4KW Brushless Spindle Motor ER11 & Driver Speed Controller & Mount

CNC Engraving 0.4KW Brushless Spindle Motor ER11 & Driver Speed Controller & Mount

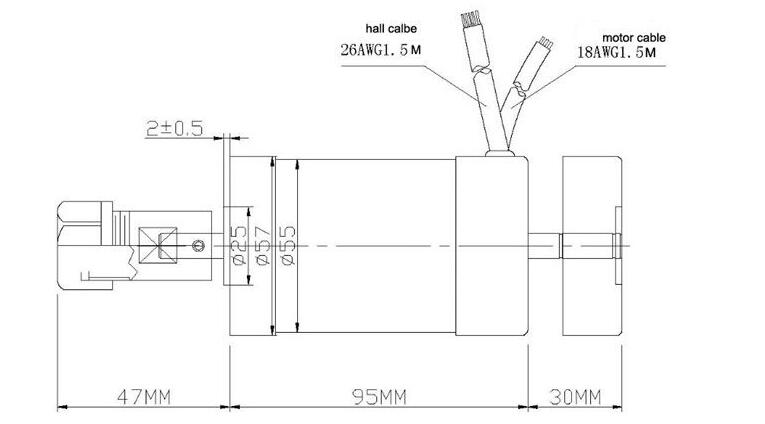

Specification:
- Spindle Motor work voltage: 48VDC
- Rotation speed: 12000r/min
- Power: 400W(peak power 500W)
- Torque:530mN.m
- Insulation resistance:>2Megohm
- Dielectric strength:400V
- Motor Diameter:57mm
- Axis collet Length: 43mm
- Diameter of Axis collect holder:16mm
- Repeat accuracy: 0.01-0.03mm
- ER11 collect: 3.175mm
- Net weight:1.1KG
- For engraving machine

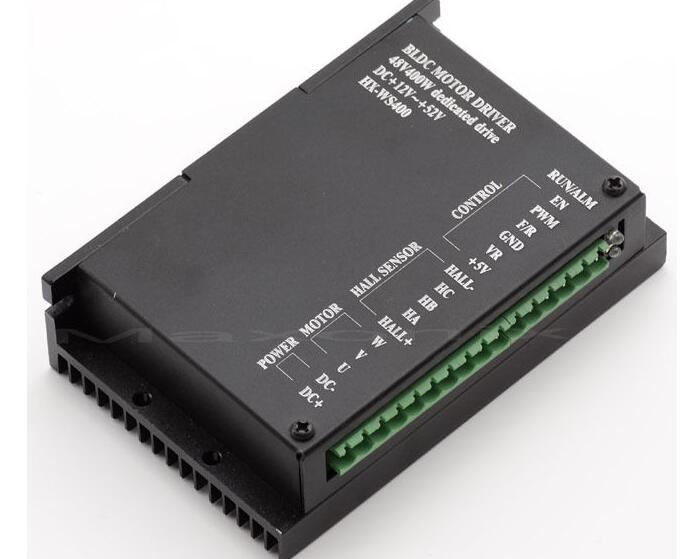

Brushless DC speed driver controller:
- speed driver controller working voltage: DC12-52V
- Driver current: Rated current 10A, Peak current 15A.
- The drive power: ≤ 500w (up to working voltage)
- Speed/Current alike close loop technology, smooth rotation
- Pure hardware design, high-speed, high noise immunity
- Speed regulation: external potentiometer adjust, 0-5V analog voltage , PWM speed control (MACH3 control)
- F/R(forward / reverse control) Rotation, soft shift function
- Over current, short circuit protection (red LED indicator)
- EN( enable control) function

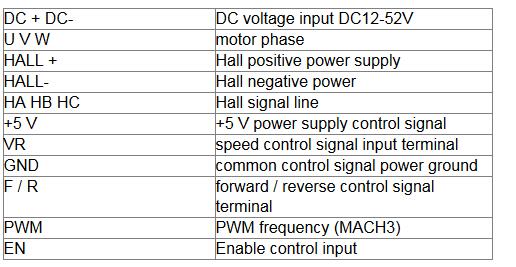

Function description:
Speed regulation choice
- Potentiometer speed regulation: You can control speed directly through potentiometer ）
- Analog control:VR connect to voltage signal input.GND connect to ground (voltage range of 0-5V) (Notice. When you use external PWM signal speed control, you must be remove the potentiometer control. Otherwise, it will not working)
- PWM signal control: you can input an external PWM signal to speed control. it requires external PWM: level 3.5-12V VPP, frequency 1K-10KHZ, which suitable for MACH3 spindle speed control.(Notice: external PWM signal control necessary to remove the potentiometer , or it can not control).
 - Motor Run/Stop（ENBL）: EN terminal is applied to control motor Run / Stop. Motor is running When EN is floating. Motor stop running when EN connect to GND terminal.
- Motor forward / reverse control (F / R) : F/R terminal is applied to control motor rotate direction. motor run clockwise when F/R is connecting +5V,otherwise motor will reverse.

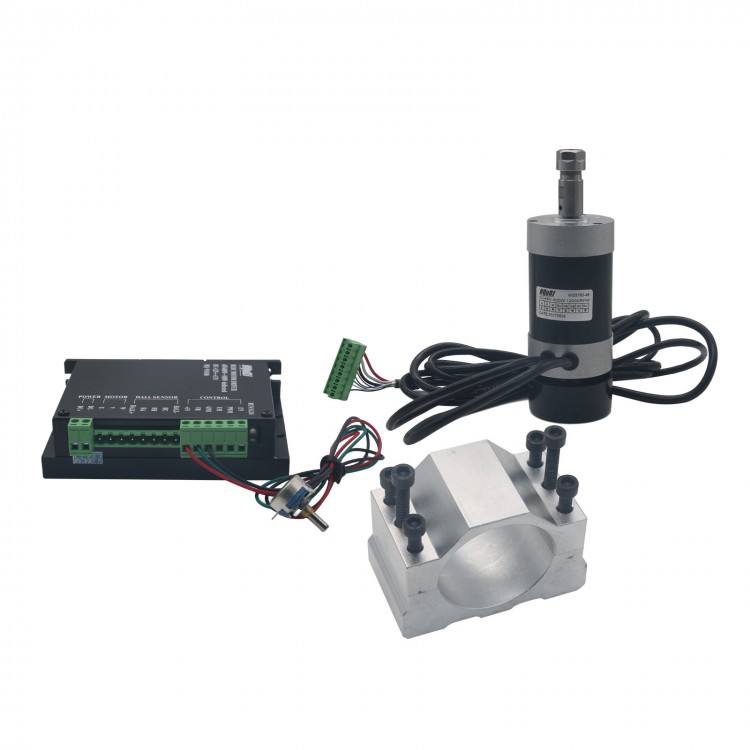

Package Content:
- 1 * 400W spindle motor with with ER11 3.175 collet
- 1 * Mach3 PWM speed controller

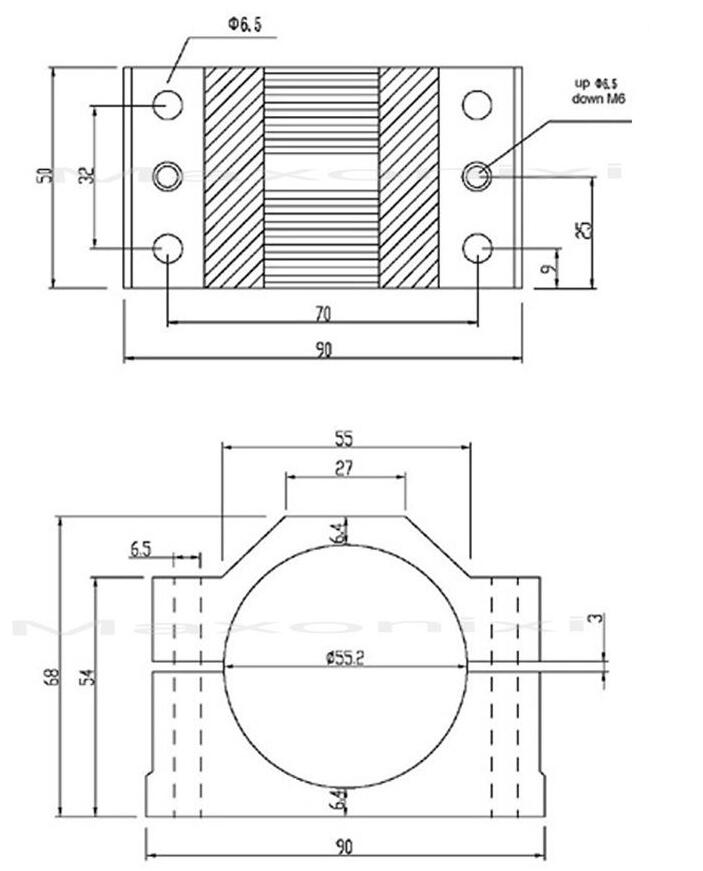

- 1 * Mount bracket with screws
