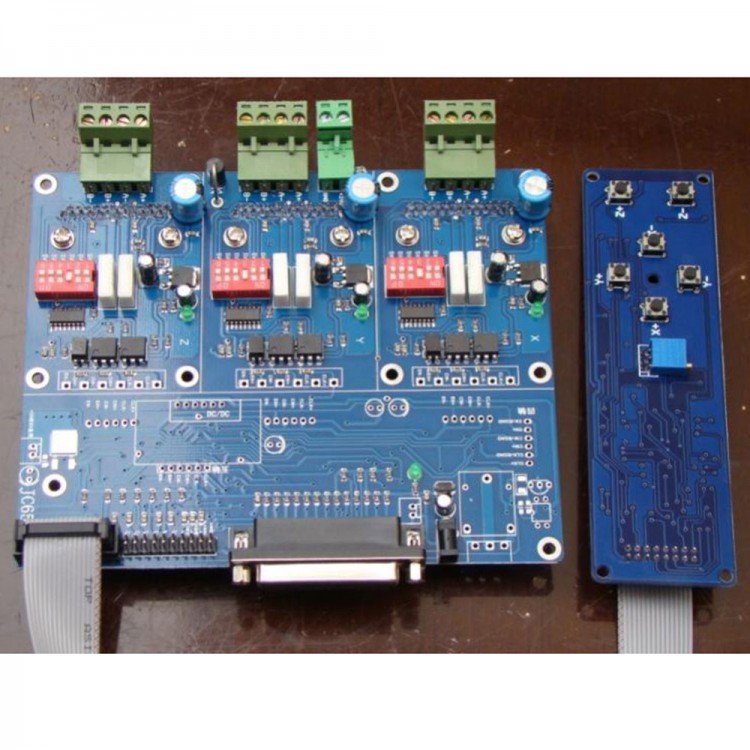

CNC Engraving Machine 3-Axis Step Motor Driver Control Board Key Board TB6560 with Radiator for Mach KCAM EMC
Description:
- Working voltage DC 10V-40V. DC24V/10A power supply is recommended.
- For mach2/mach3 /emc/ /KCAM
- Output standard 3-axis drive, 4 axis port and emergency stop port
- The control part and driving part of the high-speed optocoupler isolation. Prevent mutual interference
- The driver board with a large number of 74HC series chip amplifying and shaping of parallel signal, the output level of stable performance improvement
- The stepping motor is driven by the original TB6560 chip, DMOS internal double H bridge (FET).
- Rated maximum output: + -2.5A, 35V, low output impedance, the source 0.5 ohm, receiver port 0.4ohm
- Suitable for 86, 57tep motor and less than 3.5A step motor , not for over 3.5A step motor
- Automatic half flow attenuation.
- Subdivision: full step, half step, 1/8 step, 1/16 step, maximum 16 subdivisio
Package included:
- 1 x Step Motor Control Driver board
