CNC Engraving Machine Controller TB6560 Stepper Motor Driver with Radiator for Expansion 4 5-Axis

CNC Engraving Machine Controller TB6560 Stepper Motor Driver with Radiator for Expansion 4 5-Axis

Description:
- Working voltage DC 12V-40V
- Note: This drive logic power quad independent power supply, the LM2575 to the switching regulator +3 ST78M05
- Applies software mach2, mach3, emc, KCAM.,
- Output standard three-axis drive, and 4-axis 5-axis expansion port and emergency stop port,can expand to the 5-axis
- Control part and the drive part of the high-speed optical coupling is completely isolated. Prevent mutual interference.
- The driver board with a large number of 74HC series chips for parallel signal amplification shaping, the output level stable performance.
- Stepper motor driver TB6560 new original chip internal DMOS dual H-bridge (FET).
- Rated maximum output: ± 3A, the 40V peak 3.5A, low output impedance, the source end 0.5Ω receiving end 0.4Ω, low voltage shutdown, thermal parking circuit and Circulation protection.
- Suitable for stepper stepper motor 3.5A or less, and is not suitable for more than 3.5A stepper motor.
- Semi-automatic flow attenuation.
- 16 segments: whole step, half-step, step 1/8, 1/16 step-by-step, the maximum 16 segments.

TB6560AHQ driver chip advantages:
- Small motor vibration, low noise: because the chip comes with to 2,8,16 subdivision, sufficient to meet the application requirements per minute from a few to nearly turn, and automatically generates a pure sine wave. Control current, compared with other highly integrated chip, at the same high speed torque not only not decreased but increased; TB6560AHQ chip can withstand the driving voltage of the peak value of 40V, the peak current of 3.5A, a large torque motor provide technical support, high-speed continuous running.
- Embedded drive less heat: sufficient cooling area of the chip comes with a separate support small current-driven cooling requirements.
- Support various 3.5A stepper motor selection: Customers can choose torque slightly larger hybrid or permanent magnet stepper motor, and the motor to allow for between 30-50% of the maximum torque, the motor cost almost the same; chip multi-file current settings and current decay mode, support for various parameters of the stepping motor in the same power index.
- Embedded drive volume compact and easy to heat: high current drive, the cooling surface of the chip to facilitate connectivity radiator can also be directly connected to the user's original controller on the metal casing, embedded drive compact, easy to heat.
In short, due to the high degree of integration of TB6560AHQ chip peripheral circuits is extremely simple, high reliability, wide speed applications support the stepper motor 57 and part of 86 per minute from a few dozen to nearly a thousand rpm

Using in the  high-speed system :
High-speed operation of the system, high clock frequency, high current drive-based systems, such as speed to nearest thousand rpm per minute under the conditions of such application, such as the use of the traditional driver
Either due to the breakdown of integrated chip is too low, leaving the system speed range is too small; either excessive increase due to the breakdown of high cost, may also occur vibration and noise caused by high frequency torque down

Package included:

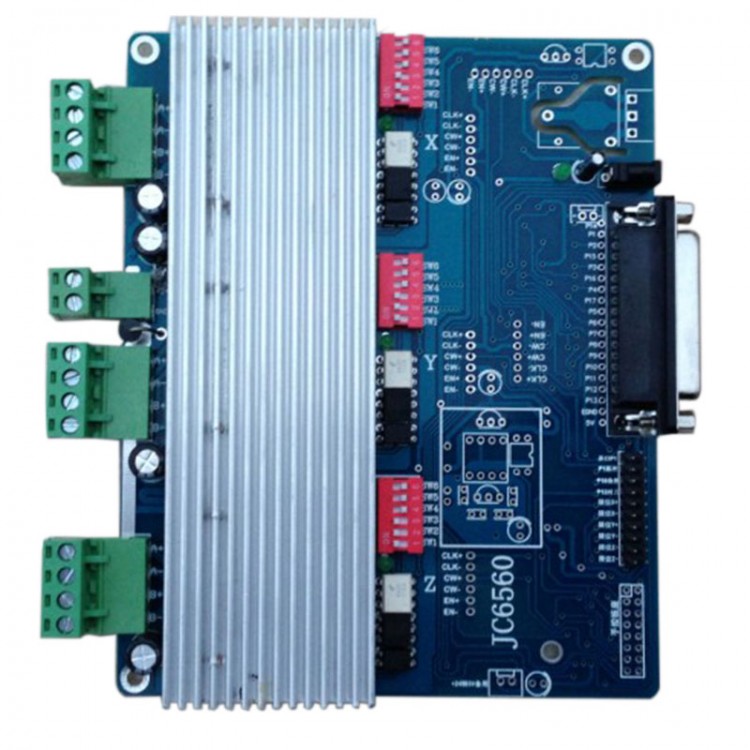

- 1 x Control Board
