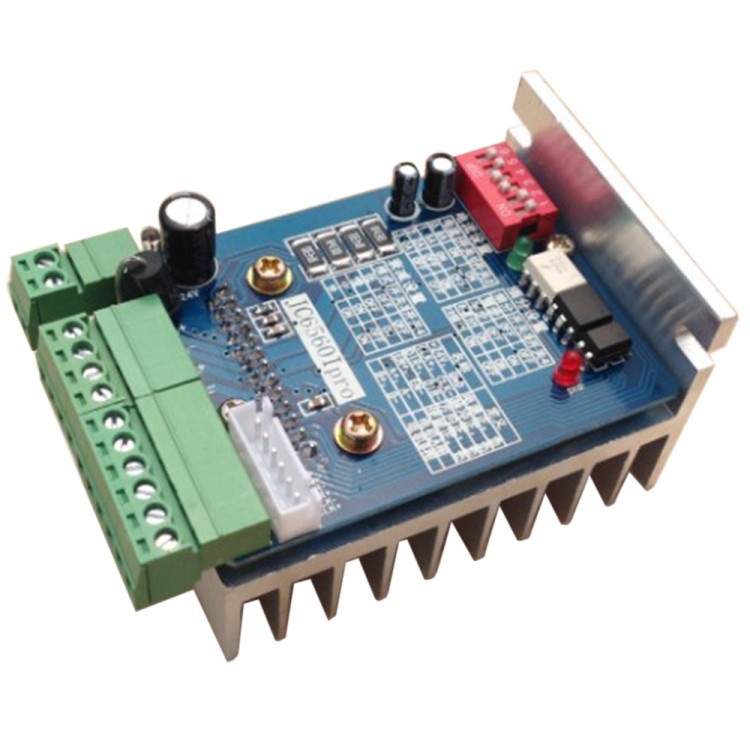

CNC Engraving Machine Stepper Motor Driver Board TB6560 Single Axis 3D Print Controller
Description:
- Working voltage DC 12V-40V.
- High speed optocoupler isolation input, complete isolation to prevent mutual interference.
- Original chip TB6560, the internal DMOS tube, (field effect tube).
- Rated maximum output is: +- 3A,40V, peak 3.5A, low output impedance, source 0.5Ohm , receiver 0.4Ohm
- Suitable for 42, 57, 86 step motor within 3.5A 2 phase/4phase/4 tvl/6tvl step motor, but not for over 3.5A ones
- Automatic half flow attenuation.
- Current regulation using potentiometer 0-3.3A no pole setting current.
- Subdivision: the whole step, half step, 1/8 segments, 1/16 segments, the maximum 16 subdivision.
- Dimension: 50* 73* 30 (MM)
- Protection function, full protection drive, over current protection, overload protection, short circuit protection, fault phase protection, fault line protection, over heat protection, under voltage protection, reverse protection
Package included:
- 1 x Step Motor Control Driver board
