CNC ER11 48V 400W Air-Cooled Brushless Spindle Motor + Motor Driver Controller + Power Supply

Availability: In stock, usually dispatched in 1 business day

  • Price:$173.43
  • Price in reward points: 1734 Reward Points: 17
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $169.96 $166.49 $161.29 $154.35 Contact US
Quantity:

CNC ER11 48V 400W Air-Cooled Brushless Spindle Motor + Motor Driver Controller + Power Supply

Brushless Spindle motor Feature:

- Brushless, low interference, eliminating the spark operation, greatly reducing the spark interference to radio remote control device.
- Low noise, smooth operation
- Long life, low maintenance costs
- It can be used to engrave metal or non-metal and other materials.
- The Brushless spindle motor comes with forced air cooling,  can work long hours

Brushless Spindle motor Parameter :
- Operating voltage: 48VDC
- Power: 400W
- Speed: 12000r / min
- Torque: 0.5294 (N.m)
- Insulation resistance:> 2 megohms
- Dielectric strength: 400V

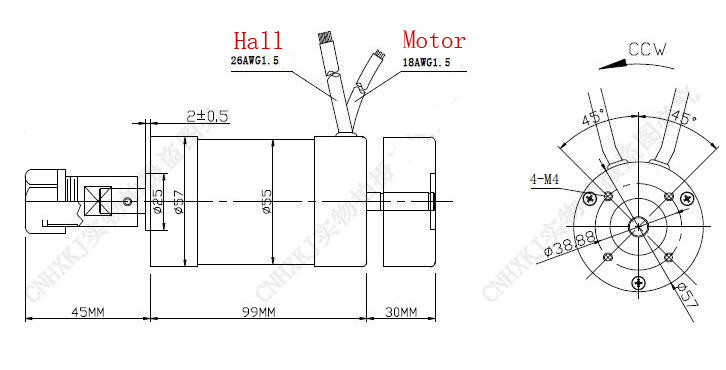

- Motor Diameter: 57mm (fixed body parts to 55mm)
- Motor output shaft: 10mm
- Collet: 3.175mm
- Collet length: Arbor parts 35mm, (including the nut and sandwich 43mm)
- Collet part of diameter: 16mm
- Motor Overall Length: 174mm (including the holding portion and the motor)
- Spindle motor Weight: 1.22KG
- Spindle radial pulsation: about 0.01-0.03.

Brushless DC (BLDC) motor controller:
- Model: HX-WS400 motor driver / controller
- Working voltage: DC18V-DC52V
- Drive current: Rated 1OA, peak 15A.
- Drive power: ≤500W
- Closed loop steady speed, large load speed of the motor can still maintain
- Pure hardware design, high speed, high noise immunity
- External potentiometer control, 0-5V analog voltage and PWM speed (MACH3 control)
- Reversible control, soft switching function
- Over current and short circuit protection indicator (red light)
- With EN enable control

Name Description
- DC + DC- :voltage input DC18-52V
- U V W :motor phase
- HALL + :  positive power supply
- HA HB HC:     Hall signal line
- HALL- :Hall negative power supply
- + 5V : power supply control signal
- VR :speed control signal input terminal
- GND :common ground power supply control signal
- F / R :Forward / Reverse control signal terminal
- PWM :PWM frequency (MACH3)
- EN :Enable control input

Speed Control
- Default potentiometer speed control can be carried out directly by the rotation speed potentiometer
- Analog control, VR pin is connected to a voltage signal input terminal, GND pin to ground (voltage range 0-5V) (NOTE external voltage signal control necessary to remove the potentiometer control takes effect, whether the person can not control)
- You can use an external PWM signal input speed control, external PWM input requirements: level 3.5-12V VPP, frequency 1K-10KHZ, suitable for MACH3 spindle speed control, (note the external PWM signal control necessary to remove the potentiometer control to take effect, whether the person can not control).
- Motor Run / stop control (EN)
- Control terminal EN relatively GND-off can be controlled and the motor stops running. EN pin is floating the motor is running, when the GND terminal is connected motor stops.
- Motor forward / reverse control (F / R)
 - Control F / R and + 5V on-off control the running direction. When the F / R and + 5V is not activated, the motor is running counter clockwise, otherwise the motor running in a clockwise direction

Power Supply
 - Input voltage: 50/60HZ AC110/220V, can be switched, global universal
 - Output voltage: DC48V
 - Output power: power 400W with temperature control cooling fan
 - Power net weight: 0.9KG
 - Power size: length 215* width 115* hight 50

Package List:
- 1 x 400W Brushless spindle Motor
- 1 x Controller
- 1 x Power Supply
