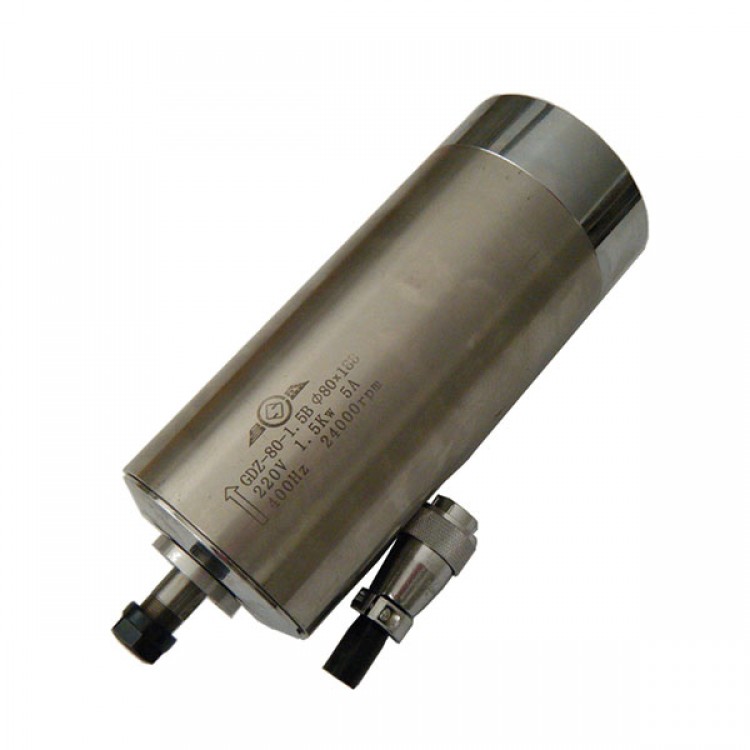

CNC High Speed 1.5KW Water-Cooled Spindle Motor ER11 for CNC Router Engraving Milling
Specification:
- Φ80mm x Length:188mm (including air interface: Φ80mm X 203mm)
- Power: 1.5 KW
- Voltage: AC220V
- Frequency: 0-400 Hz
- Max Rotation speed: 24000 R/min
- Chuck: ER11 collet chuck
- Cooling mode: water cooling mode
- Coaxiality: 0.025mm
- Radial runout: 0.01mm
- The speed of adjustment: 0-24000 stepless speed control can be achieved through the inverter to adjust the output voltage and operating frequency,
- Lubrication: high temperature grease lubrication
- Power Interface: Selection of the GX16 Waterproof interface, within the 1,2,3,4 label, 1,2,3 respectively connected to the drive power supply (U, V, W), 4 connected to the inverter ground
