CNC Laser Control Board Laser Controller Board 3 Axis CNC Controller For GRBL USB Connection

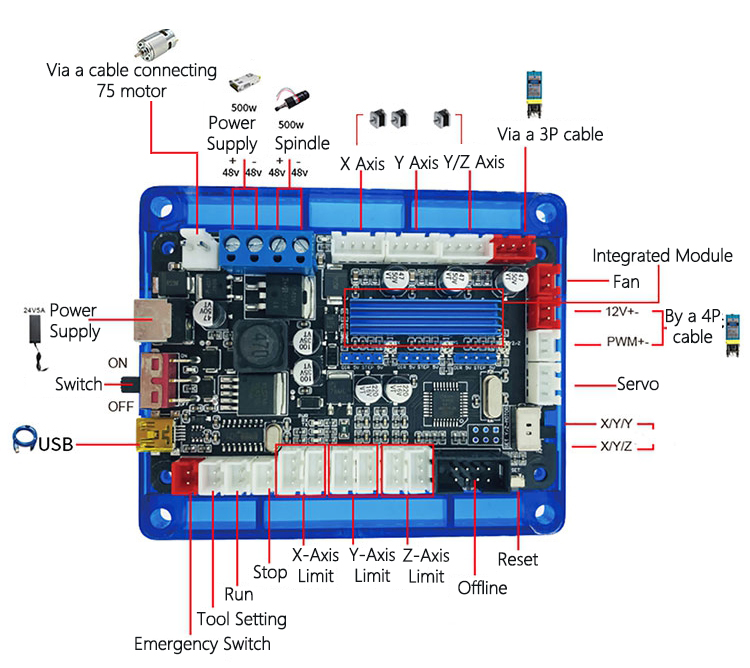

Upgraded Controller Board:
- Integrated driver can prevent chip from short circuit, with integrated heat sink and fan for better heat dissipation effect
- Support: offline controller, external high-power driver, emergency stop, reset, continue, pause, limit switch interface. It can meet different needs
- Both data transmission chip and main control chip use an external crystal oscillator, enabling more stable transmission and excellent performance
- Exquisite appearance. Acrylic shell protects the main board. Can be used for laser engraving machine, CNC engraver machine, etc.
Software:
1. Can use offline control engraving
2. GRBL1:1 firmware boasts stable performance
3. Spindle supports PWM power 0-100% adjustable
4. Stepper motor overcurrent protection to avoid damage. Upgrade integrated stepper motor drive with 2A high current and high stability
5. Easy and convenient to use. Laser directly begins to engrave, requiring no programming or design
6. Its shell and fan ensure better heat dissipation performance
7. Laser: support TTL/PWM control and 0-100% adjustable power
8. Support software: For Candle (3 axis); for laser GRBL (laser)
9. System support: for Windows XP; Windows 7/8/10
10. Spindle: 0-48V, 0-500W
Attention:
1. Spindle motor and laser cannot be connected at the same time.
2. Offline control board and a SUB data line cannot be connected at the same time.
3. Turn on a power supply after connection is complete.
4. The positive and negative poles of input power supply must not be connected reversely, as the reverse connection will cause burns.
5. 48VDC interface cannot be connected to a switching power supply, and the voltage that can be transmitted through the DC socket of the control board cannot be greater than 5A.

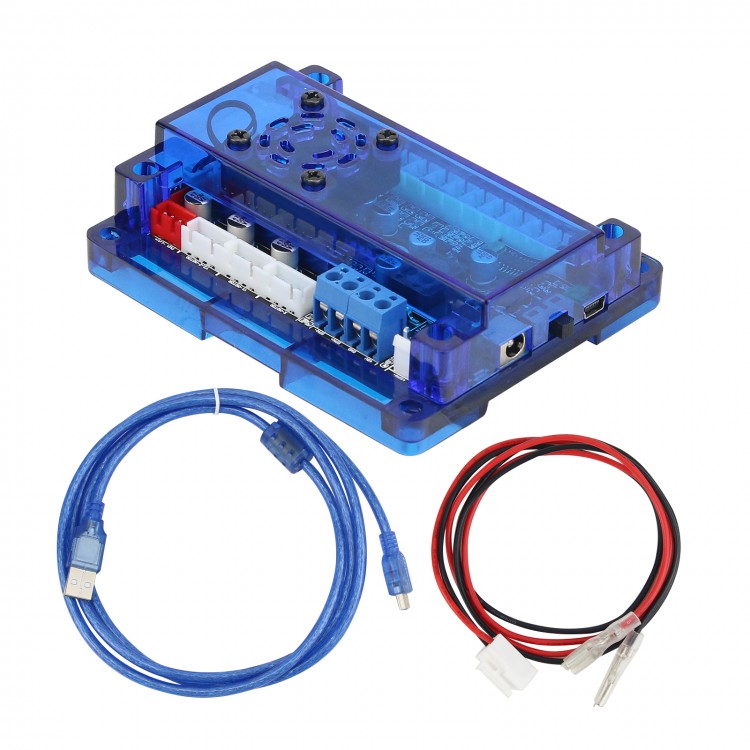

Package Included:
- 1 x Controller Board
- 1 x USB Data Cable
Note:
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
