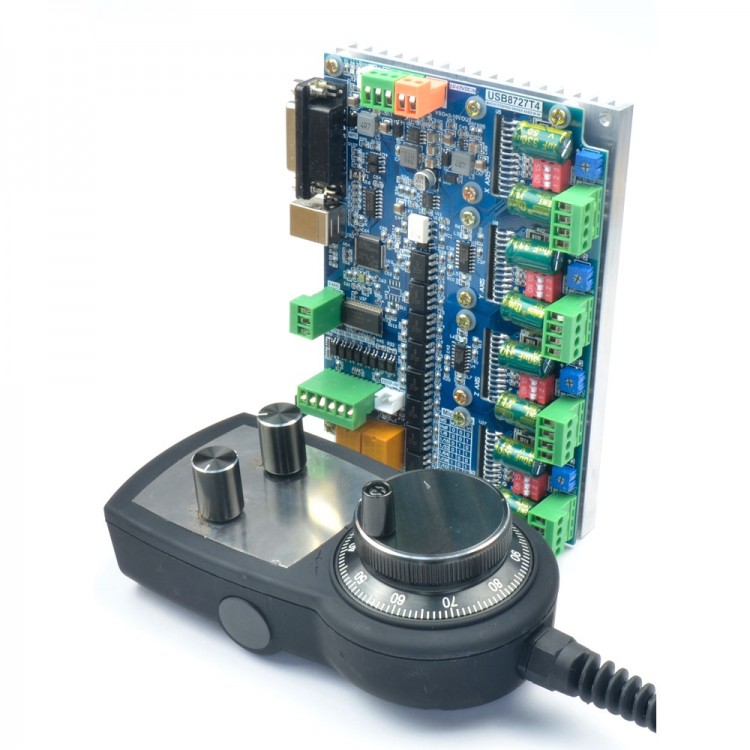

CNC MACH3 4 Axis Motion Controller USB8727T4 + MPG02 Standard Pulse Generator Handwheel

CNC MACH3 4 Axis Motion Controller USB8727T4 + MPG02 Standard Pulse Generator Handwheel

CNC MACH3 4 Axis Stepper Motor Driver Card Board Motion Controller USB8727T4

Product Description:
- USB8727T4 is the 4 axis motion controller
- USB8727T4 support Mach3 software,through USB port to communicate with computer.
- This manual introduces operation,connection and usage schedule of our professional motion controller for engraving machine.Through a lot of the drawing the users can learn quickly how to use this motion controller.

Specification:
- Support USB;
- 5 ports photoelectric isolated input interface;
- 1 ports photoelectric isolated output interface;
- 1 port 0-10V spindle speed analog output interface(can change to PWM output);
- 2 relay output.
- Can support 4 axis stepper systems,200KHz pulse output for every axis;
- ARM motion control chip;
- Main device is 12V-32VDC power supply input,current should higher than 10A

Appearance and size:
- USB8727T4 motion controller is with the sealed open structure,there are 2pcs setting holes at the bottom.We can fix 2pcs 4mm diameter holes at the cabinet,and install the controller into the cabinet.The controller appearance as the Figure 1-1 and Figure 1-2 show:
- The products overall size is 150x105x25mm;The bottom install size is 142.6mmx96mm.

Standard CNC 6-axis Wireless Handle Manual Pulse Generator Handwheel MPG with Emergency Stop

Specifications:
- CNC 6-axis Wireless Handle Manual Pulse Generator Handwheel for MPG Engraving Router Machine with emergency stop
- Diameter:12mm knob cap

Package List:
- 1 x 4 Axis Stepper Motor Driver Card
- 1 x Electronic CNC Handwheel
- 1 x USB Cable
- 1 x User manual
