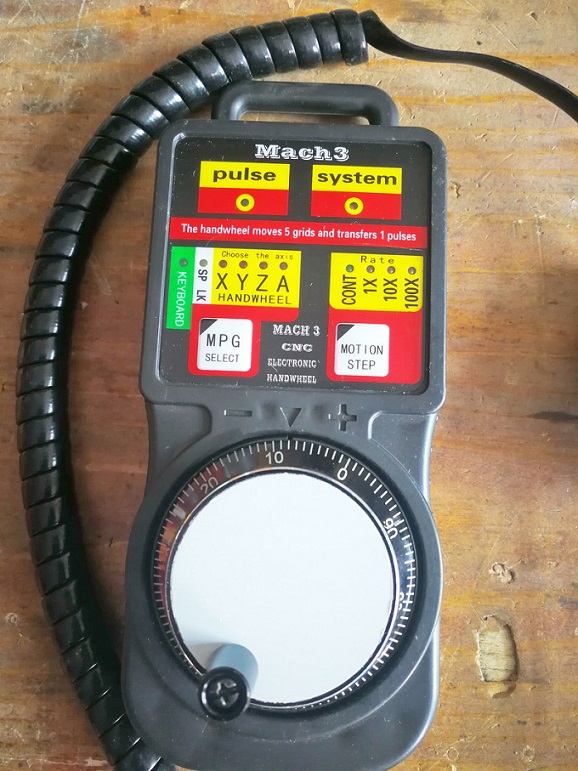

CNC MACH3 Wireless Electronic Handwheel 4-Axis Manual Controller USB Handle Pulse Generator

CNC MACH3 Wireless Electronic Handwheel 4-Axis Manual Controller USB Handle Pulse Generator

Product Description:
- The handwheel USB connects the computer,you need to use Mydrivers to update drive program.
- Rotation control the axises movement waveband switch select control axis (X,Y,Z,A)
- Waveband switch select control mode (continuous Step mode & Velocity mode)
- Mach3 provides manual control achieved by keys.
- ModS electronic handwheel controls the axises motor movement by rotating the handwheel.When you use velocity mode,the direction you shaking encoder runner determins the axises movement direction.The speed you shaking encoder runner determins axises movement speed.
- If you choose STEP mode,you will go to accurate movement mode.When you choose 0.01 gear,the wheel rotates 4 squares and send a pulse.The controlled axis moves 0.01 to your rotation direction.Select 0.1 gear,the wheel rotates a square and the controlled axis changes 0.1;1 gear can control 1 changing value and so on.
- X1 X10 X100 count.For example:If you select X100,it will rotation several round 25mm.Although the handwheel stops,the software still counts.For far distance,you should select CONT position.

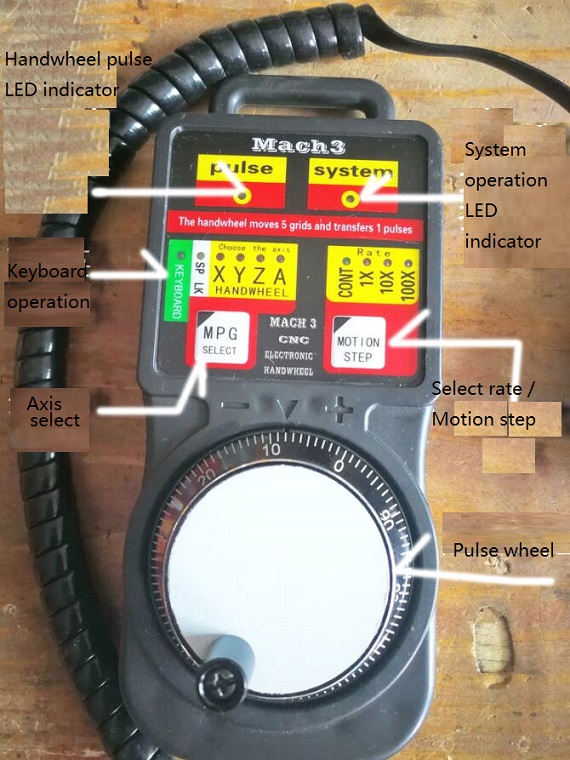

- Movement mode and control axis are with flash LED indicator(When you switch to Y axis,the LED indicator on Y axis will flash.If you switch to x1 rate,the corresponding rate LED indicator x1 will flash.You can easily observe the axis status.)

Note:
- Before switch on MACH3,you should connect ModS electronic handwheel to the computer.
If you first switch on Mach3 and then connects handwheel.It may happen that the movement axises moves a short time.At this time,you press emergency stop and reset,it will recover normal.
- After ModS connects computer,it can also connects computer if you do not need get away form computer.

Package List:

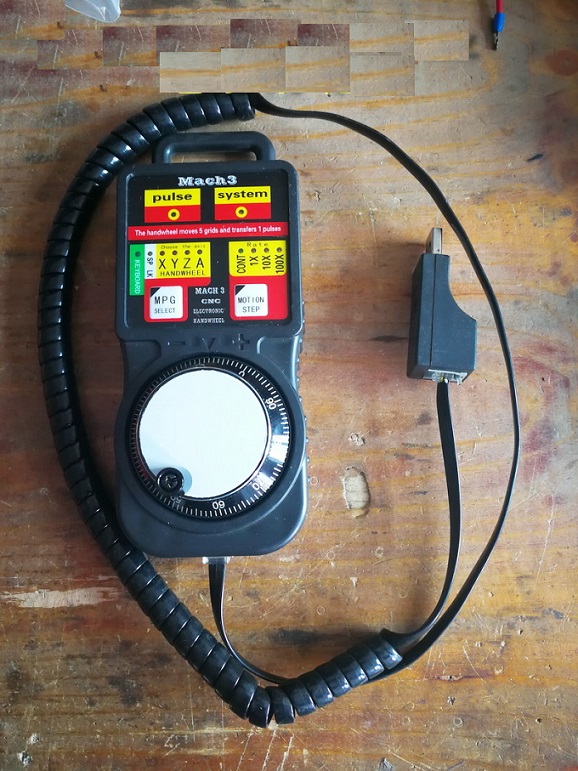

- 1 x CNC MACH3 Wireless Electronic Handwheel 4-Axis Pulse Generator
