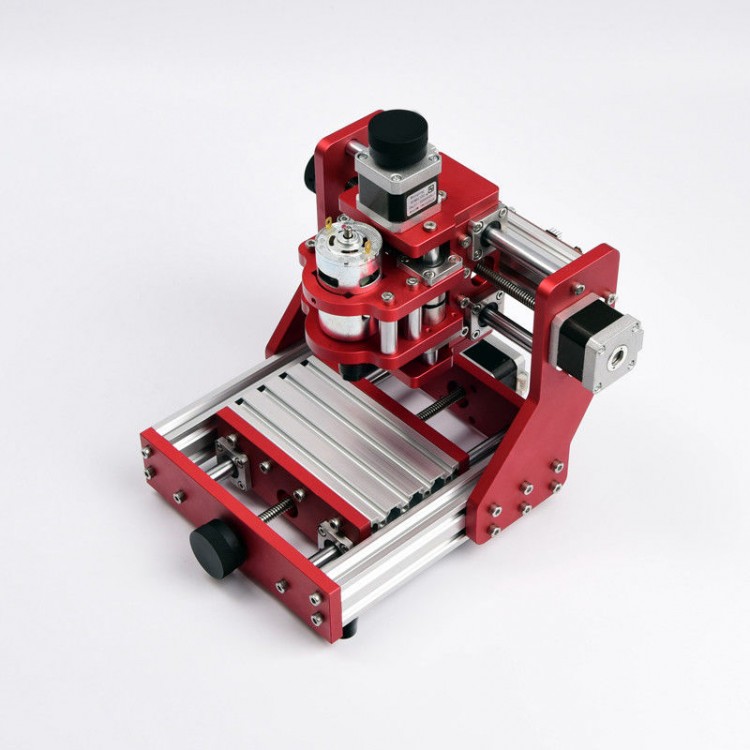

CNC Metal Engraving Machine CNC Milling Machine CNC Router for Copper Aluminum (without Laser)
Package Included:
- One Set of CNC Metal Engraving Machine Kit without Laser
Specifications:
- Software: GRBL control
- Material: Aluminum Profiles
- Working Range: 126*88*38mm
- Machine Dimension: 281mm *281*287.5mm
- Machine Spindle: 775 Spindle Motor (12-36V), (8000r/min, if 24V)
- Stepper Motor: 2-Phase 4-Wire Stepper Motor (1.3A, 0.25N.m)
- Screw Lever: T8 Screw Lever
- Power Supply: 24V (110V-240V)
- Supported OS: for Windows XP, Win 7, Win 8, Linux
Application:
- Applicable Material: Copper, Aluminum, other Soft Metals, Plastic, Wood, Acrylic, PVC, PCB, and Other Soft Materials
- For Standard Shapes of Materials
- Not for Non-Standard Shapes of Material such as Cylindrical and Curved Shape.
Note: Self-assembly is needed. Thank you!
