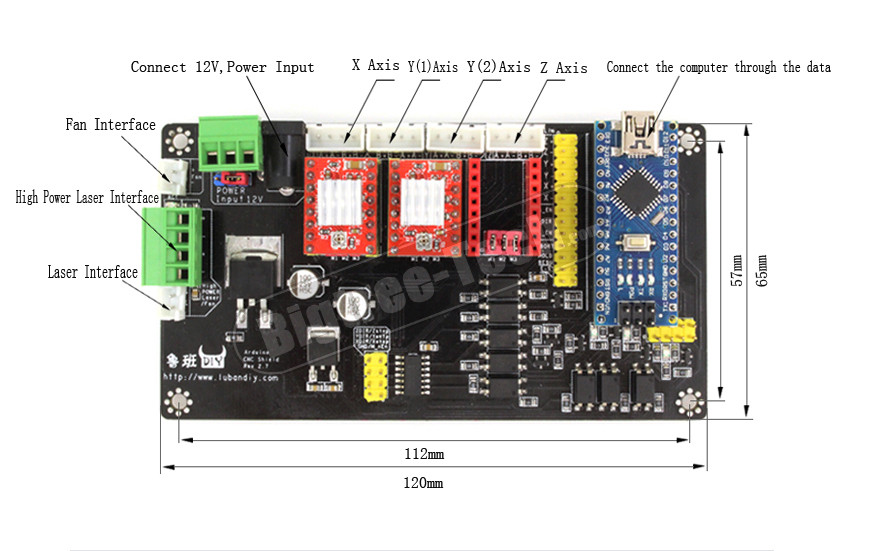

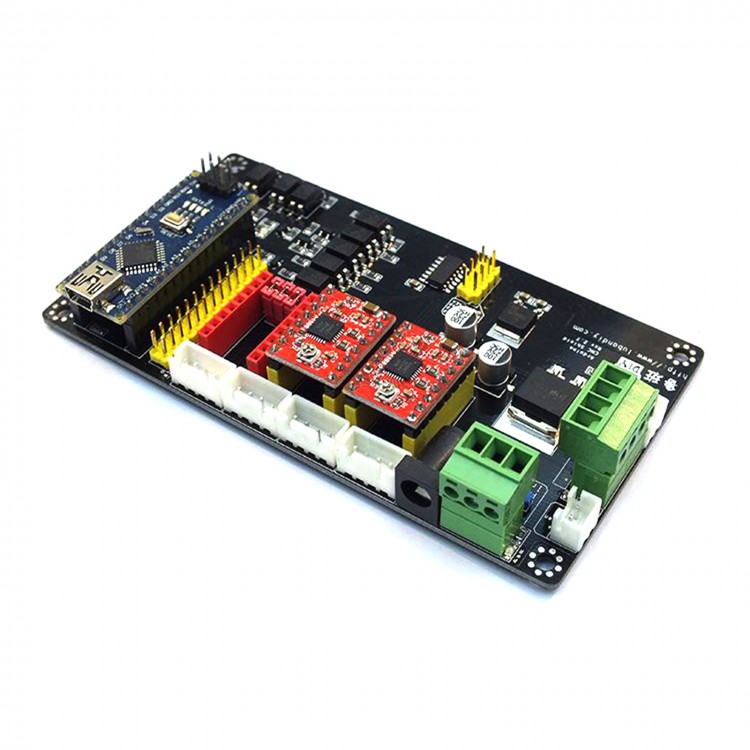

CNC Router 3 Axis Stepper Motor Driver Controller Main Board USB for DIY Laser Engrave Machine
Specification:
- Product: Three Axis Stepper Motor Drive Controller Board
- Product Code: 3D0303
- Material: PCB
- Model: LBA-B-V4
- Dimension: 120*65mm
- Pitch size: 112*57mm
- Laser Power: 100mW to 5W
- Axis: XYZ Three Axis
- Power Supply: 12V
- Stepper Motor Power: Max 2A
- For stepper motor: 4tvl 2phase, 6tvl 2phase
- Limit switch: X+X-Y-Z+Z- 6 chanels Limit
Function:
- Supporting adjusting Laser Power, Weak light function, Optical coupling isolation, Anti-jamming,
- Support for high power laser, Miniature master software,
- Support the latest CNC firmware, Gold plated pins, Limit switch, Motor subdivision, External relay and so on.
Packing List:
- 1pcs*Three Axis Stepper Motor Drive Controller Board
