CNC Router 4 Axis Stepper Motor Driver Card Controller NV8727T4V4 100Khz CNC MACH3 Control Board + NC200
Features:
- New bipolar constant current chopping technique
- With fan interface
- With Limit interface
- Dual channel relay outputs
- With automatic half flow function
- Input pulse frequency maximum up to 1M KHZ
- Support 8 kinds of subdivision choice, the highest support 128 segmentation
- With high speed photoelectric coupler and isolated DC/DC power
- With 0.6A, 1.2A, 1.8A, 2.4A, 3.0A, 3.6A, 4.2A, 4.8 A (peak) 8 section adjustable current function
- Standard parallel port interface, support MACH2, MACH3, KCAM4 series software, etc.
- With the spindle start and stop switch, ground signal to facilitate the direct connection of the inverter.
- With the spindle 0-10V debugging, software S commands directly to control the output voltage, convenient and direct link with the inverter.
- The interface board and the driving board can share the 12~36VDC power supply, or the 5V independent power supply.
- Latest V4 board to optimize the circuit
- Exclusive design of the heat sink diagonal mounting holes, easy to install on the cabinet

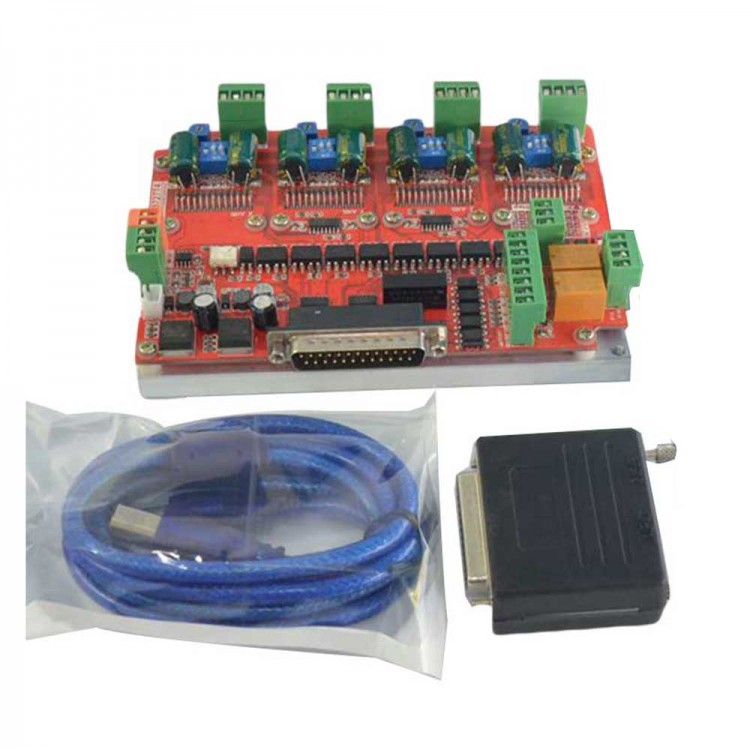

Package list:
- 1 x 4 Axis Stepper Motor Driver Card
- 1 x NC200 adapter
