CNC Router 4 Axis Stepper Motor Driver Card Controller V4 NV8727T MACH3+NC200+Handwheel Kit for Engraving Machine
Features:
- Novel bipolar constant current chopping technique
- With fan interface
- With a limit interface
- 2 channel relay output
- With automatic half current function
- Input pulse frequency is up to 200KHZ.
- Support 8 kinds of microstep options: maximum support 128 microstep
- With high-speed optical coupler and DC/DC power isolation
- With the current 0.6,1.2,1.8,2.4,3.0,3.6,4.2,4.8 (peak) 8 file adjustable function
- Standard parallel port interface, support MACH2, MACH3, KCAM4 series software
- With the spindle start and stop switch, to open the signal to facilitate the direct connection of the inverter.
- With the spindle 0-10V debugging, software S commands directly control the output voltage, convenient to link with the inverter.
- The interface board and the motor driver board can share the 12~36VDC power supply, or the 5V independent power supply.
- The latest V4 board, has been optimized the circuit, improve the stability of the product.
- Diagonal mounting holes for heat sink , easy to install on the cabinet.

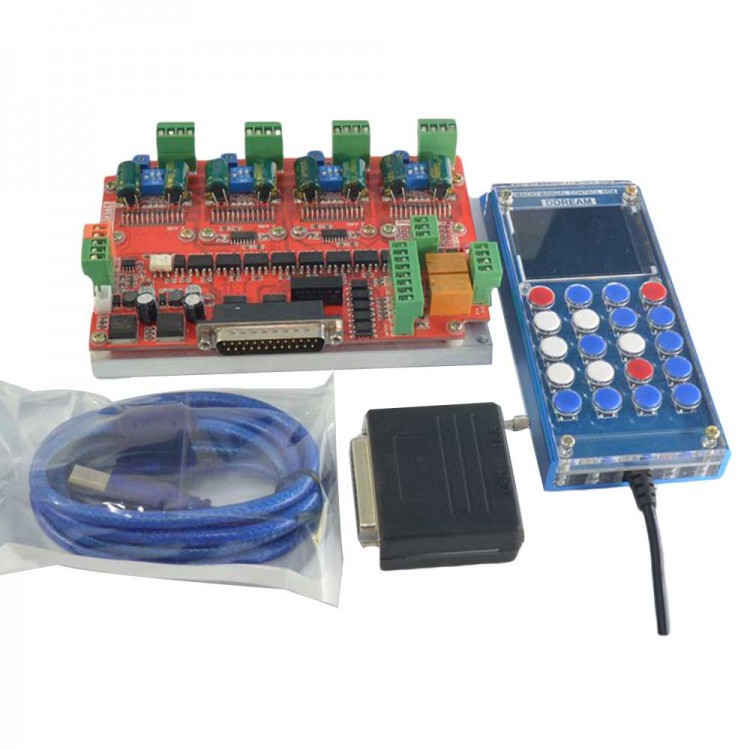

Package list:
- 1 x Stepper Motor Driver
- 1 x NC200 adapter
- 1 x LCD manual control box
- 1 x Parallel Cable
