CNC ROUTER MILLING Air Cooled 0.4KW Spindle Motor & PWM Speed Controller & Mount

CNC ROUTER MILLING Air Cooled 0.4KW Spindle Motor & PWM Speed Controller & Mount

Spindle Motor:
- Work voltage: 12-48VDC
- Rotation speed: 3000-12000r/min
- spindle motor power: 400W
- Torque:500mN.m
- Insulation resistance:>2Megohm
- Dielectric strength:400V
- Motor Length :  186mm
- Diameter:52mm
- Axis collet Length: 48mm
- Diameter of Axis collect holder:16mm
- Repeat accuracy: 0.01-0.03mm
- ER11 spindle motor collect: 3.175mm

Wide voltage PWM DC brush motor speed controller：
- Applies to DC12-60V low voltage permanent magnet brushed DC motor
- Operating Voltage: Wide Voltage (DC) DC12V-DC60V (Max 65V)
- Control mode
  A: Default potentiometer control (5K-100K),defaults 10K;
 B: MACH3 -PWM speed control signal input, external PWM input requirements: level 3.5-12V VPP, frequency 1K-10KHZ, suitable for MACH3 spindle speed control.
- Rated current: 10A, overload and short circuit protection current 12A. (Over-current cut output, overcurrent indicator flashes, the potential light is off, overcurrent lift).
- Soft-start function. Prevent excessive current caused by the motor and power damage (default 0 seconds soft start), 0-5 seconds adjustable.6.Control power: 12V120W, 24V240W, 36V360W, 48V480W, 60V600W7.Dimensions: Length 75mm * Width 75mm * high 42mm 8.Pulse width modulation range: 0% -100%

Note: When using a PWM signal control mode, need to unplug Potentiometer, or it will be unable to use PWM mode).

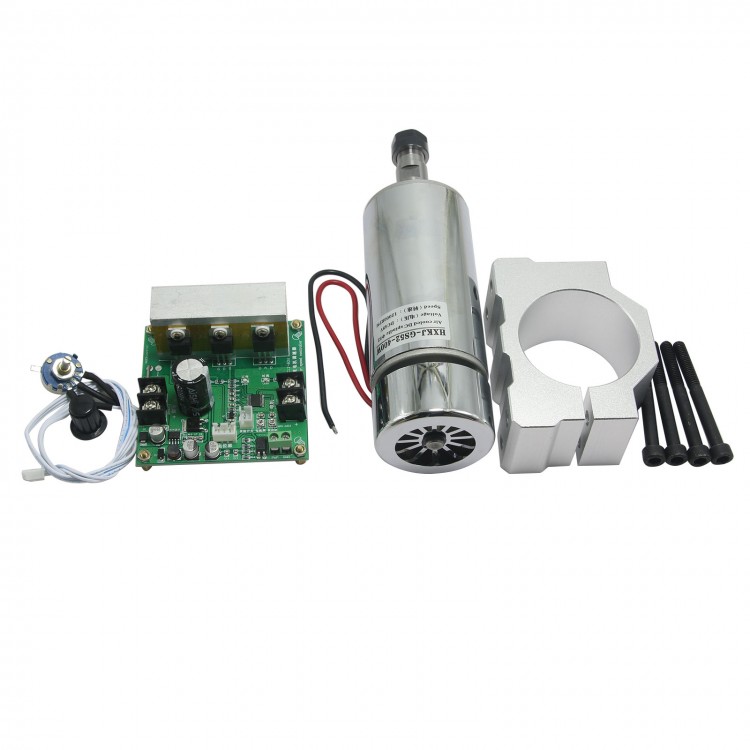

Package Content：
- 1 * 0.4KW spindle motor with with ER11 3.175 collet
- 1 * Mach3 PWM speed controller
- 1 * Mount bracket with screws
