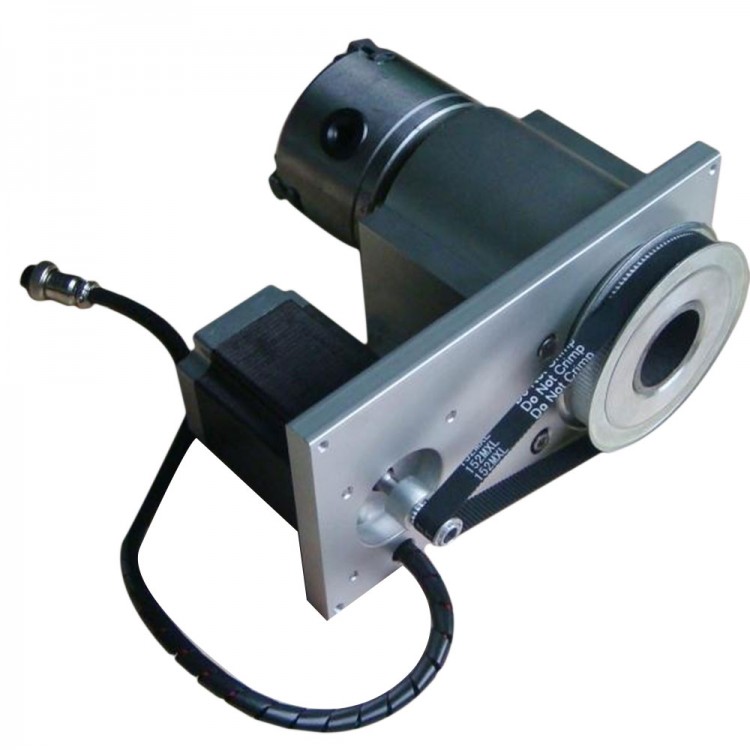

CNC Router Stepper Motor Diameter 80MM A Axis Model F for Engraving Machine
Parameters:

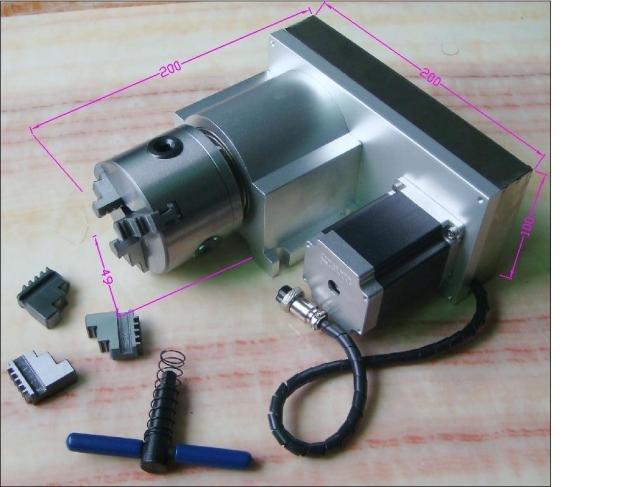

- Size: 200*200*100
- Diameter : 80MM
- Chuck center height 49MM
- Gear ratio 1:8 (1600 pulse / ring) synchronous wheel deceleration
- 57*78, 3.5A 4 line high torque stepper motor
- Stainless steel dust proof cover
- Total weight : 7KG
- The appearance anodic oxidation rust treatment

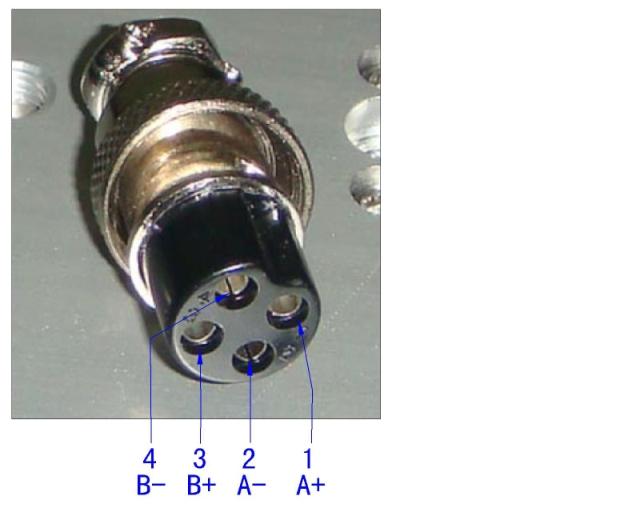

- 4 core aviation joint 1=A+, 2=A-, 3=B+, 4=B-
- MACH3 settings: 1 degree required pulse volume
- Calculation formula: 360/ step angle * drive subdivision * drive ratio /360 degree =MACH3 pulse volume
Package list:
- 1 x Stepper motor
