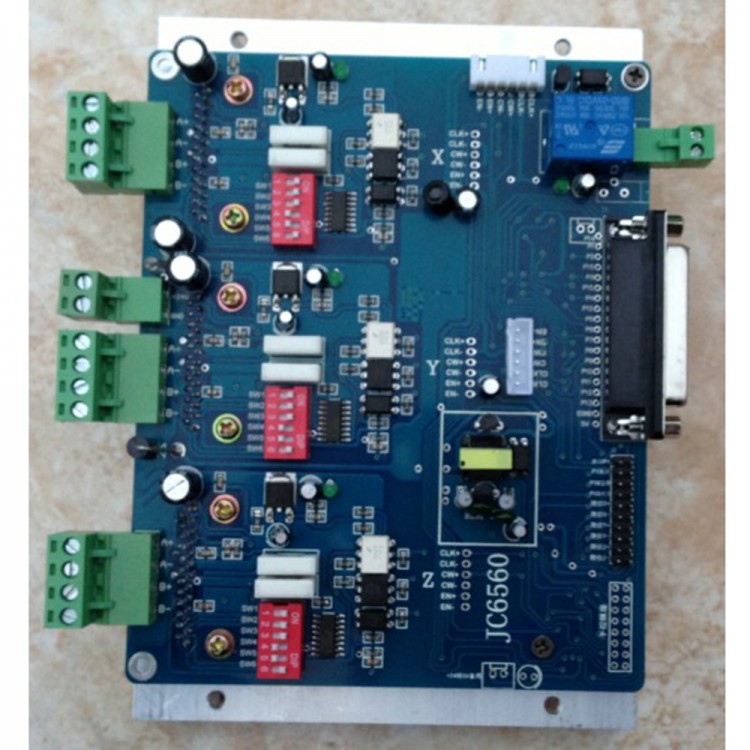

CNC Stepper Motor Driver Board TB6560 with Radiator for 86 Step Motor Mach EMV KCAM DIY
Description:
- Working voltage DC 12V-40V
- This driver logic power supply four channels independent power supply, LM2575 switch voltage regulator +3*ST78M05
- For mach2/mach3 /emc/ /KCAM
- Output standard 3-axis drive, 5 axis port and emergency stop port
- The control part is isolated from driving part of the high-speed optocoupler . no interference
- The driver board with a large number of 74HC series chip amplifying and shaping of parallel signal, the output level of stable performance improvement
- The stepping motor is driven by the original TB6560 chip, DMOS internal double H bridge (FET).
- Rated maximum output:-+ 3A,40V,peak 3.5A, low output impedance, the source 0.5 ohm, receiver port 0.4ohm
- Suitable for 86, 57 and within 3.5A step motor, not for over 3A step motor
- Automatic half flow attenuation.
- Subdivision: full step, half step, 1/8 step, 1/16 step, maximum 16 subdivisio
- Non inductive resistance: 2W/0.22R
Package included:
- 1 x Step Motor Control Driver board
