CNC Torch Holder Lifter Torch Height Control 1800mm/min Stroke 100mm For CNC Flame Cutting Machine

CNC Torch Holder Lifter Torch Height Control 1800mm/min Stroke 100mm For CNC Flame Cutting Machine

Description:

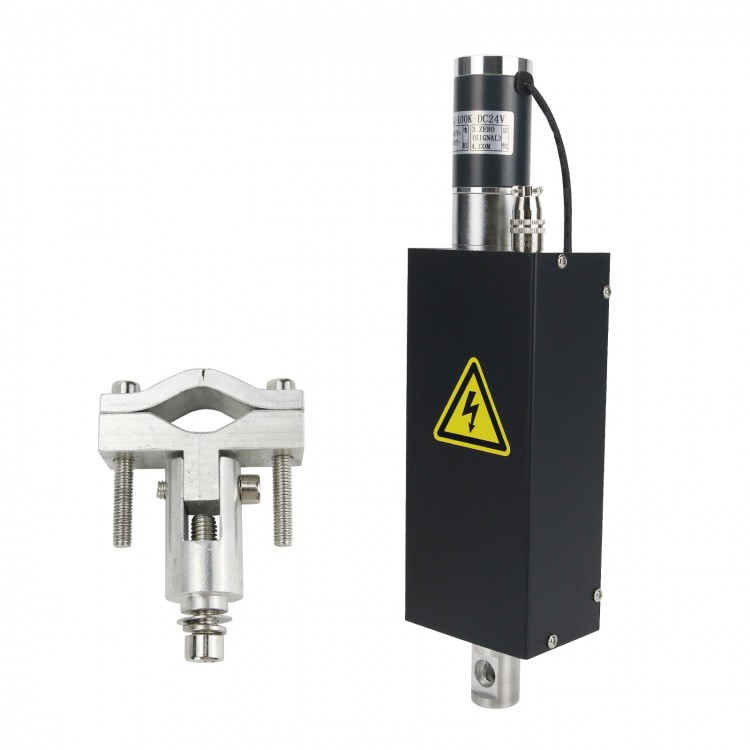

The torch holder of flame cutting machine is of top quality in the industry. The lifting body uses a decelerating DC motor to drive the cutting torch up and down. The internal lifting drive of the holder adopts 304 stainless steel T-shaped screw, and the optical axis and linear slider are used at both ends to ensure smooth and reliable verticality in the up and down direction. It is used for ascending and descending transmission mechanism during flame cutting. Made of aluminum with fine treatment, it features very high accuracy. The positioning switch and limit switch are made in Taiwan and have passed 3C certification and CE certification.

Definition of Aviation Plug:
- Pin 1: MOT + (motor)
- Pin 2: MOT- (Motor)
- Pin 3: Zero (SIGNAL) (positioning normally open signal output)
- Pin 4: COM (positioning normally open signal output)

Attention: The built-in limit is designed with reverse diode. No more troublesome wiring again and again.

Specifications:
- 304 stainless steel T screw
- With fixture (cutting torch range 12mm-38mm)
- CNC flame and plasma anti-collision function (optional)
- Positioning function inside the lifting body
- The thickness of the main body aluminum plate and the upper and lower aluminum plates is 8mm.
- Four-core aviation plug
- Color: Black sprayed shell
- Working Stroke: 100mm
- Working Voltage: DC24V
- Weight: about 1.7 kg
- Load Capacity: 3 kg
- Size: 320 x 80 x 60mm (LxWxH)
- Installation Hole Spacing: 40mm

Package Included:
- 1 x Flame Torch Holder with Fixture
