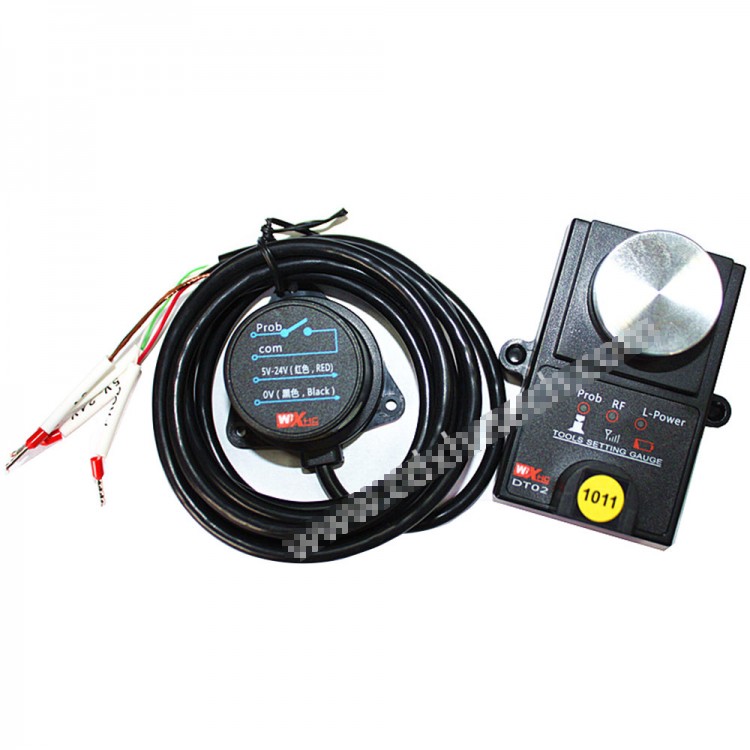

CNC Wireless Universal System Automatic Tools Setting Gauge with Wireless Receiver
Application:
Low-power wireless tool setting gaguge, applications operating in all kinds of machine cnc center.
Operation Instruction:Connect the receiver to the cnc system

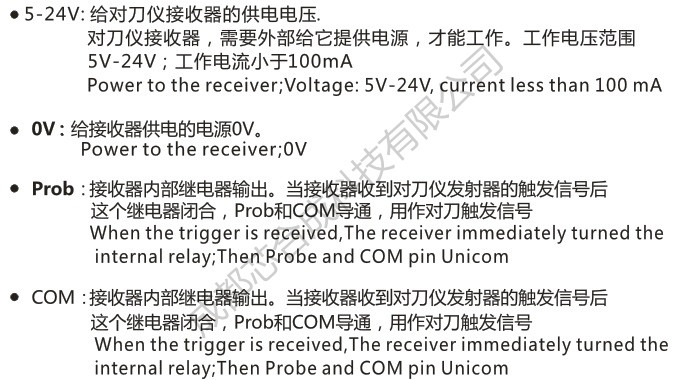

The receiver pin configuration :
Description :

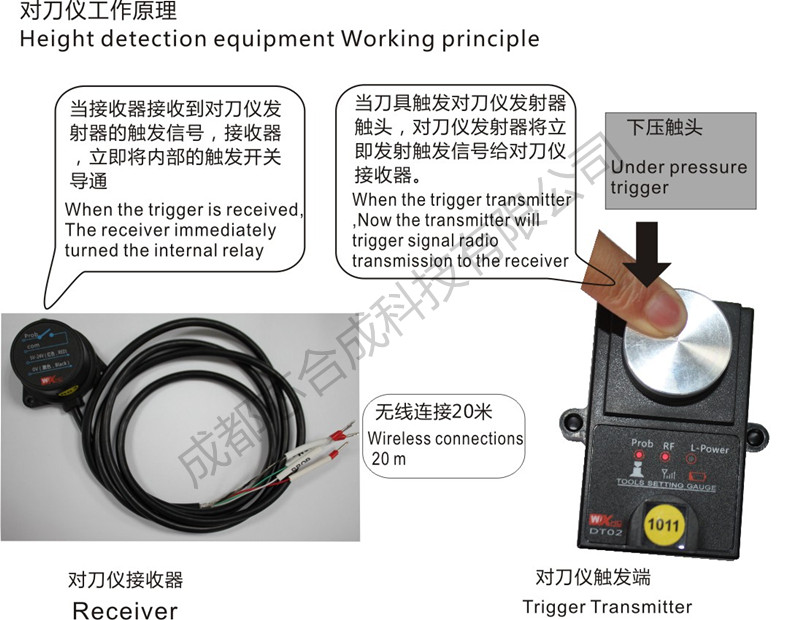

1. Prob is the electric relay output normal open switch,which will be closed when the probe signal is triggered.
2. Power on the receiver.please make sure that the input power is 5v-36v DC. The work led flash to indicate power on ok.
3. Install the two AAA batteries to the terminal device.

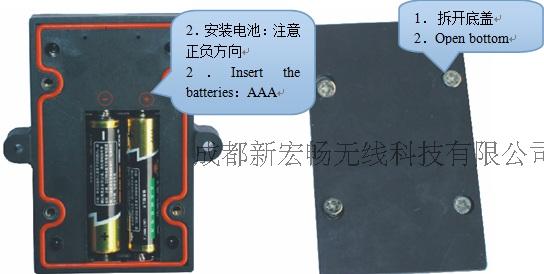

Open the the battery door->install the 2 AAA.(Attention to The battery positive and negative direction )->close the battery door.

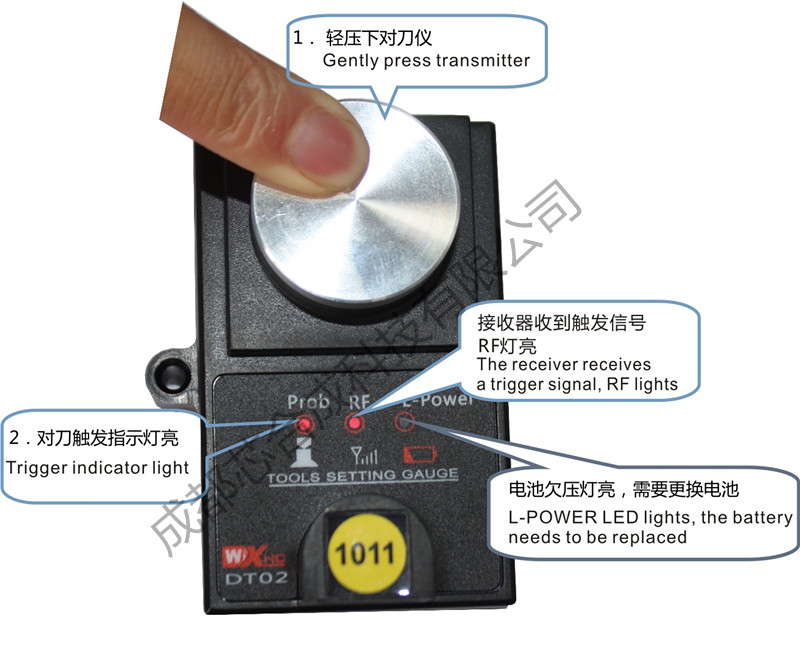

4. To Touch the bulge of the tool setting gauge device until the probe led and the RF Led light. the probe signal will be transferred to the receiver,the receiver will trigger the probe switch to close.
Electrical specifications:
The receiver:
- Work voltage:5v~24 DC
- Current consumption: type 20ma
- Wireless distance:20 meter
- The relay normal open contacts output: support maximum 250V/50ma load.
Tools Setting Gauge
- Work voltage:2 AAA batteries,2.4V~3.6V DC
- Current consumption: type 20uA.To work continuously more than 6 months
- Wireless distance:20 meter
- Probe precision:0.01mm
- Low power warning:please exchange the batteries when low power led light
Package List:
- 1 x Tools Setting Gauge
- 1 x Receiver
