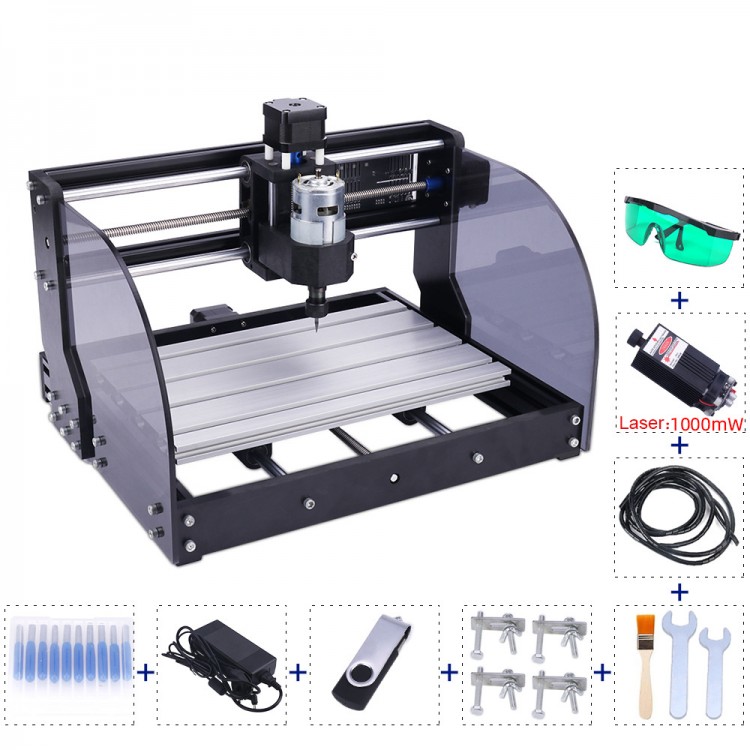

CNC3018Pro M Desktop Laser Engraver CNC Router Machine Unassembled For Wood Plastic + 1W Laser

CNC3018Pro M Desktop Laser Engraver CNC Router Machine Unassembled For Wood Plastic + 1W Laser

Product Features:
- Premium materials, exquisite workmanship and stable performance.
- Upgraded GRBL controller board: With shell and excellent heat dissipation effect. Multifunctional ports, intelligent recognition of offline modules, power supply control button, imported driver chip and integrated cooling system.
- Aluminum workbench: Aluminum alloy is welded with high precision, which is more stable.
- Linear circular rails, bearings can work for a long time without affecting performance.
- Stepping motor is sturdy and durable, and its side wall boasts a frosted metal texture to increase friction.
- Controller board: Imported chips are used, with high subdivision to ensure the stability of the machine, improve speed and accuracy.
- Acrylic baffle structure is simple, easy to adjust. It has a certain function of blocking the laser, preventing wood chips from flying.
- 2-In-1 machine: Works as a laser engraving machine or a CNC router machine.
- Cutter head: suitable for plastic, wood, bamboo, embossed, flat carved, acrylic, horn.
- Laser head: perfect for soft wood, leather, paper, plastic phone cases, rubber stamps, photosensitive stamps, sponge paper, etc.

Upgraded GRBL Control Board:
1. GRBL1.1f firmware, stable performance
2. Offline engraving (optional offline module), offline tool setting
3. Laser supports PWM/TTL signal control, and power is adjustable from 0-100%
4. Spindle supports PWM power 0-100% adjustable
5. Stepper motor overcurrent protection to avoid damage, upgrade integrated stepper motor drive, 2A high current, high stability
6. Laser directly enters picture engraving, no programming, no design, simple and convenient
7. Professional shell protection, its fan actively dissipates heat and does not heat up for a long time.

Product Parameters:
- Control software: GRBL control
- Frame size: 400 x 330 x 240mm (not including the protruding part of the motor)
- Working range: 300*180*40mm
- Screw: T8 screw, lead 4mm, double copper nut to eliminate the difference
- Stepping motor: 42 stepping motor 1.3A 0.25N.M
- Spindle: 775 spindle motor (12-36V) 24V, 10000r/min
- Chuck specification: ER11, 3.175MM (optional 0-7mm)
- Body material: aluminum + bakelite plate
- Optional laser: 1W, 1.6W, 2.5W, 3W, 5.5W, 7W, 10W, 15W
- Power supply: 24V 5A, (110V-220V)
- System requirements: For Windows XP, win 7, win 8, win 10
- Interface: USB
- Processing instructions: CNC: CNC: G-CODE, TAB, NC, NCC files/laser G-CODE JPG, DXF files

Package Included:
- 1 x Set of Engraving Machine

Note:
- Assembling is needed.
- The engraver machine kit is for starters only, not for commercial uses.
