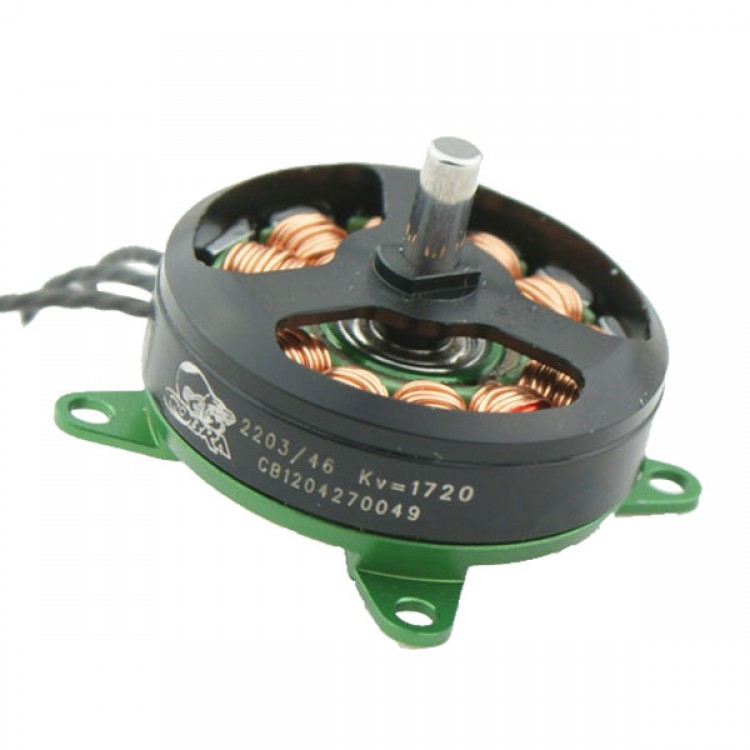

COBRA 2203-46 KV1720 Brushless External Stator Motor for Multicopter FPV Photography
Description:
- Stator dia: 22mm
- Stator thickness: 3mm
- Stator pole num: 12
- Magnetic pole num: 14
- Num of turns: 46 turn Delta
- KV value: 1720RPM/ Volt
- Unload current: 0.4 Amps @10 Volts
- Cable resistor: 0.267Ohms
- Phase resistor: 0.179Ohms
- Max continuous current: 8Amps
- Max continuous current: 60Watts
- Weight: 17.5g
- Dia: 26.8mm
- Axis dia: 3mm
- Motor length: 11.4mm
- Axis dia:19.6mm
