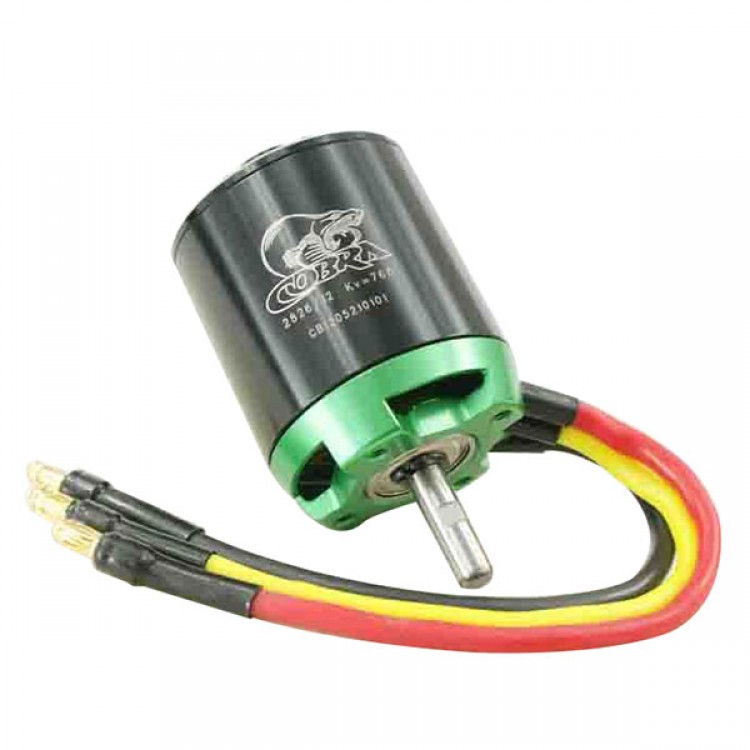

COBRA 2826-12 KV760 Brushless External Stator Motor for Multicopter FPV Photography
Description:
- Stator dia: 28mm
- Stator thickness: 26mm
- Stator pole num: 12
- Magnetic pole num: 14
- Num of turns: 12turn Delta
- KV value: 760RPM/ Volt
- Unload current: 1.1 Amps @ 8 Volts
- Cable resistor: 0.068Ohms
- Phase resistor: 0.045Ohms
- Max continuous current: 42Amps
- Max continuous current: 460Watts, 620 Watts(4s)
- Weight: 171g
- Dia: 35mm
- Axis dia: 5mm
- Motor length: 46mm
- Axis dia:60mm
