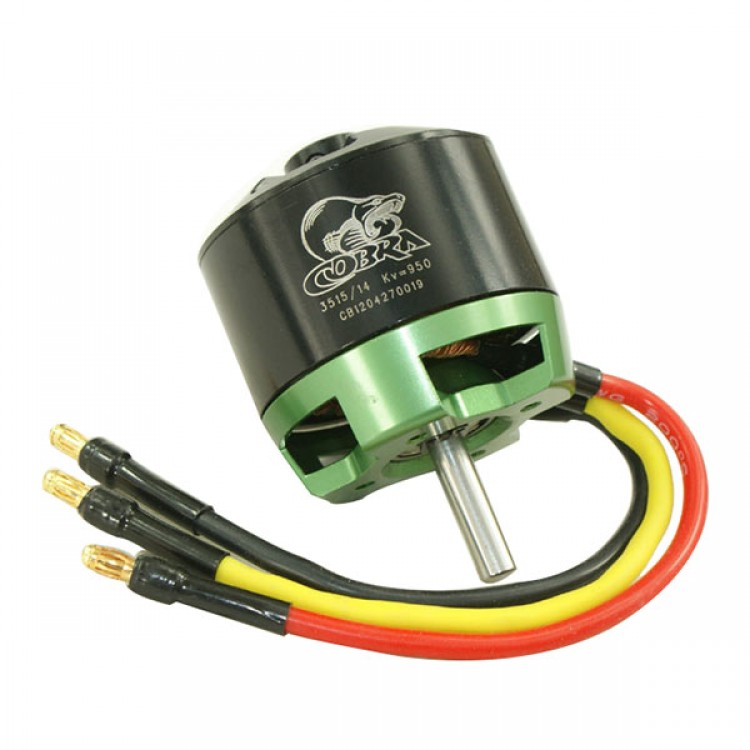

COBRA 3515-14 KV950 Brushless External Stator Motor for Multicopter FPV Photography
Description:
- Stator dia: 35mm
- Stator thickness: 15mm
- Stator pole num: 12
- Magnetic pole num: 14
- Num of turns: 14 turn Delta
- KV value: 950RPM/ Volt
- Unload current: 1.39 Amps @14 Volts
- Cable resistor: 0.044Ohms
- Phase resistor: 0.029Ohms
- Max continuous current: 44Amps
- Max continuous current: 490Watts ,650Watts(4s),810Watts(5S),970watts(6s)
- Weight: 178g
- Dia: 43mm
- Axis dia: 5mm
- Motor length: 41mm
- Axis dia:63mm
