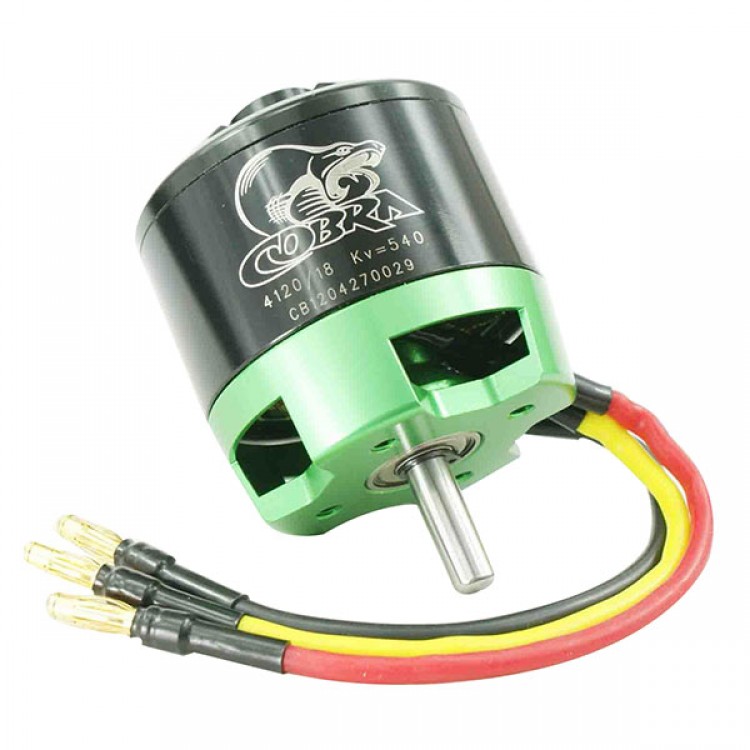

COBRA 4120-18 KV540 Brushless External Stator Motor for Multicopter FPV Photography
Description:
- Stator dia: 41mm
- Stator thickness: 20mm
- Stator pole num: 12
- Magnetic pole num: 14
- Num of turns: 18 turn Delta
- KV value: 540RPM/ Volt
- Unload current: 1.5 Amps @10 Volts
- Cable resistor: 0.045Ohms
- Phase resistor: 0.03Ohms
- Max continuous current: 54Amps
- Max continuous current: 800Watts(4S),1000Watts(5s),1200Watts(6S),1600Watts(8s)
- Weight: 290g
- Dia: 49.8mm
- Axis dia: 6mm
- Motor length: 51.8mm
- Axis dia:74.5mm
