Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $43.92 | $43.03 | $41.68 | $39.89 | Contact US |
Description:
- The new blue ZY1275 Power-Z tester three generations of dragon watch to sell! 0.01mA current resolution!
- Type-C PowerDelivery trigger detection trick trick capturing Packet directly included, QC2.0 QC3.0 FCP AFC VOOC DASH fast charge trigger detection trick,
- Senior enthusiasts recommended USB test artifact!
Specification:
- Input voltage: DC 3.5V-24V
- Input current: + - 3A
- Voltage resolution: 0.0001V (0.1mV)
- Current resolution: 0.0001A
- Cumulative capacity: 0-99999Ah; 0-99999Wh
- Capacity resolution: 0.0001Ah; 0.0001Wh
- Accuracy: Voltage 0.1% + 2d; Current 0.2% + 2d; Ah capacity 0.5%; Wh capacity 0.5%
- Display: 1.3 "128x104 pixel Color TFT
- Update rate: Every 0.36s
- Idle current consumption: ~ 8mA / 6mA (with display dimmed / off)
- Current shunt resistance: 10mOhm
- Overall circuit resistive loss: ~ 42mOhm (including contact resistance on USB connectors)
- Memory: FRAM, good for 10 billion write cycles
- Memory operation mode: write on every update in cumulative capacity + load balancing technique
Package Included:

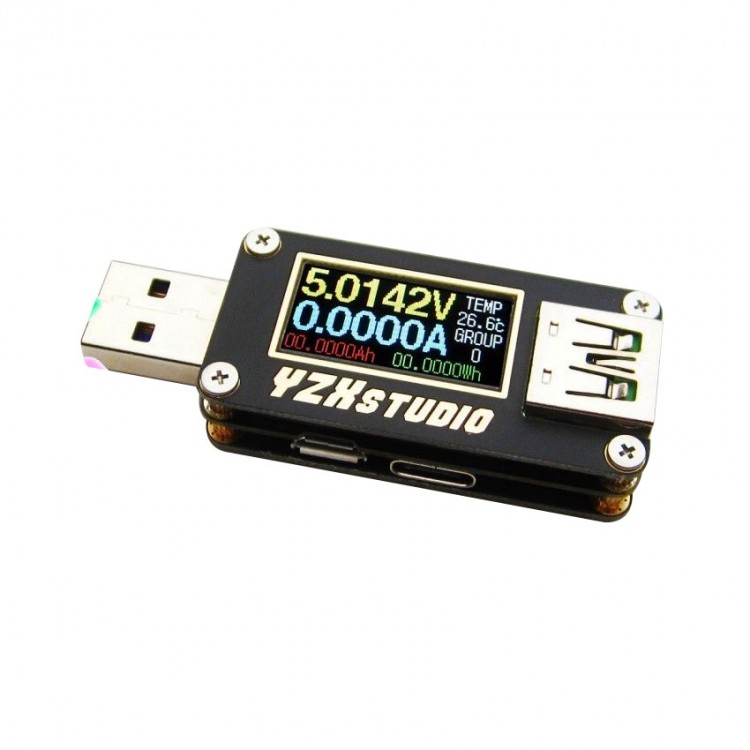

- 1 x Colour TFT Dual USB Power Monitor YZXstudio ZY1275 QC4.0 PD3.0 PPS Fast Charer
