| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $20.01 | $19.60 | $18.99 | $18.17 | Contact US |

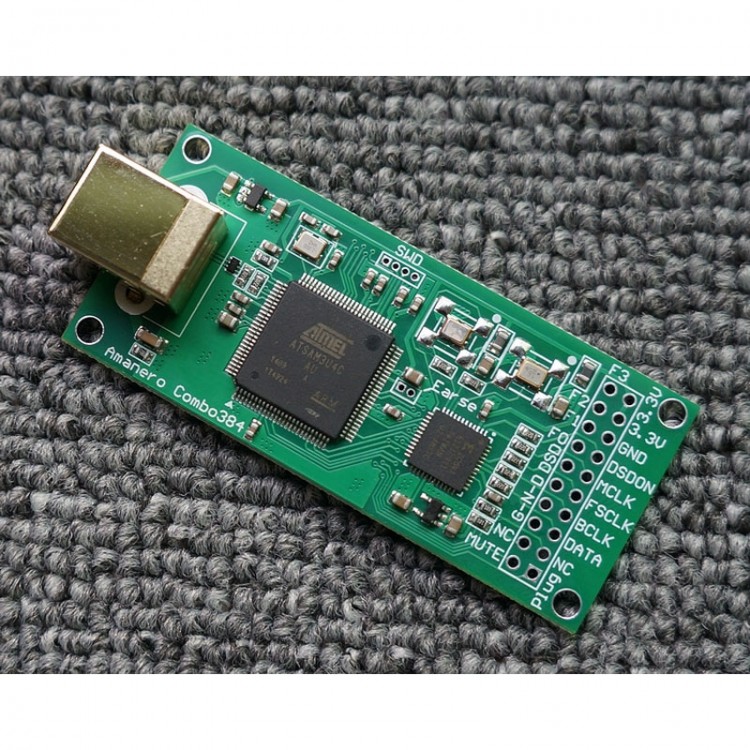

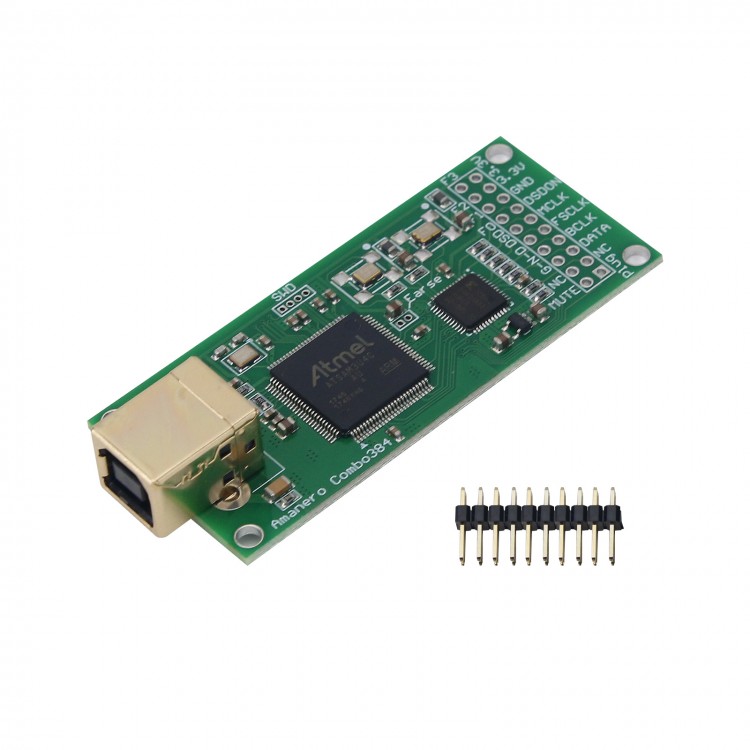

Combo384 China-Made USB Audio Interface Digital Audio Interface with Ordinary Crystal Oscillator
Description:
It is a USB audio interface. It is not an official version for Amanero. Its dimensions, interface definition and features are the same as those of the official version.
Package Included:
- 1 x USB audio interface
Packaging Details:
- G.W.: 0.15kg
1. 2*10P version is a full-featured version
The F0, F1, F2 and F3 pins of the USB interface are the sampling rate output pins. Different levels correspond to different sampling rates.
2. ESD chip
0522P ESD chip prevents static electricity from damaging the chip's USB interface.
3. Gold-plated USB connector
It is designed with a HIFI gold-plated USB connector. It supports 3225 and 5070 crystal oscillators. It is convenient for users to replace its crystal oscillator.
4. Optimize the backside wiring
We try our best to optimize the ground signal on the back side, on the premise that the pins are fully functional. Below is a close-up of the chip.
5. Firmware version
The official tool is upgraded online. If you have a requirement for the firmware version, please leave a message about the required firmware version when placing an order. By default, the firmware version is shipped as shown below.
