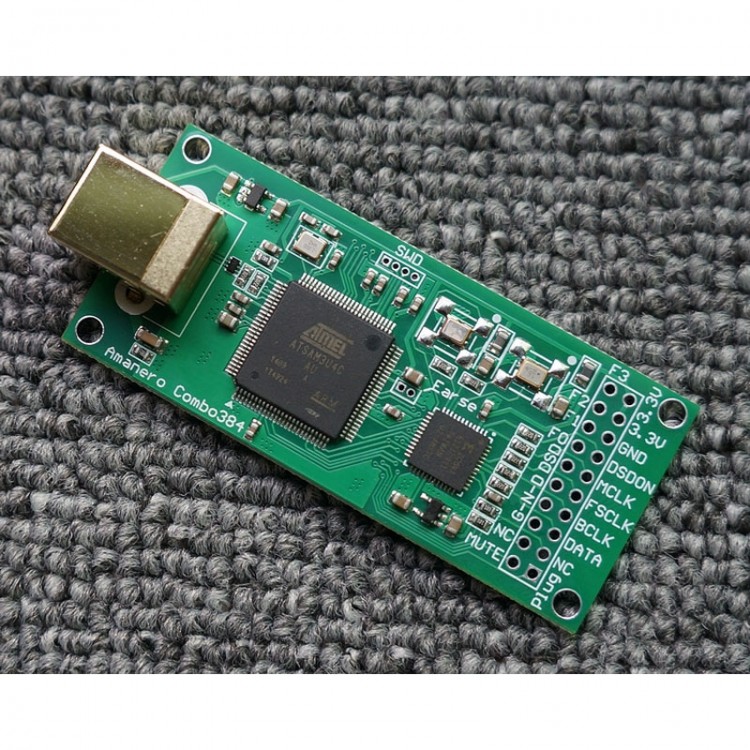

Combo384 China-Made USB Audio Interface Digital Audio Interface with TCXO Crystal Oscillator
Description:
It
is a USB audio interface. It is not an official version for Amanero.
Its dimensions, interface definition and features are the same as those
of the official version.
Package Included:
- 1 x USB audio interface
Packaging Details:
- G.W.: 0.15kg
1. 2*10P version is a full-featured version
The
F0, F1, F2 and F3 pins of the USB interface are the sampling rate
output pins. Different levels correspond to different sampling rates.
2. ESD chip
0522P ESD chip prevents static electricity from damaging the chip's USB interface.
3. Gold-plated USB connector
It
is designed with a HIFI gold-plated USB connector. It supports 3225 and
5070 crystal oscillators. It is convenient for users to replace its
crystal oscillator.
4. Optimize the backside wiring
We
try our best to optimize the ground signal on the back side, on the
premise that the pins are fully functional. Below is a close-up of the
chip.
5. Firmware version
The
official tool is upgraded online. If you have a requirement for the
firmware version, please leave a message about the required firmware
version when placing an order. By default, the firmware version is
shipped as shown below.
