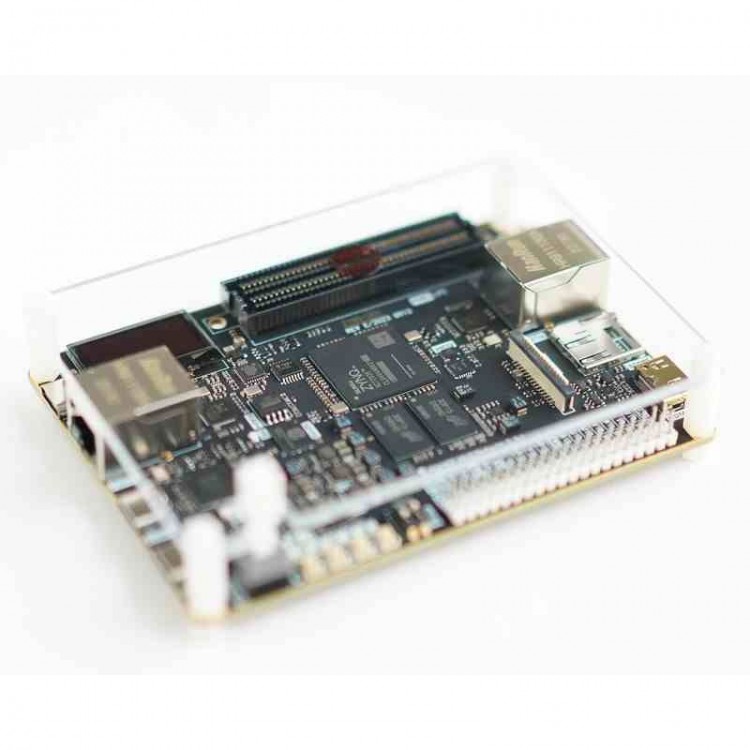

Compact ZYNQ7020 DEV Development Board Kit FPGA Development Board with FMC and LPC Interface

Compact ZYNQ7020 DEV Development Board Kit FPGA Development Board with FMC and LPC Interface

Master Chip Parameter:
- Model: XC7Z020-2CLG484I
- Chip level: industrial level
- PS application processor model: for ZYNQ on-chip hardcore processor, dual-core Cortex-A9, main frequency of 766M
- DDR specification and model: 512MByte, 16bit width, 1066M data rate, MT41K256M16TW-107
- Logical unit (LC): 85K
- Lookup table (LUT): 53200
- DSP unit multiplier: 220pcs
- Trigger (Flip Flops): 106400
- Ram: 4.9Mbit
- Temperature range: -40℃ ~ 85℃
- Speed level: -2

Development Board Functions and Interfaces:
- Power supply mode: TYPE-C interface, 9-12V DC-IN interface
- Development board clock resources: 33.33M (PS), 50M (PL)
- Ethernet: Gigabit RTL8211E, RGMII interface, one PS, one PL
- USB interface: USB2.0, PS terminal, support for HOST and SLAVE function
- Debugger: onboard UART+JTAG downloader, supporting all development of ARM and FPGA.
- SD card: SD0 of PS, support for boot (SD support up to 32G)
- HDMI-compatible interface: one HDMI-compatible mini output, maximum support 1080 at 60Hz.
- LED: one PS pin button, two PL pin button; 2 PS LED, 4 PL LED
- Power-on setting switch: a BOOT dial switch used to start setting
- Buttons: two PS buttons and one PL button, one reset button
- Start setting switch: a BOOT dial switch used to start setting
- Onboard OLED module: 0.96-inch 128x64 mono OLED, SPI interface, based on PL
- Camera interface: one MIPI CSI camera module
- Onboard FLASH: W25Q128FVSIG, 128Mbit (16Mbytes)
- 40-Pins expansion IOs: including 34 single-end IO ports, BANK13, 3.3V power supply
- System reset: one system reset (POR) button
- Development board indicator: DONE, USNCPEN, power input indicator
- Development board power supply system:
  Onboard inner-core power supply: 1.0V/6A
  Others: 1.8V/3A, 1.5V/3A, 3.3V/3A
  FMC BANK34 35 power supply: 2.5V/3A
  Expansion IO port 40P BANK13 power supply ADJ2: 3A/3.3V
- Note 1: it can provide power supply in Type-C except for DC-IN, all other TYPE-C are suspended and have no power supply function.
- Note 2: FMC using BANK34 35 as HR BANK, and only 2.5V ADJ1 voltage supports LVDS_25 differential standard.
- Note 3: 40P using BANK13 as HR BANK, and the design is single ended signal.

AD9361 Main Chip Parameter:
- Main chip model: AD9361bbcz
- RF range: 70MHz - 6.0GHz
- Signal data bandwidth: 200K - 56MHz
- Transceiving channels: 2 receiving and 2 transmitting, and quadrature modulation, support simultaneous transmission of 4 groups of data

RF Part Functional Interface Parameter:
- FMC type: standard FMC LPC interface, compatible with HPC
- Antenna interface: SMA female connector
- Clock: onboard 40MHz/5ppm passive crystal oscillator, support SMA external clock
-Power monitor: 2 TX_MON interfaces, SMA female connector
- EEPROM: one FM24C02 EEPROM
- RF front-end balun: model TCM1-63AX+, bandwidth 10MHz-6.0GHz
- PCB wiring: all data interfaces are differential, and all other control signals are single ended and of equal length.
- Sub card power supply: 3.3V power supply from FMC interface; and IO interface power supply from ADJ
- RF LDO linear power supply: wireless LO power supply 1.3V/1.5A power supply 2-channel LDO
- PCB RF impedance: 50ohms
- PCB size: FR4, 1.6mm (thickness), 10 layers PCB

Package Included:
- 1 x Development Board
- 2 x Type-C Data Cable
- 1 x Common Acrylic Board
- 1 x Front Anti-static Acrylic Board (onboard)
- 4 x Nylon Stud (onboard)
- 1 x 9/12V Power Adapter
- 1 x USB Type-C to A Adapter
- 1 x Mini HDMI-compatible to Standard HDMI-compatible Adapter

Note:
- AD9361 Mini sub card is not included.
