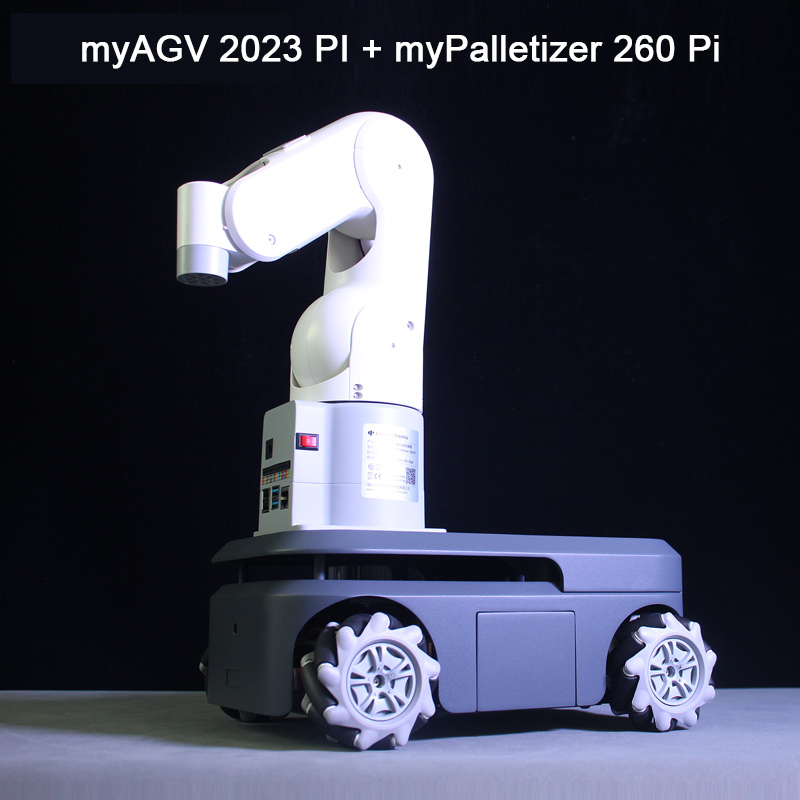

Compound Robot Hybrid Robot MyAGV 2023 PI 4WD ROS Car Robot Car + MyPalletizer 260 Pi 4DOF Robot Arm

Compound Robot Hybrid Robot MyAGV 2023 PI 4WD ROS Car Robot Car + MyPalletizer 260 Pi 4DOF Robot Arm

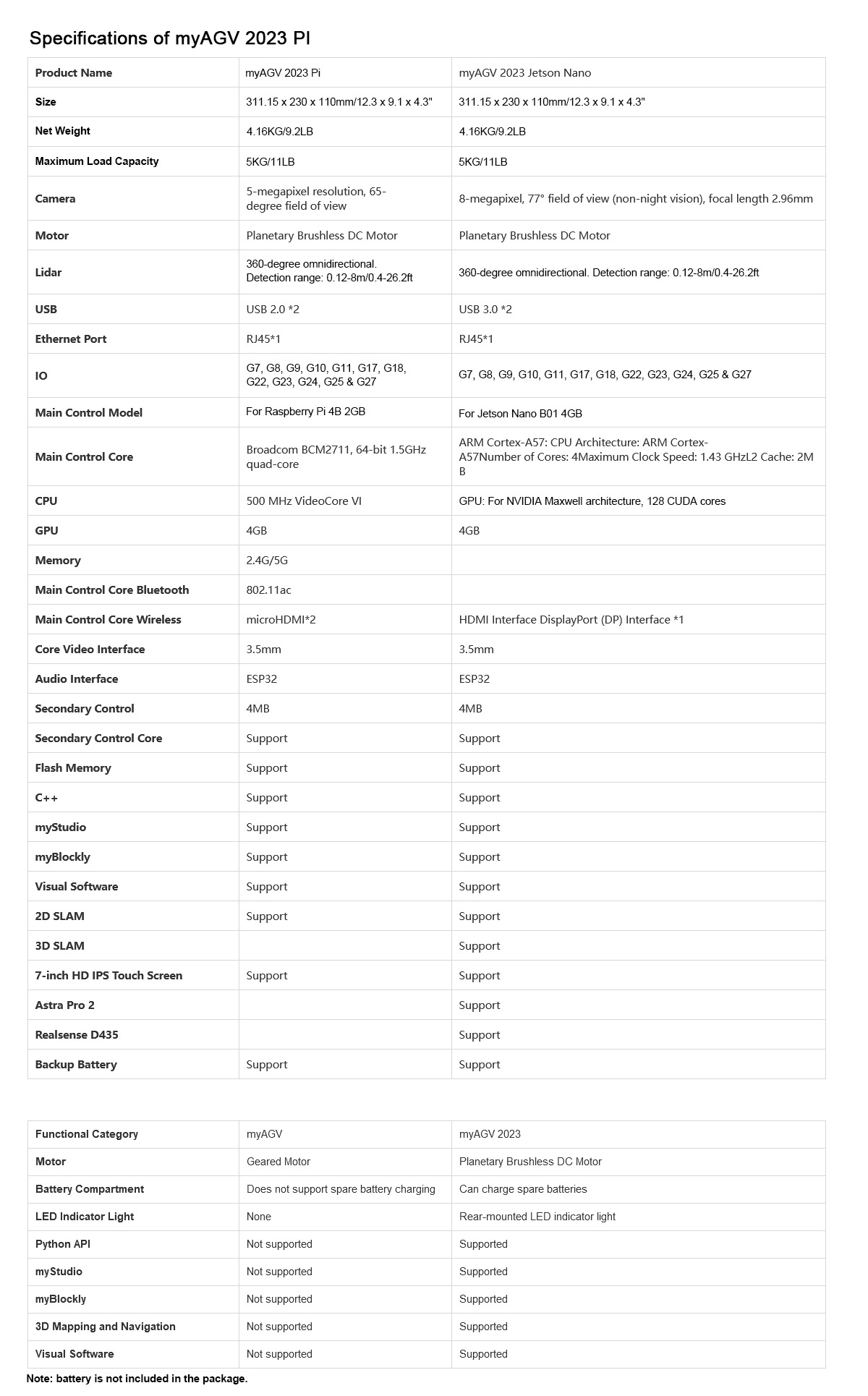

MyAGV 2023 PI:
I. Advantages:
* High-performance navigation
* 2D SLAM mapping and navigation
* ROS platform is supported
* Compatible with 5 types of robotic arms
* 360° Lidar
* 5000g/11lb maximum payload

II. Features and Applications:
MyAGV 2023 PI is powered by a core board for Raspberry Pi 4B, paired with the customized Ubuntu Mate 20.04 operating system, ensuring a smooth and user-friendly experience. myAGV offers a wide range of features, including 2D mapping and navigation, graphical programming, visual software, ROS simulation, gamepad and keyboard control, making it the top choice for research, education, and individual makers.

Education and Research
The myAGV 2023 series is equipped with high-performance planetary brushless DC motors, providing it with increased power for a wider range of more complex application scenarios. This significantly enhances the accuracy of autonomous navigation. Whether in laboratory research or classroom teaching, this chassis offers comprehensive support, helping you explore the unknown and making research and education more flexible.

Innovative Development
The myAGV 2023 series builds upon the foundation of myAGV, retaining all the features of myAGV, and adding new functionalities like visual software, graphical programming, and various optional accessories. It offers greater user-friendliness and can meet the diverse needs of different users for personalized scenario development.

Business Exploration
The myAGV 2023 series can be equipped with Elephant Robotics' five types of robotic arms. myAGV 2023 + Robotic Arm = Infinite Possibilities. With autonomous navigation, machine vision, and end effectors, it can simulate various business scenarios and meet the application requirements of complex projects. It supports composite robot kits, simulating warehouse logistics and sorting scenarios, making it suitable for business research and composite robot scenario demonstrations.

Excellent Configuration
A hardcore product configuration that fulfills your embedded development needs, with versatile IO interfaces and screen displays, allowing you to bring your ideas to life.
* ESP32 core control
* For RASPBERRY PI 4B
* Spare battery compartment x 1
* micro HDMI x 2 and USB x 2
* Suction pump slot x 1
* RJ45 x 1 and GROVE x 1
* High performance planetary brushless DC motors x 4

Customized Robot Operating System
System developed over three years, it offers a near-desktop PC experience. The myAGV 2023 system not only has built-in environments like ROS and Python but also features robot development software like VSCode, VNC and SSH. No complicated configuration needed. It also offers automated update software, supporting one-click updates for the corresponding development environment. Simplifying the process makes robot applications easier.

Easy Robot Programming
myBlockly, a drag-and-drop programming software, is offered for beginners. With block-based programming and graphical debugging tools, even novices can easily control a robotic arm. Python 2/3 development environment supports various development driver libraries like QT and pymycobot. It meets advanced development needs in robot control, image recognition, and front-end development.

myStudio
MyStudio, a brand new upgrade, says goodbye to the old version's inability to connect to the internet for downloading the latest firmware. With cloud-based updates and real-time synchronization, it further enhances the user experience.

MyPalletizer 260 Pi:
Appearance is Fully Wrapped Design
The optimal space-removing fin design concept that can be loaded into a backpack subverts the traditional link-type educational four-axis robotic arm.

Embedded Ecology for Raspberry Pi
1.5GHz 4-core microprocessor for Raspberry Pi 4B, powerful AI computing power, infinite possibilities for development.

Built-in graphical programming Blockly
It is easy to get started and use, and the graphical programming language allows you to easily start the journey of using the robotic arm.

Compatible with all my series accessories
The patented hole design for Lego is shared globally, and the my-series hardware ecological platform concept is implemented, and the end accessories are plug-and-play.

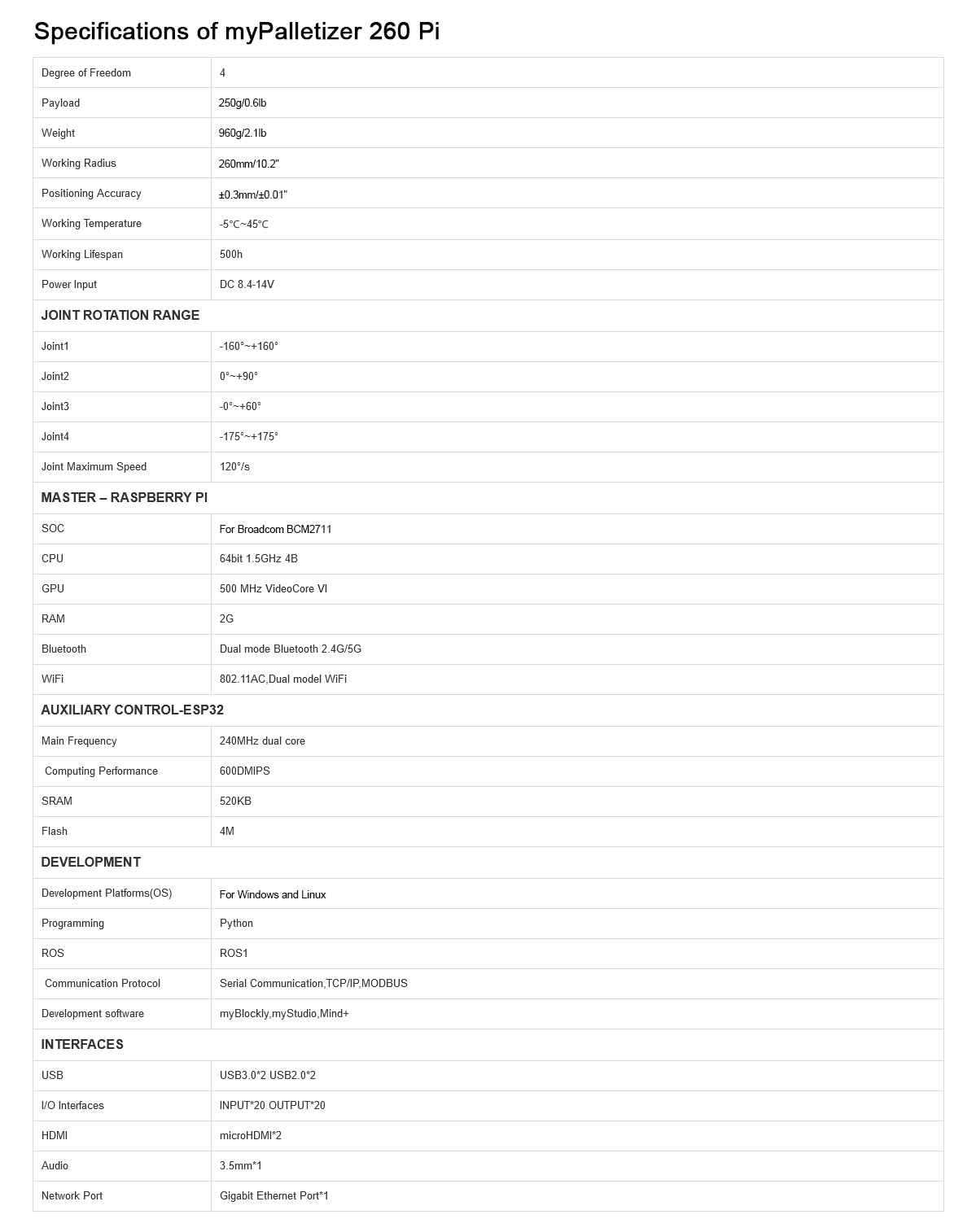

Parameters
Four degrees of freedom joint motion, 260mm/10.2" radius of motion, to help achieve your ideal control.

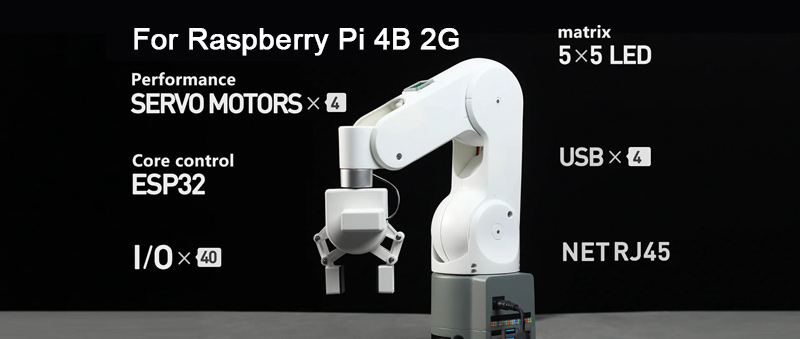

Excellent Configuration
myPalletizer is equipped with complicated and intelligent configuration, which highly satisfies your demands of creative secondary developments.

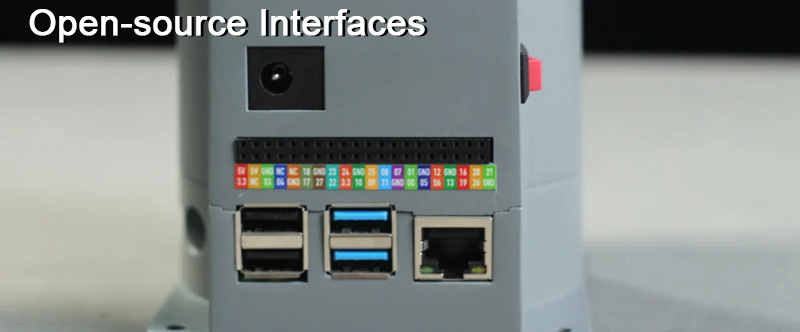

Open-source Interfaces
Based on different kinds of applications, open-source to its interfaces and enables to achieve objects recognition, facial recognition, image recognition etc.

Mainstream Programming Languages
It supports for Python, C++, C#, etc.

ROS Supporting
Developing in ROS - the world's mainstream robot communication framework, you can control myPalletizer and conduct algorithm verification under a virtual environment, which reduces the requirements for the experimental environment and improves the experimental efficiency.

Package Included:
* 1 x MyAGV 2023 PI Robotic Car
* 1 x MyPalletizer 260 Pi
