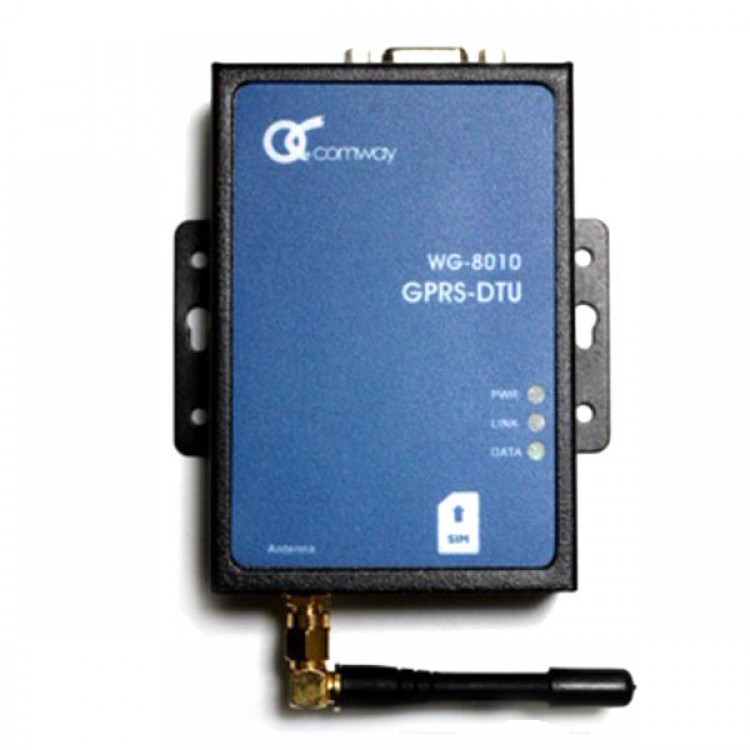

COMWAY WG-8010-232 GPRS DTU DTU Wireless Digital Module w/RS232/485 Port

COMWAY WG-8010-232 GPRS DTU DTU Wireless Digital Module
Descriptons:
- WG-8010 built-in industrial GPRS wireless module, to provide standard RS232/485 data interface, easy to connect RTU, PLC, industrial computer and other equipment, complete initial configuration only once, the user equipment can and data center through the GPRS wireless networking connection, realize the data transmission completely transparent
- Accompanied with COMWAY wireless serial software, COMWAY DTU configuration software, transparent transmission test server software, users build fast server test environment and debugging system and communication. COMWAY wireless serial software support and control, jie control and market mainstream configuration software, apply to the PLC, smart meter equipment such as remote control and data collection.
- The company provide the customers based on COMWAY communication protocols of the DLL API and the development of sample program, and to provide customized services, and assist users will WG-8010 GPRS DTU connected to the existing system.

Specifications
- GSM/GPRS communication parameters:
- Standard: GSM/GPRS
- Band selection: 900/1800 cycle

- GPRS Multi-slot Class: Class 10
- GPRS Terminal Device Class: Class B
- GPRS Coding Schemes: CS1 to CS4
- SIM card parameters:
- SIM Control: 1.8 v and 3 v
- Serial parameters: RS-232 / RS-485
- Serial interface communication parameters:
- Baud rate: 300-115200
- Data bits: 5,6,7,8
- Stop bits: 1,1.5, 2 (when the check digit = None)
- Parity: NONE, EVEN, ODD, SPACE, Mark
- Serial tube feet definition:
- RS-232: TxD, RxD, GND
- RS-485: A +, B-GND
- Support the software and agreement:
- Agreement: TCP/IP, UDP
- Provide Windows95/98 / ME2000 / XP / 2003 / VISTA/SERVER-2008 / NT environment configuration software and client dynamic link
- Library API.
- Shell material: iron
- Weight: 220 g
- Size: 108 x74x35mm (not including antenna and installation put his hand)
- Environmental parameters:
- Working temperature: 300- C to 750 C

- Work humidity: 5 to 95% RH
- Power supply requirements:
- The input voltage: 5 to 16 VDC
- Average working current: 300 to 500 mA @ 5 v
- The maximum working current: 2 A @ + 5 VDC

- Standby current: 20 mA @ + 5 VDC
- Warranty: 2 years

Application fields
- Z LED the remote wireless release
- Z power concentration meter reading
- Z city street light control

- Z gas, water concentration meter reading
- Z heating system of real-time data collection

- Z meteorological information collection
- Z industrial control PLC remote data acquisition

Ordering information
The product model
WG-8010-232
WG-8010-485
WG-8010-422
