CONSPIT CPP EVO Hydraulic Pedals Sim Pedals Racing Simulator (2 Pedal Set) w/ 20Mpa Hydraulic Sensor

CONSPIT CPP EVO Hydraulic Pedals Sim Pedals Racing Simulator (2 Pedal Set) w/ 20Mpa Hydraulic Sensor

Advantages:
- Conspit 2.0 Gen. Dual-stage hydraulic system
- 20Mpa high-precision hydraulic sensor (=200kg)
- Step-wise brake strength adjustment with hydraulic preload fine-tuning
- Independent travel and force adjustment for throttle
- M-DVF Vibration feedback - compatible with platforms for iRacing and SimHub
- Custom mapping curve
- Full metal construction

Features:
The 2nd Gen. CONSPIT hydraulic system with dual-stage cylinders
- The dual-stage hydraulic cylinder design provides a two-stage pedal feel, simulating the actual working state of wheel cylinder pistons in a real car's braking system, to deliver a more precise braking experience. The preload force of the front and rear stages can be independently adjusted, allowing drivers to personalize and fine-tune the system according to their individual preferences.
- When the brake pedal is pressed, hydraulic fluid flows through the damping holes into the elastomer cylinder, pushing the piston. Initially, the softer front-stage elastomer is compressed, creating a softer initial pedal feel. As the piston continues to move, both the front and rear elastomers are compressed simultaneously, resulting in a firmer pedal feel in the later stage.

20Mpa high-precision hydraulic sensor
- The CONSPIT 2nd Gen. hydraulic system is equipped with a 20Mpa high-precision hydraulic sensor, capable of detecting even the slightest changes in brake pressure and translating them into subtle adjustments in braking performance. The sensor's wide range ensures that professional sim racers can fully leverage this system to achieve the most realistic racing dynamics.
- CONSPIT's deep expertise in sim-racing hydraulic brake systems is one again on full display. The second-generation hydraulic system features a completely redesigned internal layout, with enhanced sealing and durability, along with carefully selected materials. These improvements result in superior high-pressure endurance, ensuring stable performance even in the most demanding racing environments.

Exceptional adjustability
- Designed from the perspective of professional drivers, the CPP EVO further expands the boundaries of adjustability in the sim racing experience.

Ergonomic adjustment
- The pedal spacing, surface angle, panel height, and footrest position are all adjustable, ensuring exceptional comfort whether you're applying heavy braking or making precise maneuvers.

Pedal feel adjustment
- Throttle: four levels of step-wise quick adjustment for pedal force, decoupled adjustment of pedal travel and spring preload.
- Brake: four levels of step-wise quick adjustment for pedal force, independent adjustment of preload for the front and rear stages.

Race-grade full CNC aluminum alloy
- CNC-machined from 6061-T6 aluminum alloy, with a fine sandblasted and anodized finish that provides a durable and robust coating.

M-DVF vibration module
- Equipped with the M-DVF vibration feedback module as standard, addressing crucial information often missing in sim-racing
- Supports for iRacing Native Vibration Feedback
- Supports for SimHub Shakelt Motors

CONSPIT LINK 2.0
- Users can make quick settings in the Conspit Link 2.0 driver software. The software provides useful functions such as customizing pedal curves and limiting brake axis input values.

Specifications:
- Main material: Aluminum alloy
- Mounting: Finished bracket and aluminum profile
- Platform: PC
- Connection: USB direct connection and CONSPIT CAN (Up-coming)
- Cable: C-C cable with C-A adapter
- Software: CONSPIT LINK 2.0 and SimHub

Compatibility:
- Mounts on a bracket: The CPP EVO can be mounted directly to a GT-Lite, FP-Lite, GT-S, aluminum profile stand, and other sim racing stand through the mounting holes on the bottom.
- Direct connection to Ares series wheelbases: In the future, a Type-C to Type-C cable can be used to connect directly to the Ares series wheelbases, creating a more convenient and complete sim racing ecosystem.

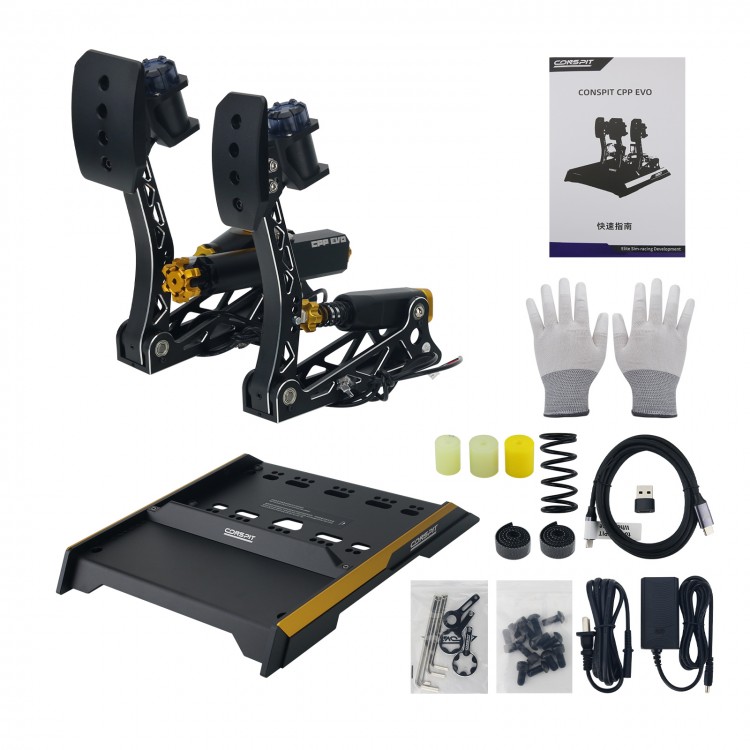

Package Included:
- 1 x 2 Pedal Set

Packaging Details:
- Weight: 7.2kg
