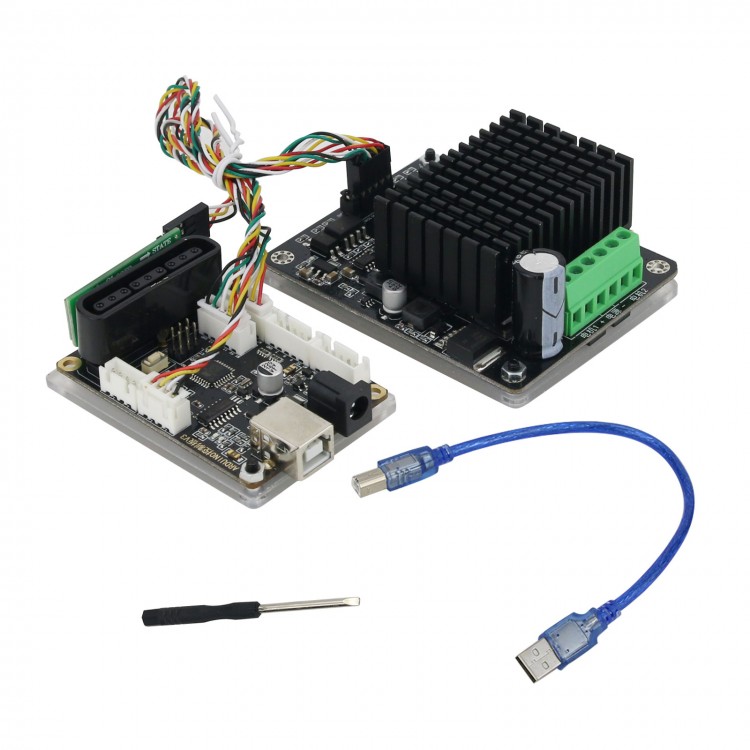

Controller Board + RC Remote Controller for PS2 + DC Motor Driver Board for Wheeled Cars & Tank Cars
Package Included:
* 1 x Controller Board
* 1 x Remote Controller for PS2
* 1 x Receiver of Remote Controller
* 1 x DC Motor Driver Board (Wired)
Programmable Controller Board:
* Processor: ATmega28
* Working voltage: 5V
* Input voltage: (recommended) 7-12V
* Digital IO pins: 14 (6 of which are used as PWM outputs)
* Analog input pin: 6
* IO-pin DC current: 40mA
* 3.3V-pin DC current: 50mA
* Flash Memory: 32KB (ATmega328, of which 0.5KB is used for bootloader); SRAM 2KB (ATmega328)
* EEPROM: 1KB (ATmega328)
* Operating clock: 16MHz
* For PS2 Remote Controller
* Support control via host computer programming
*
I2C port: can be connected to sensors with I2C interface, such as
temperature and humidity sensors, gas sensors, light sensors and gesture
recognition sensors;
* Serial port: can be connected to modules with serial port such as Bluetooth module and Wifi module;
*
M1, M2, M3, M4 can be connected to the motor driver board to control DC
motor, and they can also be used as common GPIO ports; The above usage
(except for controlling DC brushed motors) needs to be developed by
yourself, and relevant code and technical support are not provided;
* 5V --- 5V via a voltage regulator or USB 5V to power the 5V chip on the UNO.
DC Motor Driver Board:
* Item name: 20A high-power H bridge DC brushed motor driver board
* Input signal optoelectronic isolation circuit
*
Rated output reference power of each way: (12V power supply) 240W; (24V
power supply) 480W (In the case of long-term use, motor selection
reference: 12V motor is recommended to be less than 75W per channel; 24V
motor is recommended to be less than 150W per channel)
* 5V output current: 200MA max
* Number of output channels: 2 channels
* Working voltage: 8-30V
* Maximum current of dual channel: 20A*2
* Single-way rated current: 20A
* Control signal voltage: 3.3~5V
* Control signal current of each channel: 2~10mA
* Support PWM frequency: 400~1K
* Support PWM duty cycle range: 0~100% (the larger the duty cycle, the faster it is)
* Operating temperature: 0 to 60°C
* Dimensions: 90 x 70 x 32mm/3.5 x 2.8 x 1.3" (hole spacing 80 x 63mm/3.1 x 2.5")
* Weight: 110g/0.2lb
Note:
* Both power supply ports must be connected to the power supply at the same time before they can be used.
* Battery is not included.
