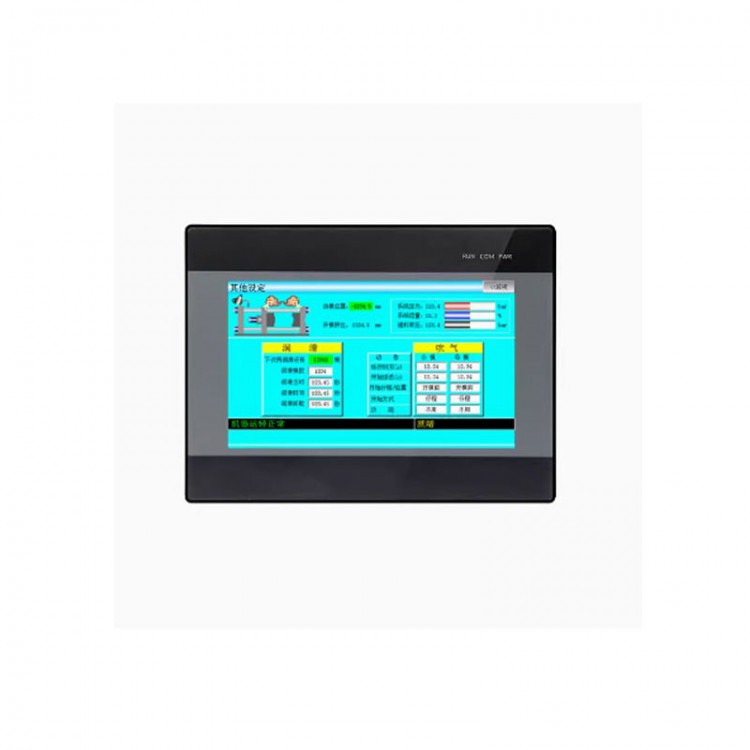

Coolmay MX3G-70C-48MT 7" HMI PLC All in One HMI with Built-in PLC (24DI 24DO Transistor Output)

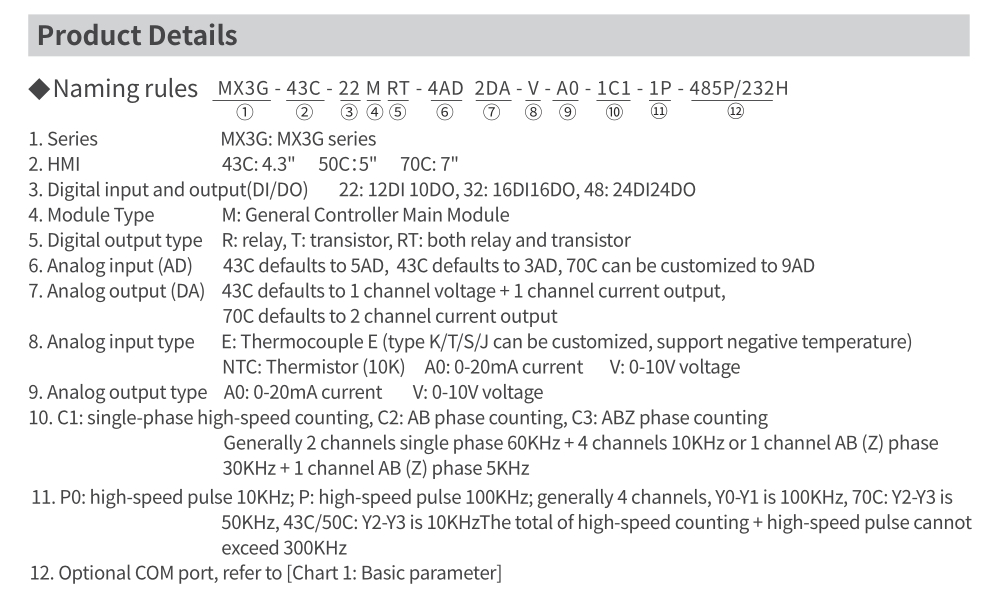

Advantages of the MX3G Series PLC HMI:
* PLC programming software is compatible with GX Developer 8.86 / GX Works2 (supports Ladder Diagram and SFC language, but does not support structured programming/labels).
* HMI uses TPWorks programming software for TP HMI.
* High performance: It is compatible with the FX3S PLC, offering high processing speed.
* Military-grade 32-bit CPU is adopted, which is faster and better suited for industrial environments with high electromagnetic interference.
* Special encryption prevents unauthorized reading. 8-bit encryption with a default password (12345678) effectively prevents unauthorized access to the ladder logic program.
* Ports: The system comes with 1 HMI download port and two PLC programming ports (RS232/Type-C).
* The PLC of the MX3G-70C all-in-one unit includes 1 RS485 port, while the HMI includes 1 RS232 port (which can be switched to 1 RS485). The PLC of the MX3G-43C includes 1 RS485 port, while the HMI includes 1 RS232 port. These ports are used for connecting external HMIs, inverters, and other equipment.
* It supports for Mitsubishi programming port protocol, MODBUS protocol, and RS protocol, enabling easy PLC interconnection and communication with external equipment.
* High-speed counting: Supports two conventional single-phase 60KHz inputs + four 10KHz, or one AB (Z) phase 30KHz + one AB (Z) phase 5KHz. High-speed pulse support includes 4 channels: For 70C: Y0-Y1 up to 100KHz, Y2-Y3 up to 50KHz. For 43C: Y0-Y1 up to 100KHz, Y2-Y3 up to 10KHz. The total transmission for high-speed counting + high-speed pulse cannot exceed 300KHz. Acceleration and deceleration are independent.
* Supports multiple analog input/output types, either individually or mixed. MX3G-70C supports up to 9 AD and 2 DA channels. MX3G-43C supports up to 5 AD and 2 DA channels. Analog input/output precision is 12 bits.
* The MX3G-70C supports up to 24DI/24DO (maximum 12 for MR version), with digital output options including transistor MT (max load: 500mA), or a mixed output of relay and transistor (MRT).
* The MX3G-43C supports up to 12DI/10DO (maximum 8 for MR version), with digital output options of transistor MT (max load: 500mA) or a mixed output of relay and transistor (MRT).
* Convenient wiring: All wiring terminals use 3.81mm pitch pluggable terminals, making it easier for customers to use.
Packing List:

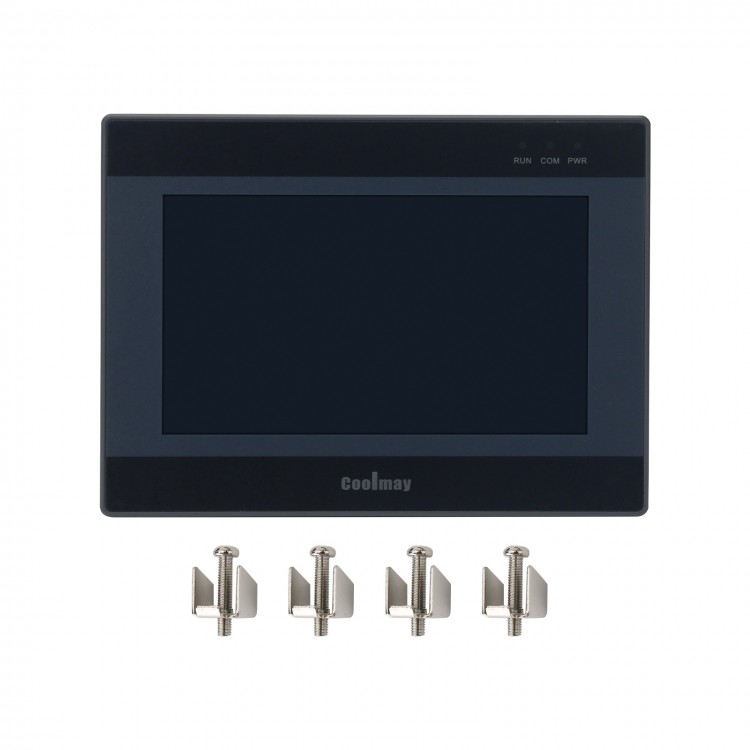

* 1 x MX3G-70C-48MT HMI PLC
Packaging Details:
* Weight: 1.2kg
