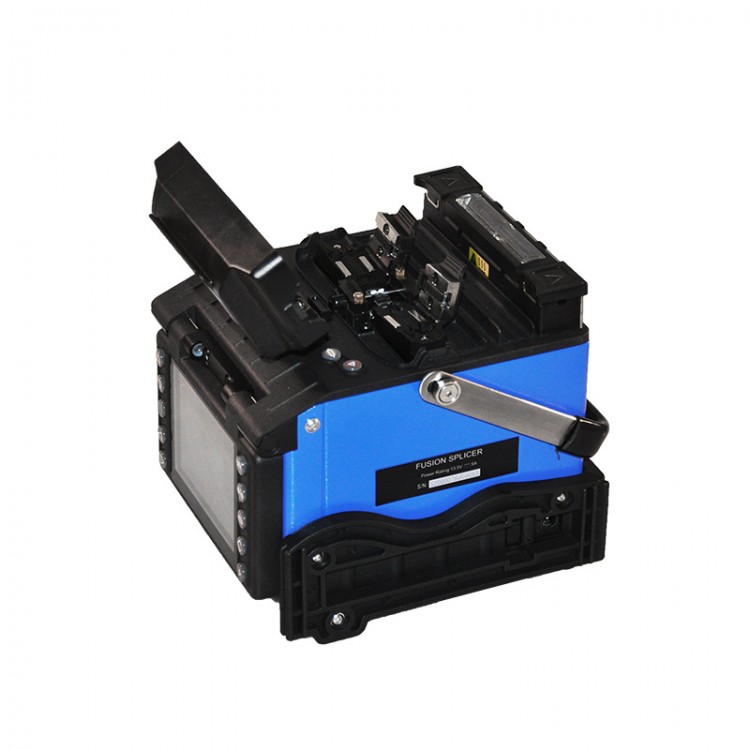

Core Alignment Fusion Splicer Fiber Optic Tools Kit For Naked Fiber Pigtails Jumper Wires JW4108M

Core Alignment Fusion Splicer Fiber Optic Tools Kit For Naked Fiber Pigtails Jumper Wires JW4108M

Features:
- Core to core alignment by profile alignment system technology
- Fiber core can be display clearly
- Single X or Y view and X & Y view simultaneously
- Automatic checking & display quality of cleaved end face
- 3.5-inch color LCD monitor
- Software upgraded via USB interface
- Rich operating interface, internal and intelligent menu
- 18-second automatic heating system
- Tungsten Steel Electrode: Of high hardness, friction resistance, heat resistance and corrosion resistance. Good strength and toughness
- Wind-proof & shock-proof performance makes it fit sever environments like desert, snowy places, high altitude areas up to 5000m, high temperature conditions. Resistant to strong wind 15m/s
- Designed with wind-proof shield for field jobs
- Perfect for naked fiber, pigtails, jumper, leather wire
- Quad-core chip ensures fast response and synchronous operation

Specifications:
- Applicable Fibers: SM (G.652 & G.657), MM (G.651), DS (G.653), NZDS (G.655), and self-defined fibers
- Splicing Loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS)
- Return Loss: >60dB
- Typical Splicing Time: 9s (standard SM fiber)
- Typical Heating Time: 35s (Heating time can be set. Heater temperature can be adjusted)
- Fiber Aligning Method: Fine alignment, core alignment, cladding alignment
- Fiber Diameter: Cladding diameter: 80-150μm; Coating diameter: 100-1000μm
- Fiber Cleaved Length: 8-16mm for coating diameter less than 250μm; 16mm for coating diameter 250-1000μm
- Heat-shrinkable Sleeve: 60mm, 40mm and a series of miniature sleeves
- Tension Test: Standard 2N (Optional)
- Fiber Clamp Tool: Removable. Fit naked fiber, pigtails, jumper wires, and leather wire. Connectors like SC are optional
- Magnification Time: ≥200X (X-/Y-axis display)
- Monitor: 3.5" TFT color LCD monitor. Contents flip to enable bidirectional operation
- External Interface: USB port to download data and upgrade software
- Splicing Modes: 53 groups of factory modes, 40 groups of user modes
- Heating Modes: 11 sets of factory modes, 24 sets of user modes
- Storage of Splicing Result: 4000 latest results can be stored
- Power Capacity: ≥300 cycles for splicing & heating (in typical environment)
- Charging Time: ≤3.5 hours
- Power Adapter: input AC 100-240V, 50/60Hz, output DC 13.5V/4.8A
- Operating Conditions: Temperature -10℃ to 50℃; Humidity <95% RH (non-condensing). Working Altitude: 0-5000m; Max. Wind Speed: 15m/s
- Built-in Lighting Lamp: Make it easier to put fiber in place at night
- Dimensions: 125 x 105 x 113mm (LxWxH)
- N.W.: 1.48kg

Package Included:
- 1 x Set of Fiber Splicer Machine
