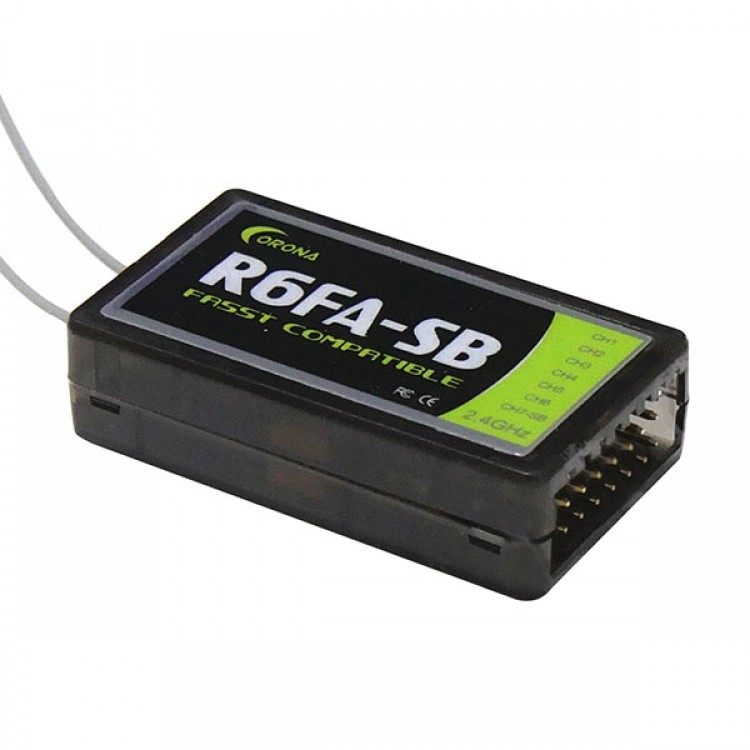

CORONA 6Ch 2.4G FASST Receiver S.Bus R6FA-SB for 8FG 10CG 12FG TM14 Radio Transmitter

Compatibility:

- The CORONA 2.4GHz Spread Spectrum FASST Compatible Receiver is designed for use with FUTABA’s FASST 2.4GHz transmitters; including the 3PM,3PKS,3VCS,3GR,4PK(S),TM7, TM8, TM10, TM14 and the T6EX-2.4G, 7C-2.4G, 8FG, 10CG, 12FG. The R4FA-SB and R6FA-SB receivers supply a more useful mode for users. Both the R4FA-SB and R6FA-SB support FUTABA’s FASST air system and surface system. The R4FA-SB supports 7-channel with continuous PPM (positive and negative) output ,RSSI output and S.BUS output, R6FA-SB supports 6 channel high speed PPM(HS) mode to optimize helicopter response control and S.BUS output.



Specification:

- Type: R6FA-SB

- Channel number: 6ch

- Operating Current: 50mA max

- Operating Voltage: 3.6 ~10V

- Latency: R4FA-SB’s description
- Sensitivity: about -100dBm

- Operation temperature:

-10~80 deg C
- channel number: 6



R6FA-SB’s description:

- 7mS for independent 6 channel (HS) output@ FASST multi-channel mode

- 14mS for independent 7 channel (LS) output and S.BUS output @ FASST multi-channel mode

- 8ms for independent 6 channel (HS) output@ FASST 7ch mode

- 16mS for independent 7 channel (LS) output and S.BUS output @ FASST 7ch mode

- 14ms for independent 3 channel output@ FASST surface system C1 CODE mode



Package Includes:

- 1 x 2.4G FASST receiver R6FA-SB
