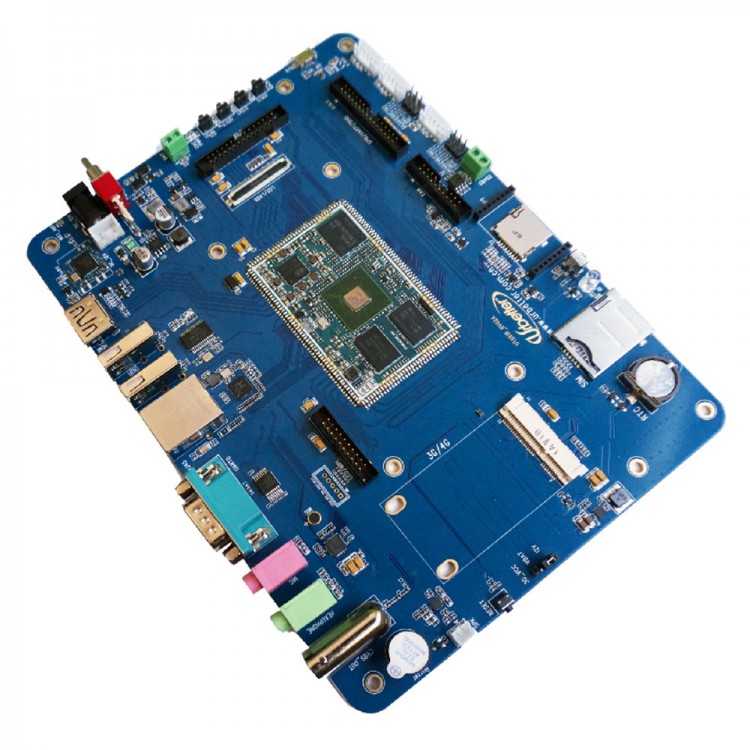

Cortex A53 Octa Core ARM S5P6818 Development Board Android 5.1 Bluetooth 4.0
Specifications:
- Base board size: 193*150mm
- TLL seriel port: 4 channel
- RS232 seriel : 4 channel
- USB HOST: 2 chanenl USB HOST interface 2.0 rpotocal
- USB OTG: 1CH USB OTG 2.0 protocal
- Net port: 10M/100M/1000M self adaptive
- HDMI interface: HDMI 1.4A maximum resolution 1920*1080
- Display interface: Support LVDS, MIPI, HDMI HD interface
- CVBS OUT: Support 1CH CVBS output interface
- MIC: Support -42dB high sensitivity mic input
- SPI:2 CH
- TF: TF card maximum support 32G
- IR: Support infared receiving and sending
- RESET: Hardware reset button
- Key: oNBOARD power home back KEY
- RTC: Backup batteyr
- DC: DC power input interface, support 12-23V wide power input
- SDIO: Can expand 1CH
- ADC: 3CH
- G-Sensor: 3 axis gravity sensor
- Onboard buzzer
- Camera module: 500W
- 3G/4G Support
- Onboard wifi +BT module
- GPS: Support GPS/BD module
Core board specification:
- CPU: Samsung S5P6818, octa Cortex-a53
- RAM: 2G DDR3
- ROM: 8GB EMMC
- PMU: AXP228 power chip
- Core board size: 62*42mm
- Temperature: -20~85 degree C
- System support Android 5.1
- Working voltage: 12V/2A
Package list:
- 1 x Development Board
