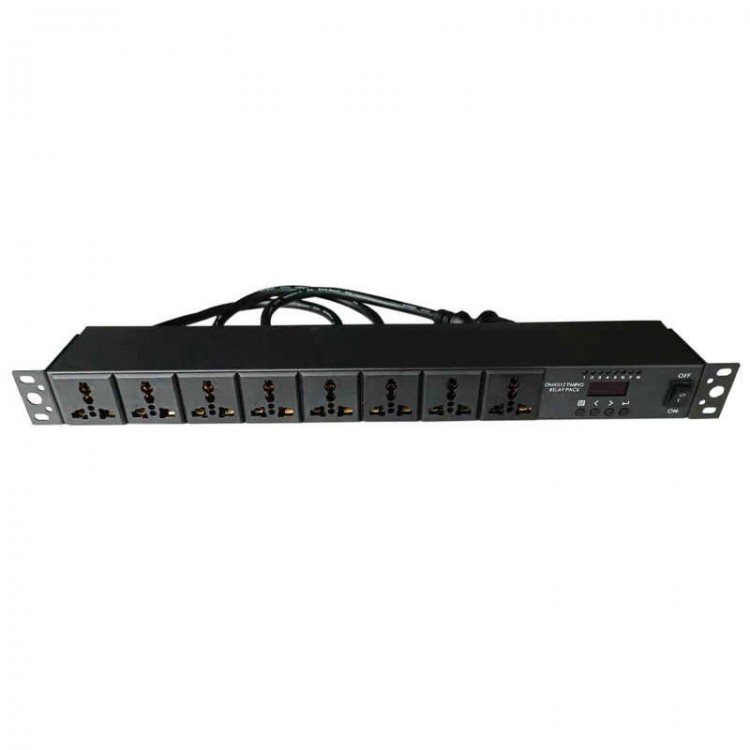

CP0802 Power Sequence Controller Power Supply Sequencer with 8 Sockets & Smart Switch for DMX512

CP0802 Power Sequence Controller Power Supply Sequencer with 8 Sockets & Smart Switch for DMX512

Application:
The sequencer mode of this power sequencer can switch the power supply of electrical equipment sequentially and delayed, which can avoid damage to the equipment due to the unstable signal during the on-off period. And it can also avoid damage to the electrical equipment due to the instantaneous large current surge caused by the power on and off. The intelligent switch mode of this product can realize the control of 8-channel intelligent switch by DMX512 signal or RS485 signal.

Features:
- 2 working modes: sequencer mode and smart switch mode
- Supports DMX signal control or RS485 signal control
- In RS485 signal mode, it supports the learning function of control code
- 8-channel intelligent switch function, and maximum output power of 1000W per switch
- Multiple installation methods: Can be fixed by a cabinet, light hooks and screws
- Mounting pieces have 4 adjustable directions. They can be installed in different directions, making it more convenient to use
- Working voltage: 90-240V/50-60Hz
- RS485 signal control mode: RS485 serial port code editing realizes system integration and panel remote control
- DMX512 signal control mode: It realizes remote control power on/off from the console
- DMX512 mode supports 2 channels, 8 channels and 10 channels. Different channel modes serve different purposes
- Sequencer mode: It is a multi-device power management device with delayed and sequential execution
- Manual control mode: Users can realize the sequencer control function through the panel switch
- Suitable for road guides, light strips, stage audio lighting, etc.
- Smart switch DMX512 sequencer: 8-way independent DMX is controllable. 1KW per channel and 6KW total load
- Main line: 3X4mm². The load power is 7~8KW

Package Included:
- 1 x Power Sequencer

Packaging Details:
- Weight: 2.35kg
