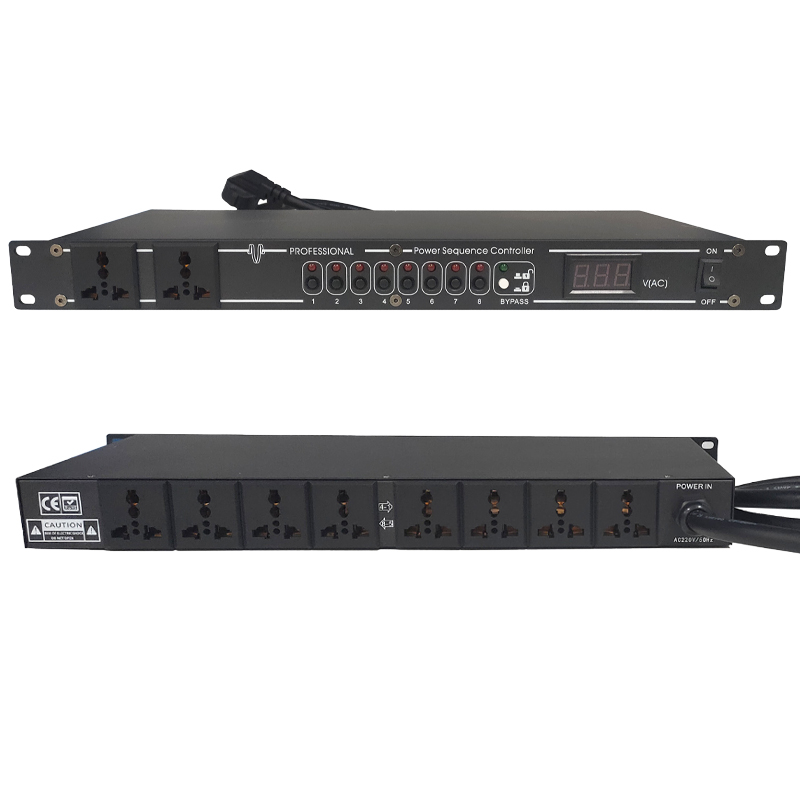

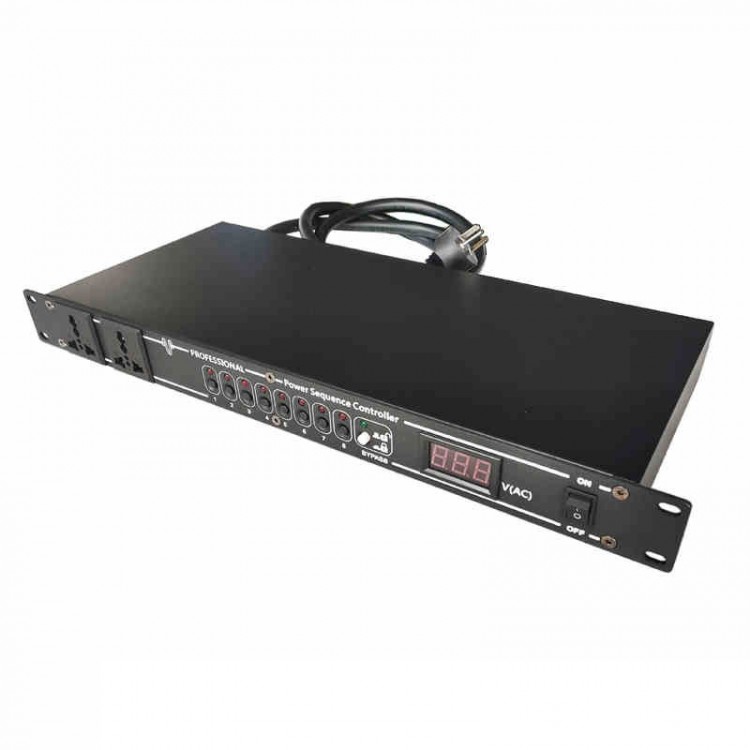

CP0803 (CP00803) 13000W Professional Power Sequence Controller w/ 8 Sequential Power Output Sockets
Introduction:
A power sequencer is a device used to protect electrical equipment from powering on and off, as well as to manage the power supply in a unified manner. It turns the electrical equipment on or off with sequential delays to ensure that no noise is introduced when the sound system is turned on and off. At the same time, it powers on or off the electrical equipment off-peak to avoid a strong instantaneous surge current, thereby protecting the safety of the electrical equipment and realizing the unified management of the power supply of the electrical equipment. In this way, human error can be avoided, thus ensuring the stability of the power system and the convenience of operation.
The power supply sequencer is used for centralized management of the power supply of electrical equipment. And its standard cabinet installation way makes it more suitable for unified management of the power supply of equipment in the cabinet.
Application scenarios include: sound engineering, television broadcasting systems, lighting signal cabinet systems, computer network systems and power facilities requiring sequential power supply or power distribution systems with relatively concentrated electrical equipment.
Features:

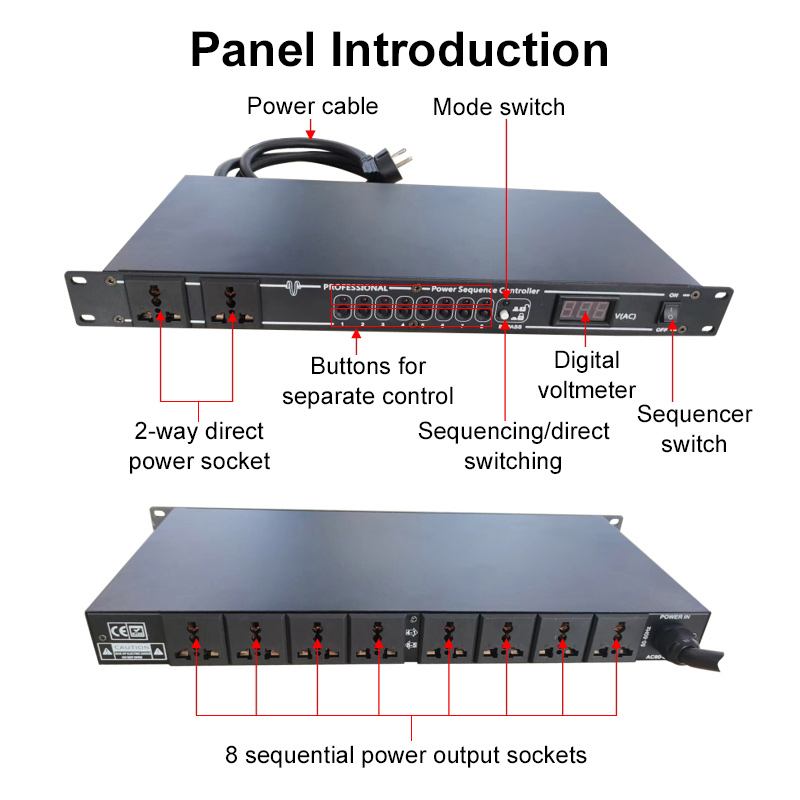

- 13000W power sequencer
- 2 working modes: sequencer mode + direct mode. Users can switch the working modes through a bypass switch
- 8 sequential power output sockets and 2 direct power sockets
- A sequencer switch can control the 8 sequential output power supplies to be turned on and off in sequence. The timing interval of each channel is 1 second
- 8 buttons for separate control. Users can manually control the power supply on and off for each sequenced output
- A digital voltmeter can monitor the change of on-site voltage in real time
- The maximum carrying power of each channel is 2KW, and the maximum carrying power of the whole machine is 13KW
- 10 universal power output sockets made of phosphor copper
- Centralized management and control of power supply applied to electrical equipment. Its standard cabinet installation way makes it more suitable for unified management of the power supply of equipment in the cabinet
Package Included:
- 1 x Power Sequencer
Packaging Details:
- Weight: 2.2kg
