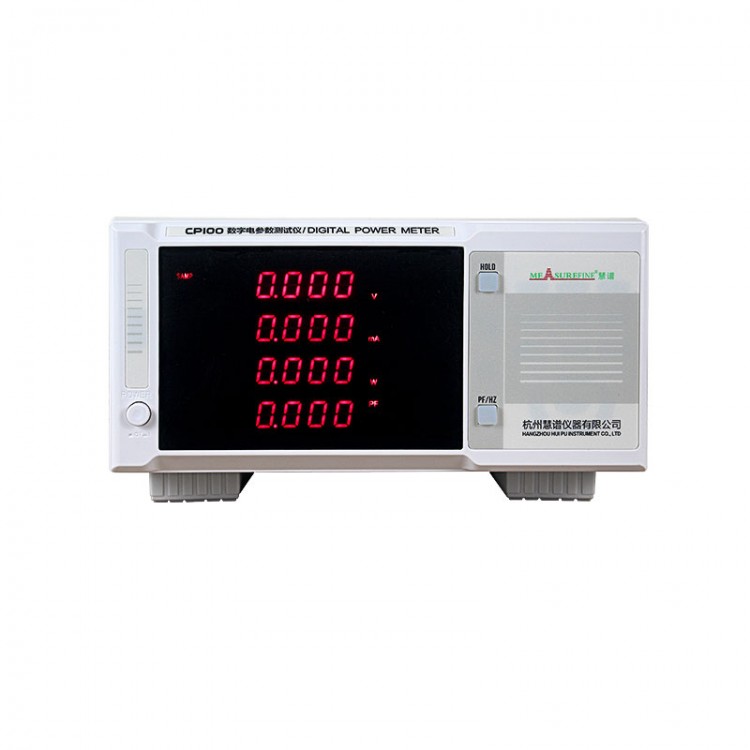

CP100 Basic Version Intelligent Digital Power Meter 220V High Precision Electrical Parameter Tester
Description:
- The CP series digital electrical parameter measuring instrument (also known as digital power meter) adopts high-performance sampling components internally and applies advanced PLL phase-locked loop technology and high-precision 32-bit A/D to quantitatively analyze waveform data, ensuring high accuracy and stability of the instrument. It has been widely used in the fields of home appliances, motors, power supplies, transformers, and lighting appliances. It is an ideal replacement product for traditional pointer meters and digital electrical instruments. It is a powerful and compact economical intelligent power measuring instrument. Electrical parameter measurements such as voltage, current, power, and power factor/frequency can be directly read through the instrument window, which is convenient and intuitive. The instrument has an automatic range switching function and also has a latch function.
Features:
- Portable economical single-phase digital power meter can meet basic power frequency electrical parameter measurement, accurately measuring voltage/current/power/power factor/frequency.
- It has multiple testing functions such as voltage testing, current testing, power testing, etc., which can meet the basic measurement of power frequency electrical parameters and have high cost-effectiveness.
- 7-inch high-definition touch screen.
- The instrument has automatic range switching function and latch function, which is particularly suitable for large-scale testing of production lines and no-load testing of energy efficiency products. The minimum current can range from 0.02mA to 20A, and can accurately test the small current of products under no-load conditions.
Specification:

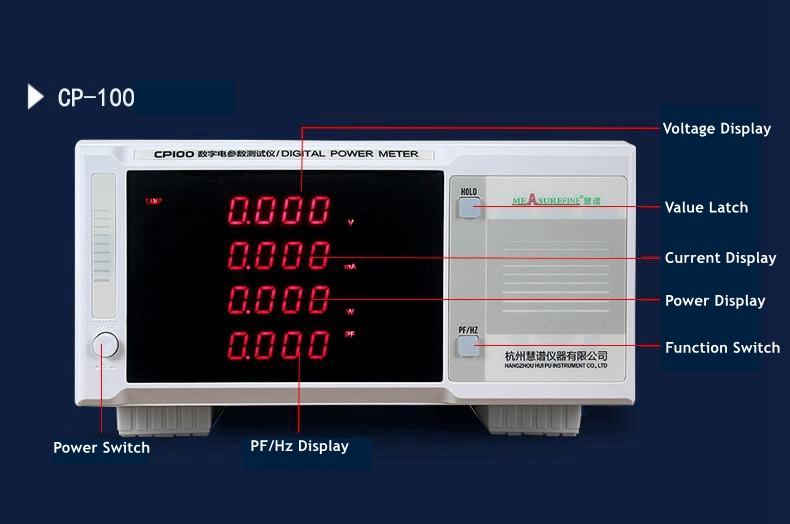

- Model: CP-100
- Display method: 4-bit HD LED display (red)
- Voltage range: AC 3 - 600V
- Current range: 5mA - 20A
- Power: 0.015W - 12000W
- Parameter display: V, A, W, PF, Hz
- Precision: 0.5 level
- Power factor: -1.000 - 1.000
Package Included:
- 1 x Digital Power Meter
