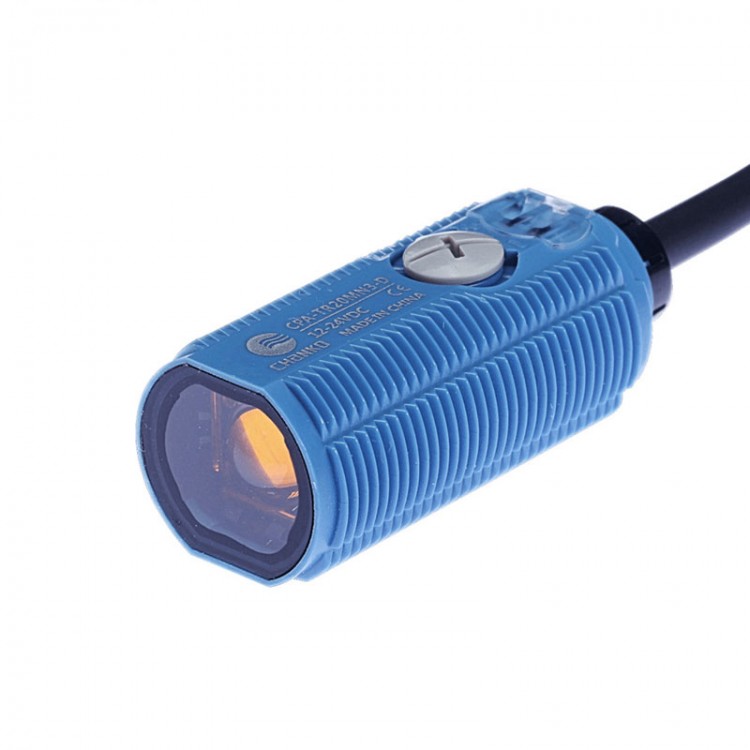

CPA-RMF4MN3 NPN Output Photoelectric Sensor Infrared Light Specular Reflection Type Sensor for Security Equipment

CPA-RMF4MN3 NPN Output Photoelectric Sensor Infrared Light Specular Reflection Type Sensor for Security Equipment

Description:
- CPA photoelectric sensors have multiple detection methods including diffuse reflection, reflection, mirror reflection, and background suppression; There are two emission light sources available: red light and infrared light. The mirror reflection detection distance can reach 4 meters, and the cylindrical shape design meets different installation requirements on site; Protection level IP67, meeting various harsh environments. It also has multiple output interface types and protection circuits such as relay, NPN, PNP, etc; The action mode and normally open and closed modes can be freely switched, making it convenient for selection. The product has passed strict testing and has strong stability and dry resistance.

Specification:
- Detection distance: 4m
- Direction angle: min. 2°
- Standard detection object: diameter≥7mm opaque objects
- Light source: infrared light
- Power voltage: DC12 ~ 24V ripple (p - p) 10% below (DC10 ~ 30V)
- Power consumption: <25mA
- Output mode: NPN; load current < 100mA, load voltage < 30V
- Action mode: Dark ON / Light ON (select through wire connection)
- Indicator: orange for action indication; green for stability indication; green for power indication
- Protection circuit: power reverse connection protection, surge absorption, load short-circuit
- Response time: 1ms
- Sensitivity adjustment: single turn knob
- Insulation resistance: 20Mohm above (DC500V meg-ohmmeter)
- Voltage resistance: AC1000V 50/60Hz 1min between the charging unit and the shell
- Using environment illuminance:
  Incandescent lamp: < 3000lx
  Sunlight: < 10000lx
- Using environment temperature: -25 ~ 55℃ for working; -25 ~ 70℃ for storage
- Using environment humidity: 35 ~ 85%RH for working; 35 ~ 95%RH for storage
- Anti-vibration: 10 ~ 55Hz dual amplitude 1.5mm X/Y/Z 2h in all directions
- Anti-shock: 300m/s² X/Y/Z 3 times in all directions
- Protection level: IEC standard IP65
- Formed cable: about 65g/2m
- M12 relay type: about 68g/0.5m
- Outer case material: ABS
- Lens/display window material: PMMA
- Knob material: POM
- Cable material: PVC

Using instruction:
- Conventional use: The specular reflection light switch includes a transmitter and receiver in the shell, and the light emitted by the transmitter is reflected back to the receiver from the reflector.
- Installation instructions: The photoelectric switch needs to be used in conjunction with the reflector, and the photoelectric switch can be directly installed on the installation hole or bracket.
- Adjustment instructions: Align the photoelectric switch with the reflector surface and connect the photoelectric switch to the power supply. The green LED should remain constantly on.
- Object detection: Place the detected object in the emitting beam, so that the light spot falls on the object. If the photoelectric switch detects an object, the orange LED will light up.
- Maintenance measures: It is recommended that you regularly clean the specular surface and check if the connectors and screws are loose.

Package Included:
- 1 x Photoelectric Sensor
- 2 x M18 Nut
- 1 x User Manual
