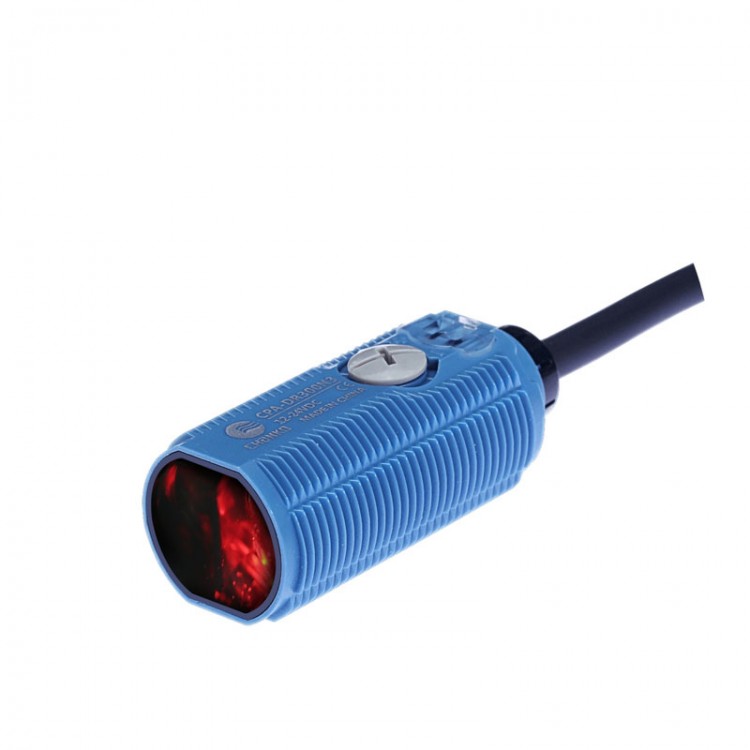

CPA-TF15MN3 NPN Output Correlation Type Photoelectric Sensor Infrared Light for Opaque Objects Detection

CPA-TF15MN3 NPN Output Correlation Type Photoelectric Sensor Infrared Light for Opaque Objects Detection

Specification:
- Model: CPA-TF15MN3
- Output: NPN Output
- Detection Distance: 15m
- Direction angle: min. 2°
- Standard detection objects: diameter of 7mm above opaque objects
- Light source: infrared LED (850nm)
- Power voltage: DC12 ~ 24V ripple (p - p) 10% below (DC10 ~ 30V)
- Power consumption: <40mA (transmitter < 25mA, receiver < 15mA)
- Output mode: NPN; load current < 100mA, load voltage < 30V
- Action mode: Dark ON / Light ON (select through wire connection)
- Indicator: orange for action indication; green for stability indication; green for power indication (only for transmitter)
- Protection circuit: power reverse connection protection, surge absorption, load short-circuit
- Response time: 0.5ms
- Sensitivity adjustment: single turn knob
- Insulation resistance: 20Mohm above (DC500V meg-ohmmeter)
- Voltage resistance: AC1000V 50/60Hz 1min between the charging unit and the shell
- Using environment illuminance:
  Incandescent lamp: < 3000lx
  Sunlight: < 10000lx
- Using environment temperature: -25 ~ 55℃ for working; -25 ~ 70℃ for storage
- Using environment humidity: 35 ~ 85%RH for working; 35 ~ 95%RH for storage
- Anti-vibration: 10 ~ 55Hz dual amplitude 1.5mm X/Y/Z 2h in all directions
- Anti-shock: 300m/s² X/Y/Z 3 times in all directions
- Protection level: IEC standard IP65
- Outer case material: ABS
- Lens/display window material: PMMA
- Knob material: POM
- Cable material: PVC

Using instruction:
- Conventional use: The transmitter and receiver of the opposed photoelectric sensor are installed relative to each other on the same optical axis. When there is an object between them, detect the object based on the change in transmission light and output it.
- Installation instructions: It can be directly installed on the installation hole or bracket.
- Adjustment instructions: Align the transmitter with the receiver and connect both to the power supply. At this point, the green LED should remain permanently on. If the orange LED is also constantly on, it is necessary to check whether the photoelectric switch is on the same optical axis or if there are objects blocking it.
- Object detection: Place the detected object in the emitting beam, so that the light spot falls on the object. If the receiver does not detect an object, the orange LED will light up.
- Maintenance measures: It is recommended that you regularly clean the specular surface and check if the connectors and screws are loose.

Package Included:
- 1 x Photoelectric Sensor
- 4 x M18 Nut
- 1 x User Manual
