Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $56.41 | $55.26 | $53.53 | $51.23 | Contact US |

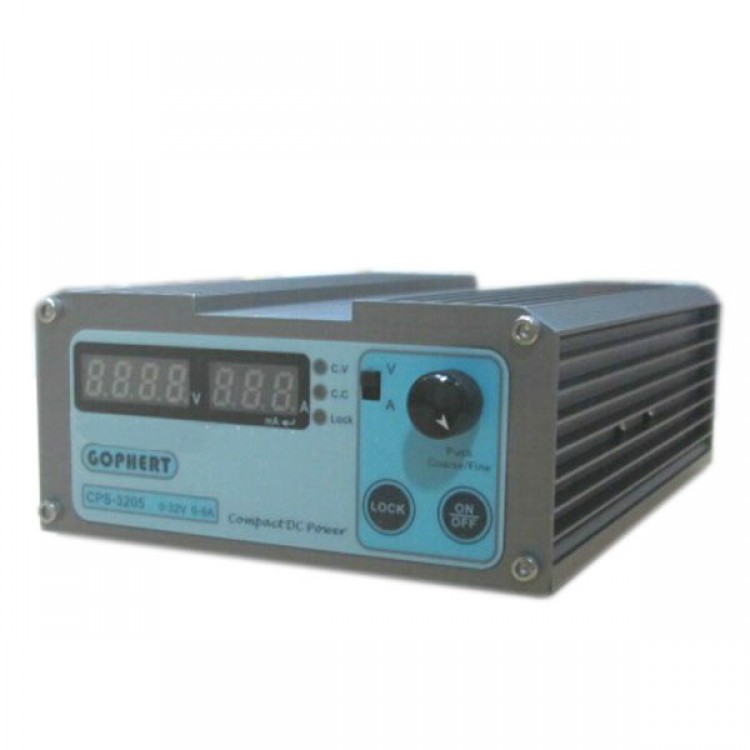

CPS-3205 0-32V 0-5A Portable Adjustable DC Power Supply 110V/220V
Features :
The microprocessor(MCU) control with top cost performance.
High power density, smallest and compact.
Aluminum shell, lower EMI.
Using Encoder to set the voltage and current.
Four digital volt meter and three digital current meter display.
The current meter displays mA automatically when current below 1A.
High efficiency, up to 88%.
Low Ripple & Noise : ≤30 mVp-p.
Output ON/OFF.
Watt switch(compute and display actual output power ).
110VAC / 220VAC power input switchable.
Intelligent protection : Tracking OVP, Tracking OCP, OTP, Output short circuit protection.
High precision and stability, a must have practical tool designed for laboratory, school, production lines and electronic repair work use:)
CE certification : Can download the CE certificate when you need, CLICK HERE >>>>.
Specificaiton :
Model |
CPS-3205 |
Operation Voltage Range |
95-132Vac OR 198 – 264Vac |
Operation Frequency Range |
45 – 65HZ |
Output Voltage Range |
0 – 32V |
Output Current Range |
0 – 5A |
Efficiency (220Vac/full load) |
≥ 87% |
Full Load Input Current(220Vac) |
≤1.4A |
No Load Input Current(220Vac) |
≤ 80mA |
Volt Meter Accuracy |
≤ 0.3% + 1 digits |
Current Meter Accuracy |
≤ 0.3% + 2 digit |
Constant Voltage |
|
Load Regulation (0-100%) |
≤ 30mV |
Line Regulation(198-264Vac) |
≤ 10mV |
Ripple & Noise (Peak-Peak) |
≤ 30mV |
Ripple & Noise (r.m.s) |
≤ 3mV |
Set Accuracy |
≤ 0.3% + 10mV |
Transient Response Time (50%-100% rated Load) |
≤ 1.0ms |
Constant Current |
|
Load Regulation(90%-10% Rated Voltage) |
≤ 50mA |
Line Regulation (198-264Vac) |
≤ 20mA |
Ripple & Noise (Peak-Peak) |
≤ 30mAp-p |
Set Accuracy |
≤ 0.3% + 20mA |
Size(width× height× depth) |
120×55×168mm |
Net Weight |
0.85KG |
