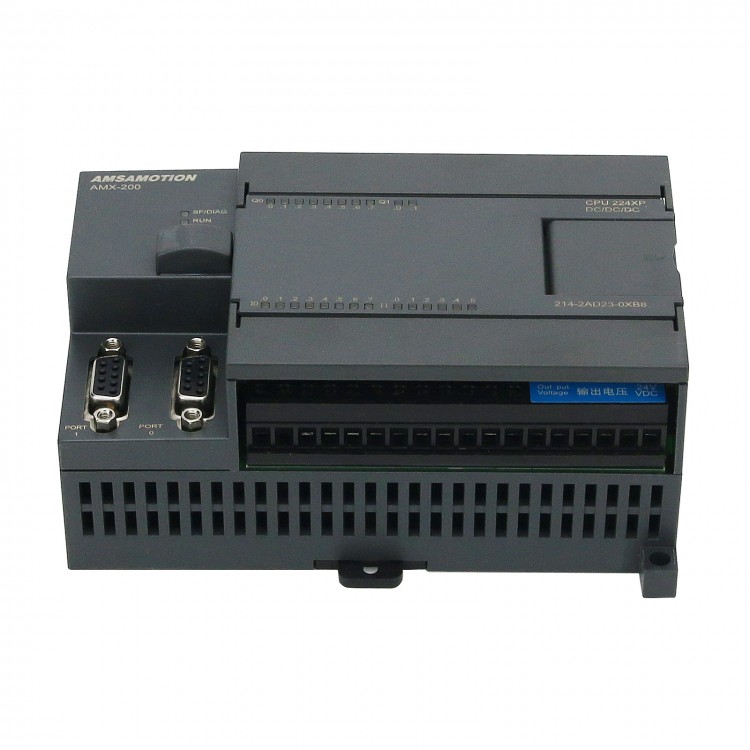

CPU224XP PLC S7-200 Programmable Controller Logic Controller for 214-2AD23-0XB8 24V Transistor Output
Description:
Digital input 14*24V DC, digital output 10*24V DC, analog input 2 output 1 output, 2 RS485 communication ports, 7 expansion modules.
Specification:
Product name: S7-200CN Transistor Output CPU224XPCN AC/DC/DC
Power supply: 24V DC power supply
Power consumption: 5.5W
Rated power supply voltage: DC 18-28V DC voltage
Program memory: 36KB
Data storage: 20KB
Number of expansion modules: 1-7
Digital value expansion: MAX 256DI/DO
Analog quantity expansion: MAX 32A1/16AQ
Data storage time: memory flash, permanent
Total number of counters: 256
Total number of timers: 256
Data space: 10KB
Communication port (DB9): 2*PPI communication ports, RS485
Baud rate: 9.6, 19.2, 1875kbps
Digital value input: 14 channel input
Digital value output: 10 channel output
Analog quantity input: 2
Analog quantity output point: 1
Access way: NPN/PNP
Output type: transistor (DC)/ thyristor (DT)
Digital output rated current per point: 0.75A
Maximum cable length: 500m (shielded)
Pulse capture input: 14
High-speed counter: 6 × 30KHz
Size: 140*80*62mm
Weight: 390g
Package List:
1 x Logic Controller
