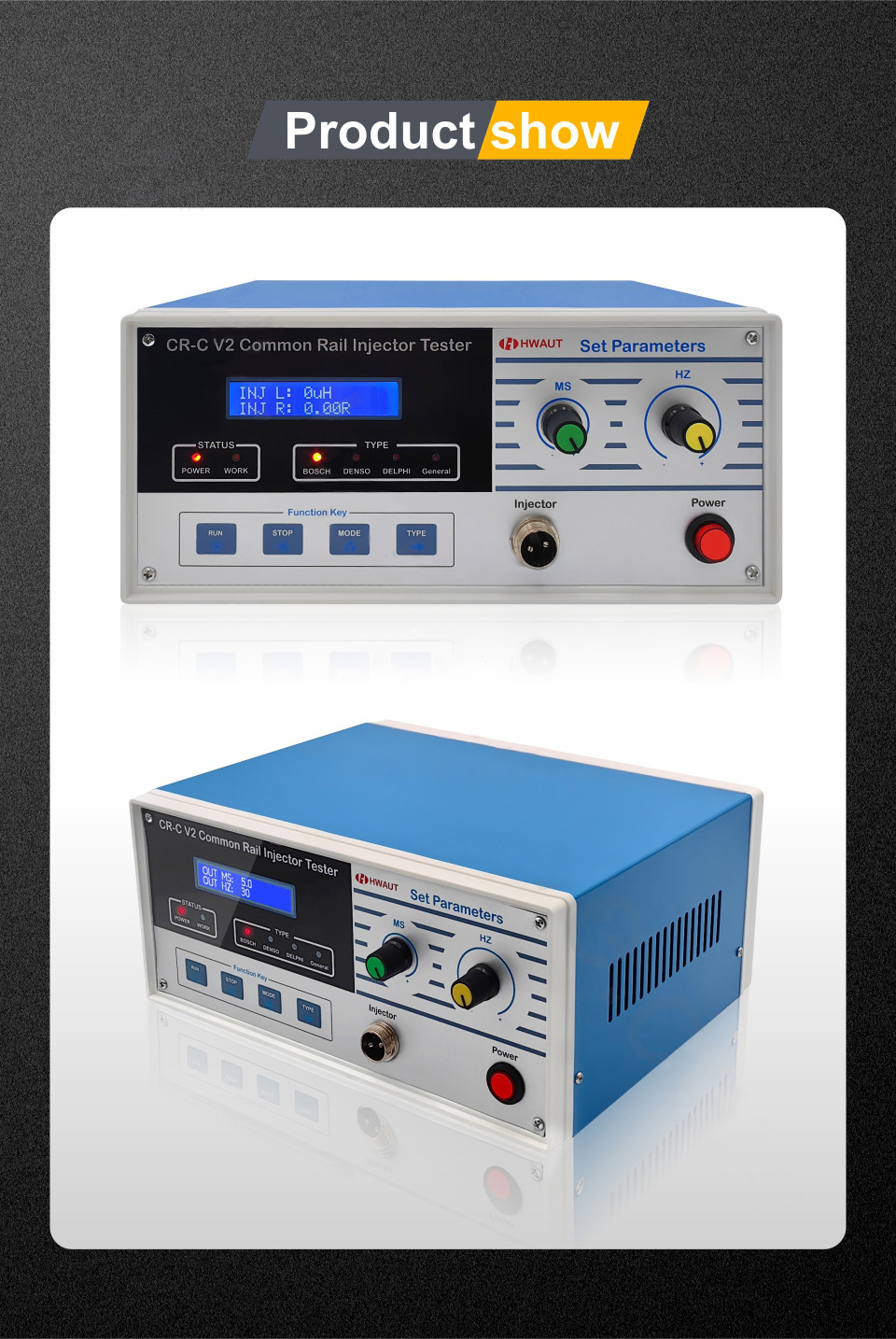

CR-C V2 Multifunctional Common Rail Injector Tester PWM Control for BOSCH/DENSO/DELPHI Common Rail Injectors
Description:
- The CR-C multifunctional common rail injector tester adopts a German imported PWM control chip, which can accurately and effectively simulate the ECU drive signals of the injector under various operating conditions. Conditions such as pre spray, discharge point, full load point, etc. The CR-C common rail injector tester is a simple tool that can be tested using a manual injector pump. It has a small size and light weight, and can meet the requirements of maintenance personnel on a simple testing device.
Specification:
- Model: CR-C V2

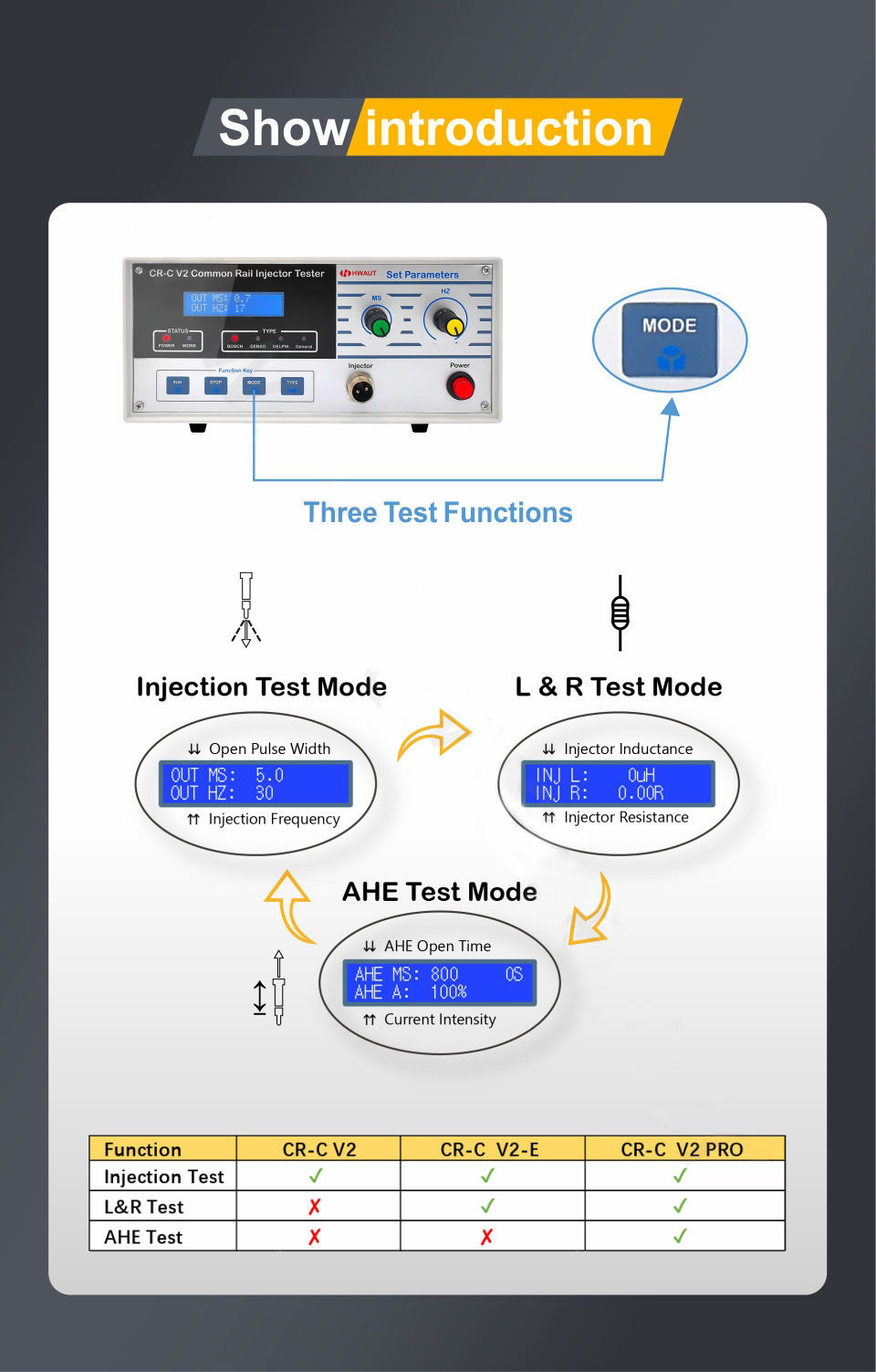

- Test scope: atomization, idle, emission, and full load conditions
- Test injector: for BOSCH, Denso and Delphi common rail injectors
- Power supply: AC110V - 240V
- Operating temperature: -30C°~ 70C°
- Driven frequency: 1 - 30Hz
- Driven pulse width: 100 ~ 10000uS
- Protection: overcurrent and short circuit protection
- Product size: 25 x 19 x 12cm
- Product weight: approximately 1.85kg

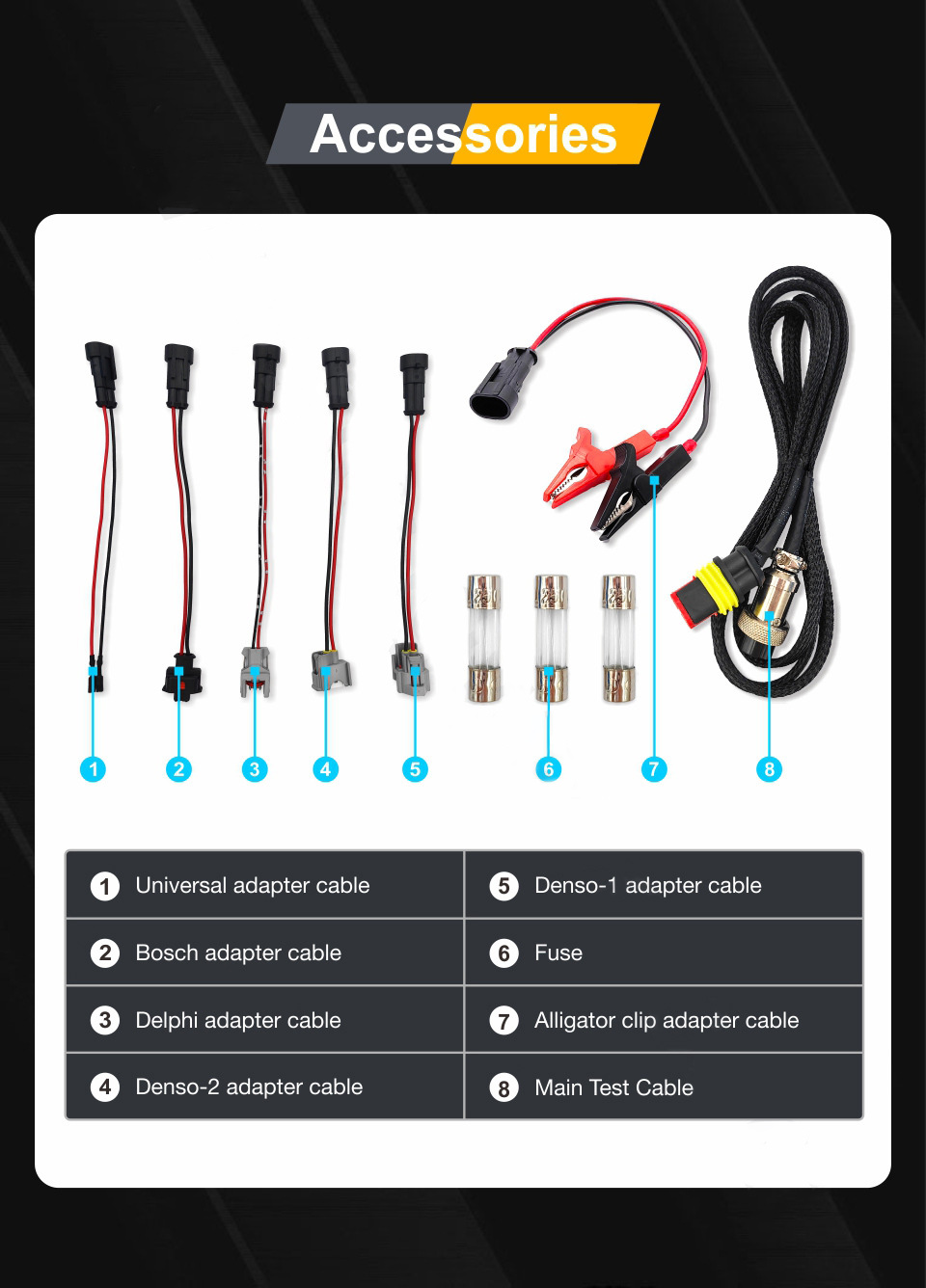

Package Included:
- 1 x Common Rail Injector Tester
- 1 x Testing Cable
- 1 x Connector for BOSCH
- 1 x Connector for Delphi
- 1 x Connector for Denso
- 1 x Cable Clip Connector
- 3 x Fuse
Note:
- This tester is not compatible with Siemens fuel injectors and does not have piezoelectric function.
