| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $4.55 | $4.45 | $4.32 | $4.13 | Contact US |

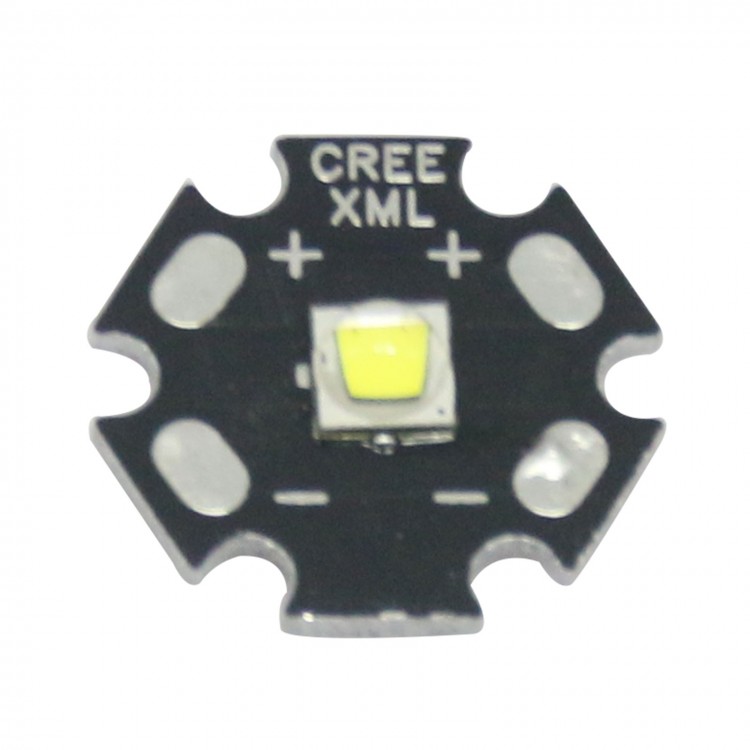

CREE Xlamp XML2 XM-L2 10W WHITE High Power LED Emitter Bulb with 16mm/ 20mm Heatsink
Features:
- Maximam drive current: 3000mA
- Low thermal resistance: 2.5C/W
- Maximum junction temperature: 150C
- Viewing angle: 125'
- ANSI-compatible chromaticity bins
- Unlimited floor life at <30C/85% RH
- Reflow solderable-JEDES J-STD-020C
- Electrically neutral thermal path
Technical Parameters:
- Model Type: Cree XML2-T6
- Emitted Color :White
- Color Temperature: 6000-7000K
- Viewing Angle: 110 Degree
- DC Forward Voltage (VF): 2.9-4Vdc
- DC Forward Current (IF): 3.0A
- Power: 10W
- Low thermal resistance: 2.5°C/W
- Maximum junction temperature: 150°C
- Viewing angle: 125°
- Diameter :16mm
- ANSI-compatible chromaticity bins
- Unlimited floor life at ≤ 30oC/85% RH
- Reflow solderable - JEDEC J-STD-020C
- Electrically neutral thermal path
