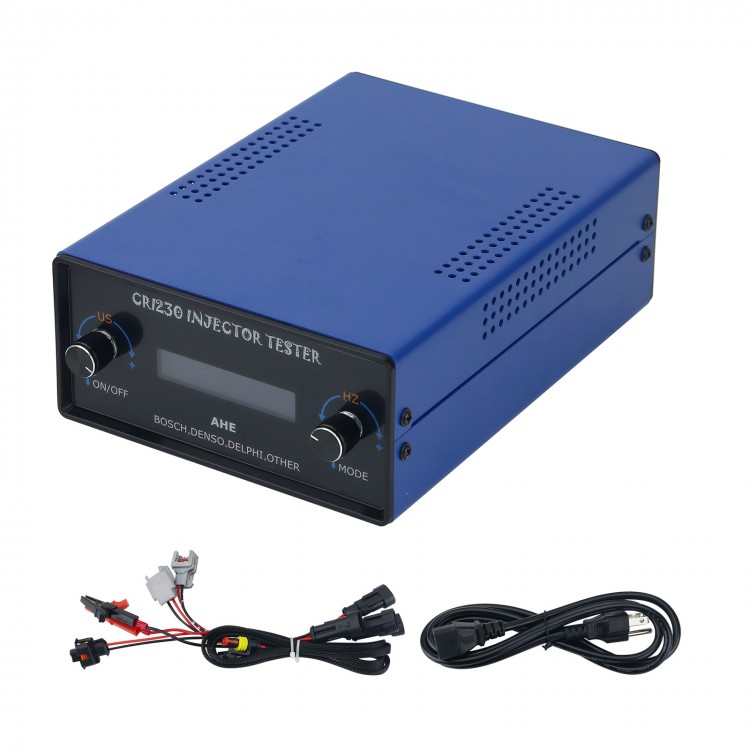

CRI230 High Pressure Rail Injector Detector Desktop Fuel Injector Tester Pulse+Dynamic Testing for BOSCH/DENSO/DELPHI
Description:
- CRI230 high pressure common rail injector tester can drive common rail injectors such as for Bos-ch, for Den-so, for Del-phi, for C-AT, etc. The test conditions can be set by the user according to their actual conditions, which is convenient for maintenance personnel to the high pressure common rail injector. Judgment and maintenance of working conditions under different working conditions.
Features:
- Support testing electromagnetic high-pressure common rail injector and have AHE test function.
Pulse width adjustable range: 0 ~ 6000us
Frequency adjustable range: 1 ~ 30Hz
- With Dynamic AHE function

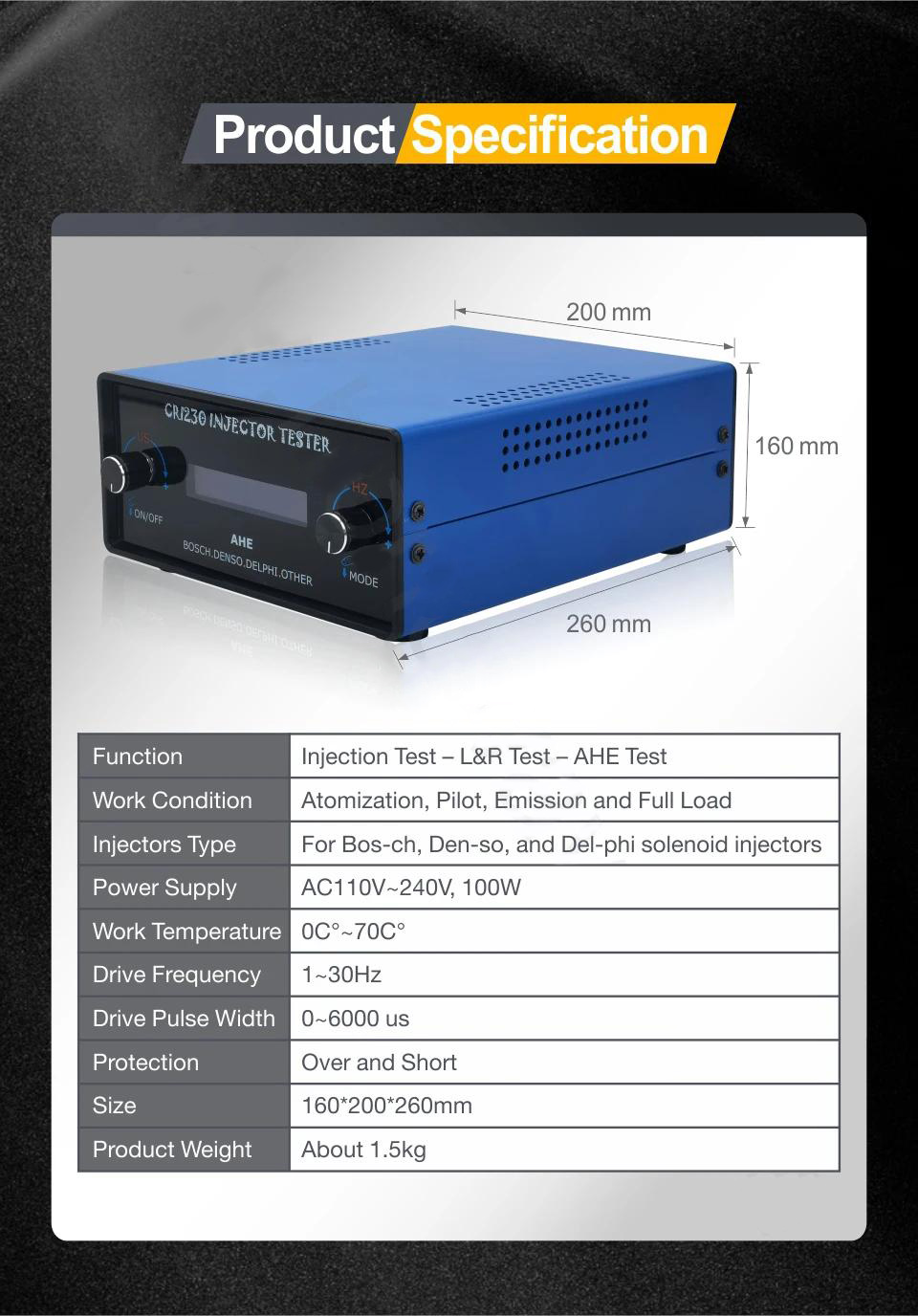

Specification:
- Function: injection test - L&R Test - AHE test
- Work condition: atomization, pilot, emission and full load
- Injectors type: for BOSCH, Denso, and Delphi solenoid injectors
- Power supply: AC110 - 240V, 100W
- Work temperature: 0℃ ~ 70℃
- Drive frequency: 1 - 30Hz
- Drive pulse width: 0 - 6000us
- Protection: over and short
- Product size: 160 x 200 x 260mm
- Product net weight: about 1.5kg
Package Included:
- 1 x Set of CRI230 Tester
