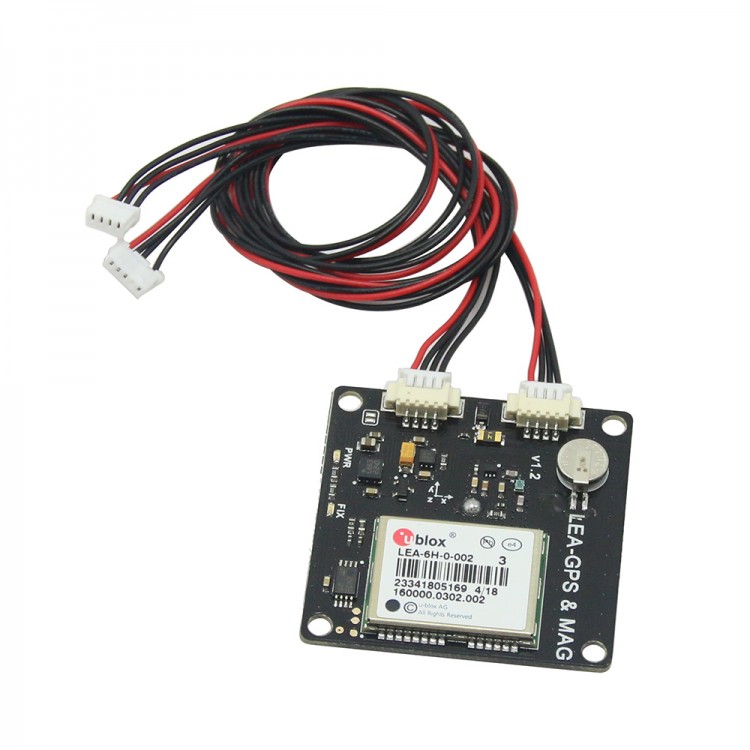

CRIUS LEA-6H GPS & MAG HMC5883L Compass GPS Module for APM 2.5 / 2.5.2 / 2.6 / Pixhawk Flight Controller
Description
- This is the best performance GPS module with HMC5883L compass. It can be mounted away from sources of interference. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts, and I2C EEPROM for configuration storage.The GPS pre-configured for use with APM 2.5 / 2.5.2 / 2.6 / Pixhawk and include cable for APM.
Features:
- u-blox LEA-6H GPS module
- 5Hz update rate
- 32k I2C EEPROM for save configuration
- Build in 25 x 25 x 4mm ceramic patch antenna
- LNA and SAW chip
- 3.3V LDO low noise regulator
- UART (TTL) port with EMI protection
- 3V lithium Rechargeable battery
- Power and fix indicator LEDs
- Reverse polarity protection for input power
Default parameter
- UBX protocol
- Baud rate : 38400
- Nav rate : 4Hz
- TIMEPULSE (fix LED) rate : 1Hz
Other
- Dimension: 40 x 40 x 9mm
- Weight: 17g/20g (include cable)
- Hole diameter: 3.1mm
